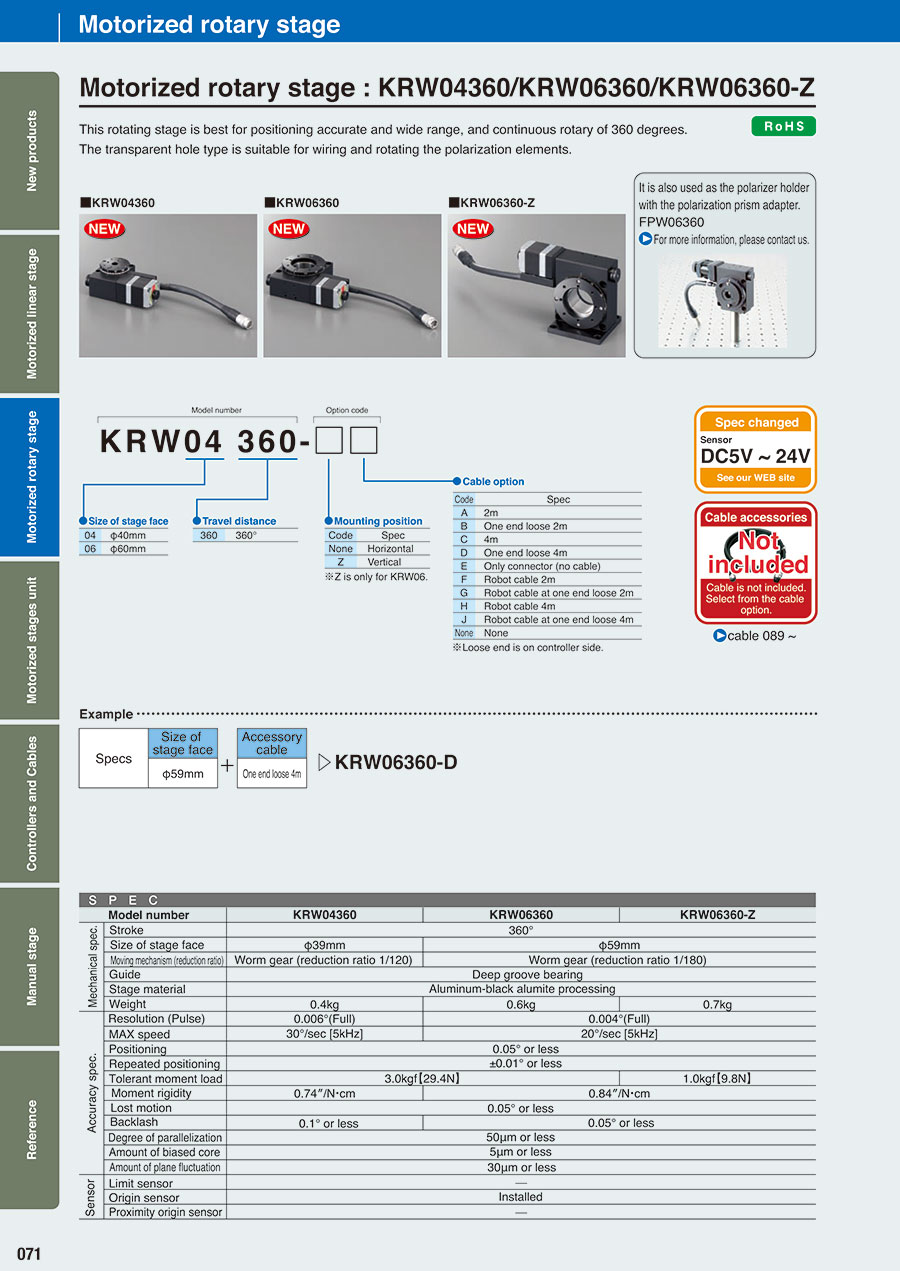

Worm Gear Rotary Stage [KRW/KRE Series]

Worm Gear Rotary Stage [KRW/KRE Series]

Rotating stage ideal for precise positioning in a wide-angle range or continuous 360° rotation. *CAD data for this series is being modified. Data will be made available as soon as modifications are complete.
KRE series: Specialized for only the necessary functionality, helping keep costs down.


(i)Remark

  • Images are representational product images.

PDF

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

・Please click here to download the product manual

Part Number
KRW04360
KRW04360-[A,​B,​C,​D,​E,​F,​G,​H,​J]
KRW06360C
KRW06360C-[A,​B,​C,​D,​E,​F,​G,​H,​J]
KRW06360C-Z
KRW06360C-Z[A,​B,​C,​D,​E,​F,​G,​H,​J]
Part NumberStandard Unit PriceVolume DiscountShipping Days?RoHSMin. Voltage Resolution (Angle)
(deg)
Thickness H of stage surface
(mm)
Table size and diameter
(φ)
Load Resistance
(N)
Parallelism
(μm)
Moment Rigidity (Pitching), In the case of a single axis
("/N·cm)
Mount Cable Option Cable Options

-

9 Days 100.006353929.4500.74Horizontal2 m-

-

9 Days 100.006353929.4500.74Horizontal2 m One Side, Loose / Robot Cable 2 m / Robot Cable 2 m One End Loose Wire / 4 m One Side, Loose / 4M / Robot Cable 4 m / Robot Cable 4 m One End Loose Wire / Connector Only / NA-

-

9 Days 100.004355929.4500.84HorizontalRobot Cable 4 m One End Loose Wire-

-

9 Days 100.004355929.4500.84Horizontal2 m / 2 m One Side, Loose / Robot Cable 2 m / Robot Cable 2 m One End Loose Wire / 4 m One Side, Loose / 4M / Robot Cable 4 m / Connector Only / NA-

-

9 Days 100.004-599.8500.84Vertical-2 m

-

9 Days 100.004-599.8500.84Vertical-2 m One-End Loose Type / Robot Cable 2 m / Robot Cable 2 m One-End Loose / 4 m / 4 m One-End Loose Type / Robot Cable 4 m / Robot Cable 4 m One-End Loose / Connector Only / Not Provided

Loading...

  1. 1

Basic information

Type Rotary Stage Motor/Pulley Characteristics 5-Phase Stepping Motor Standard Table materials Aluminum
Moving Guide Deep Groove Ball Bearing Feeding Method Worm Gear Movement Amount of Rotary Stages(deg) 360
Table surface finishes Black Anodized Aluminum Through transmission Hole Available Load Capacity (Range)(N) 5–30
Sensor Home
