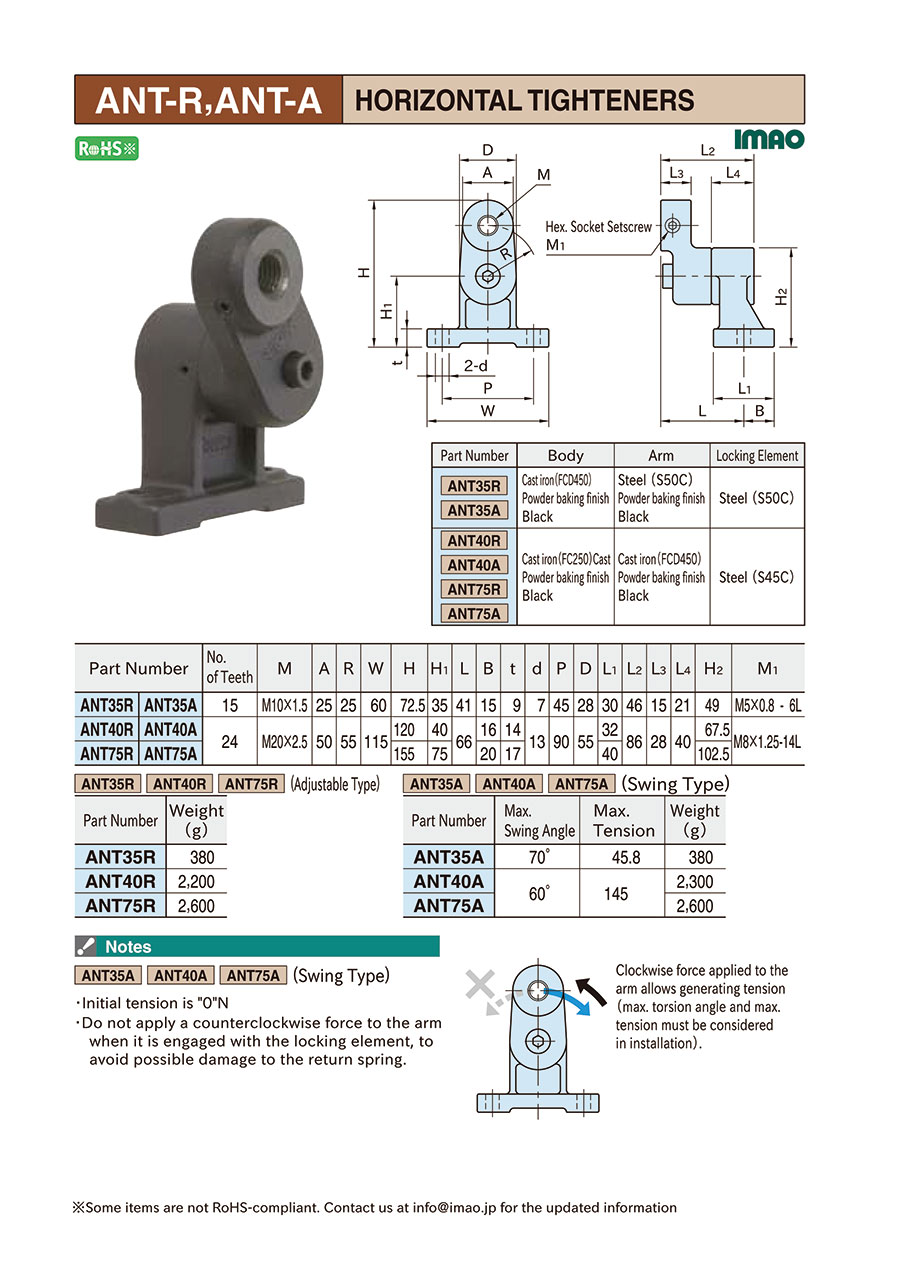

Angle Tightener, (Rotary Type, Auto-Tension Type) (ANT-R,-A)
- Volume Discount
Original position of arm can be adjusted with serration. The arm of the auto tension type rotates automatically to adjust tension strength.
[Features]
· Arm position can be adjusted with serration
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
|---|
| ANT35A |
| ANT35R |
| ANT40A |
| ANT40R |
| ANT75A |
| ANT75R |
| Part Number | Standard Unit Price | Volume Discount | Shipping Days? | RoHS | Specifications | M | H1 (mm) |
|---|---|---|---|---|---|---|---|
79.44 € | Available |
Same day
Stock | 10 | Auto tension type | M10 x 1.5 | 35 | |
71.34 € | 6 Days | 10 | Rotation Type | M10 x 1.5 | 35 | ||
92.08 € | 6 Days | - | Auto tension type | M20×2.5 | 40 | ||
102.80 € | 6 Days | 10 | Rotation Type | M20×2.5 | 40 | ||
93.98 € | 6 Days | - | Auto tension type | M20×2.5 | 75 | ||
106.11 € | 33 Days | 10 | Rotation Type | M20×2.5 | 75 |
Loading...
Configure
Stock
-
- Show only stock items
Narrow search by specifying spec./dim.
-
Specifications
- Auto tension type
- Rotation Type
-
M
- M10 x 1.5
- M20×2.5
-
H1(mm)
- 35
- 40
- 75
-
Type
- ANT-R,-A
-
CAD
- 2D
- 3D
Narrow search by specifying lead time
-
- All
- Same day
- 6 Days or Less
- 33 Days or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
