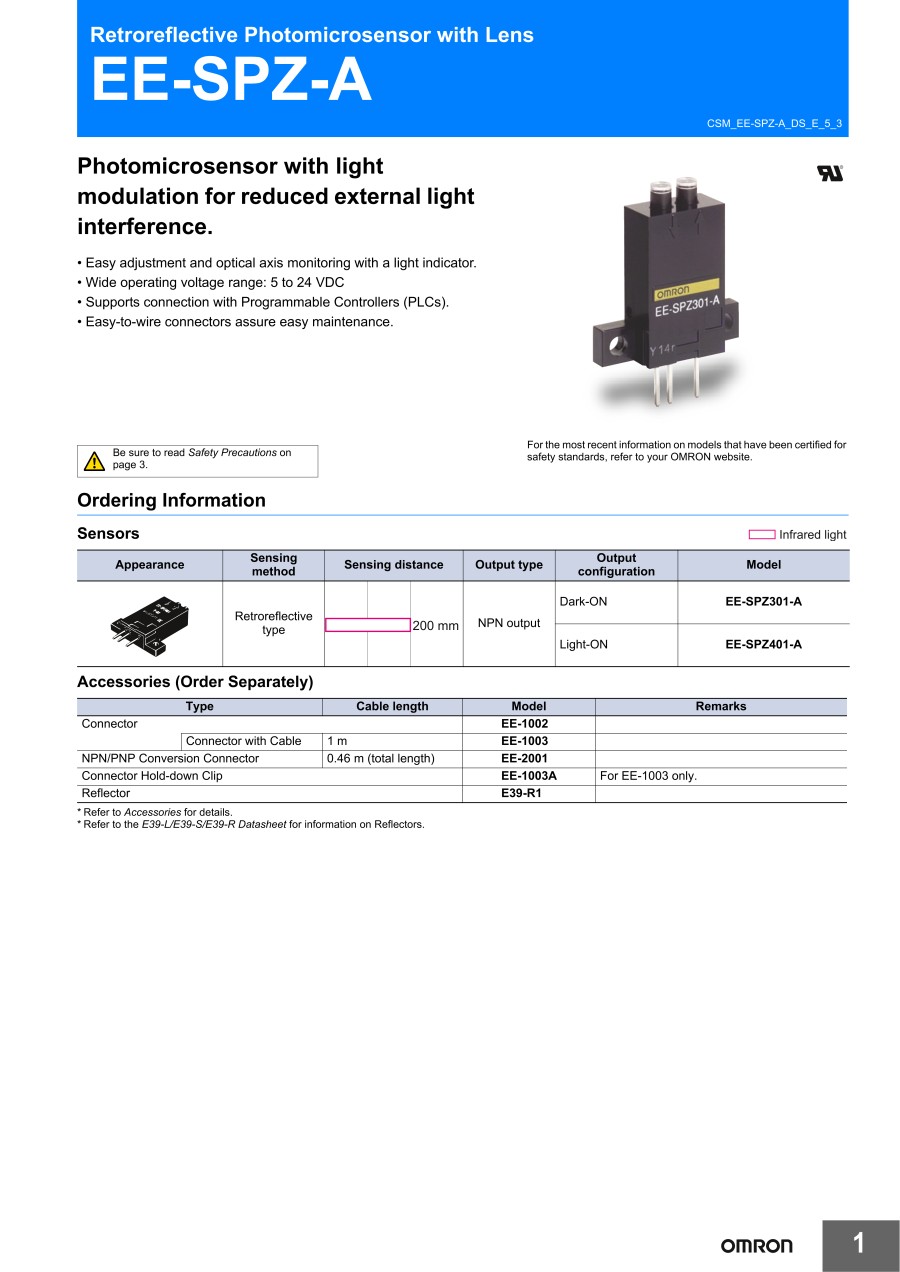

Retro-Reflective Photo with Lens/ Micro Sensor [EE-SPZ-A]

Retro-Reflective Photo with Lens/ Micro Sensor [EE-SPZ-A]

Product Details:

Manufacturer part number: EE-SPZ401-A

Brand: OMRON

Price: 40.80

Delivery time: 6 Days

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

EE-SPZ401-A

Part Number
EE-SPZ401-A
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?

40.80 €

1 6 Days

Loading...

  1. 1

Basic information

Shape Optical fiber type Detection Distance(mm) 200 Head maximum width(mm) 26
Head maximum height(mm) 26 Head maximum, depth(mm) 7.4 Detection Method Retro-reflective type
Luminescence Method Modulated light (infrared light) Operating Mode Light Seen - ON Output Format NPN voltage output
Connection Method Connector type (soldering not possible) Indicator Light Mode Illuminated light (red) Slit hole/width(mm) -
Cord/cable specification - Cord/cable length(mm) - Groove depth(mm) -
Protective Structure IP50 Mounting format - Between amplifiers(mm) -
Applicable Pipe(φ) - Details Type -

This page is Retro-Reflective Photo with Lens/ Micro Sensor [EE-SPZ-A], part number EE-SPZ401-A.
You can find the detail information about specifications and dimensions on part number EE-SPZ401-A.
