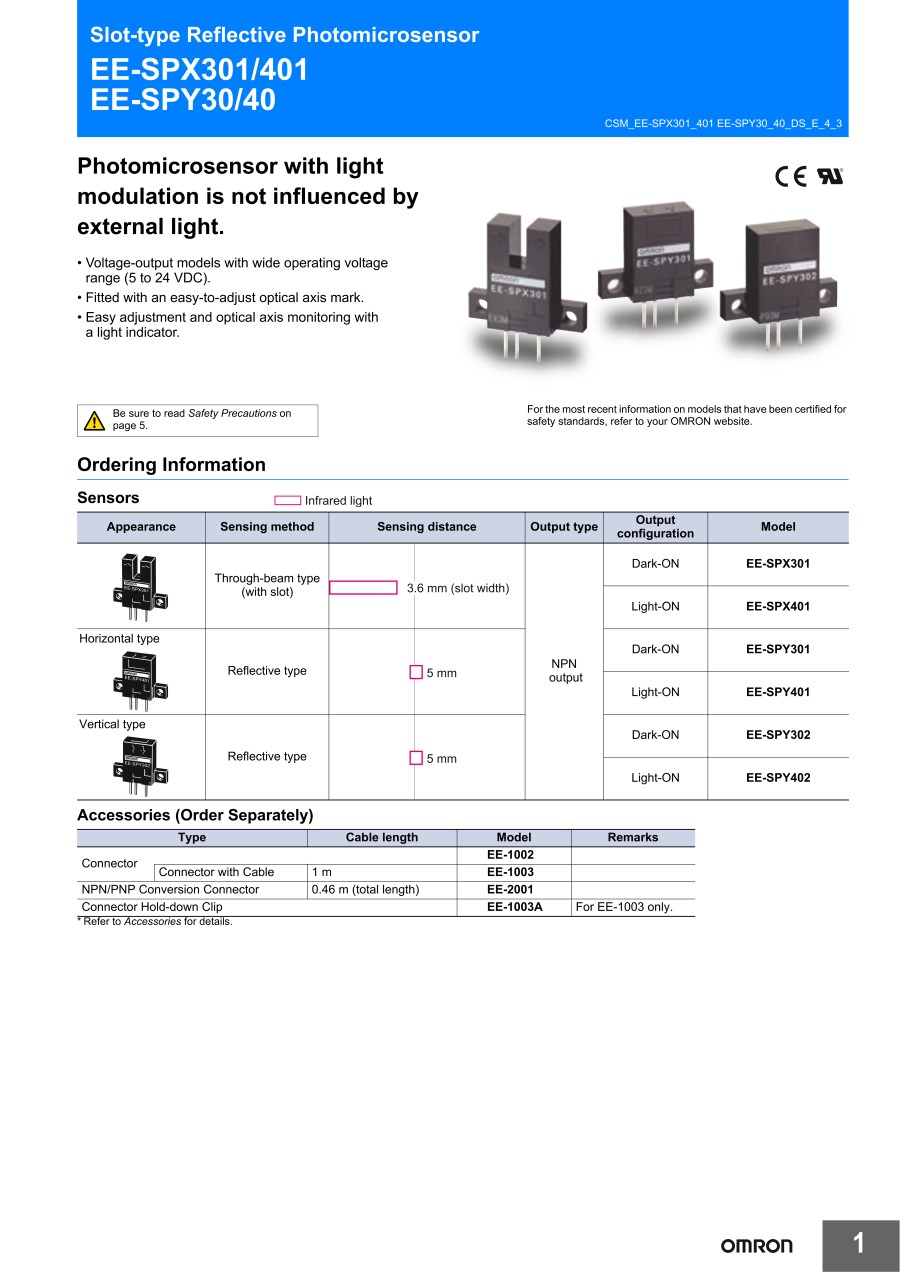

Low Profile / Reflective Connector Type Photo/Macro Sensor [EE-SPX□, EE-SPY□]
![Low Profile / Reflective Connector Type Photo/Macro Sensor [EE-SPX□, EE-SPY□]](http://uk.misumi-ec.com/linked/material/mech/OMR1/PHOTO/OMR1_221000419920.jpg?$product_main$)
Modulated light type strong against ambient disturbance light
[Features]
· Power supply voltage is DC5 to 24V wide range voltage output type.
· Easy to adjust optical axis marking.
· Adjustment, convenient for operation check with a light incident indicator light.
[Features]
· Power supply voltage is DC5 to 24V wide range voltage output type.
· Easy to adjust optical axis marking.
· Adjustment, convenient for operation check with a light incident indicator light.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Shape | Portrait Type | Detection Distance(mm) | 5 | Head maximum width(mm) | 26 |
|---|---|---|---|---|---|
| Head maximum height(mm) | 7 | Head maximum, depth(mm) | 20 | Detection Method | Diffused reflective shape |
| Luminescence Method | Modulated light (infrared light) | Output Format | NPN voltage output | Connection Method | Connector type (soldering not possible) |
| Indicator Light Mode | Illuminated light (red) | Slit hole/width(mm) | - | Standard Detected Subject(mm) | - |
| Cord/cable specification | - | Cord/cable length(mm) | - | Groove depth(mm) | - |
| Protective Structure | IP50 | Mounting format | - | Between amplifiers(mm) | - |
| Applicable Pipe(φ) | - | Details Type | - |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
