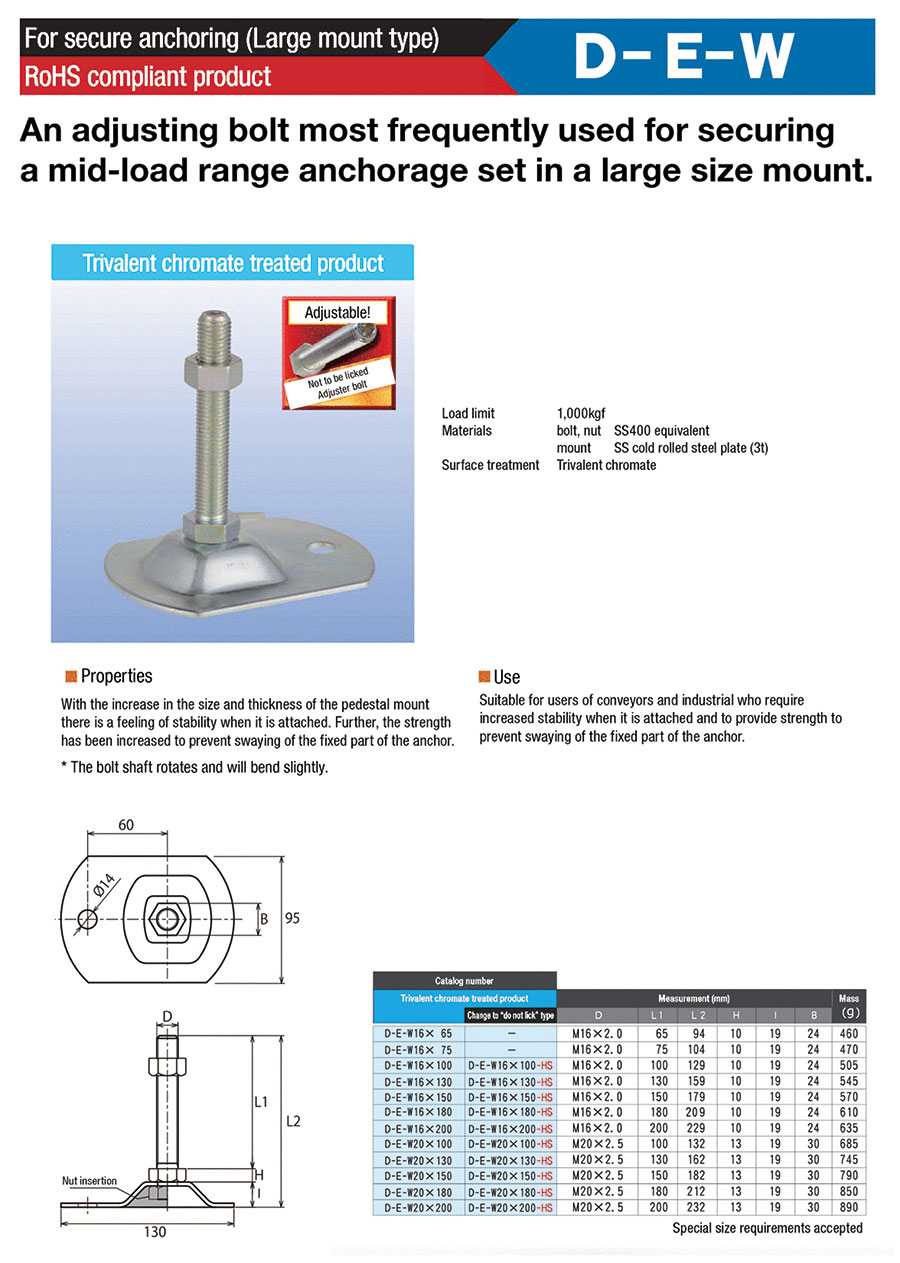

Adjuster for Anchor Fixing (Large Pedestal Type) D-E-W

Adjuster for Anchor Fixing (Large Pedestal Type) D-E-W
  • Volume Discount
A medium load type adjuster for anchor fixing in which the base is wide and stable

[Features]
· By increasing the size and thickness of the pedestal part, the stability after installation and the resistance horizontal shaking of the anchor fixing part have been improved.
· Note: The screw shaft tilts somewhat

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
D-E-W16X130
D-E-W16X150
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSThread Length L1
(mm)

19.79 €

1 Available 15 Days 10130

20.87 €

1 Available 15 Days 10150

Loading...

  1. 1

Basic information

Type Adjusting Bolt Shape Adjusting Bolt Shape Type Fixed Type Height Adjusting Handle NA
Screw Material EN 1.0038 Equiv. Surface Treatment of Thread Trivalent Chromate Catch Plate SS Cold Rolled Steel Plate
Surface Treatment Trivalent Chromate Load Resistance(kN) 9.8 Main Body Height l(mm) 19
Thread Nominal M(mm) 16 Properties Standard Swivel Mechanism NA
Adjusting for Hex Socket "No Licking" NA
