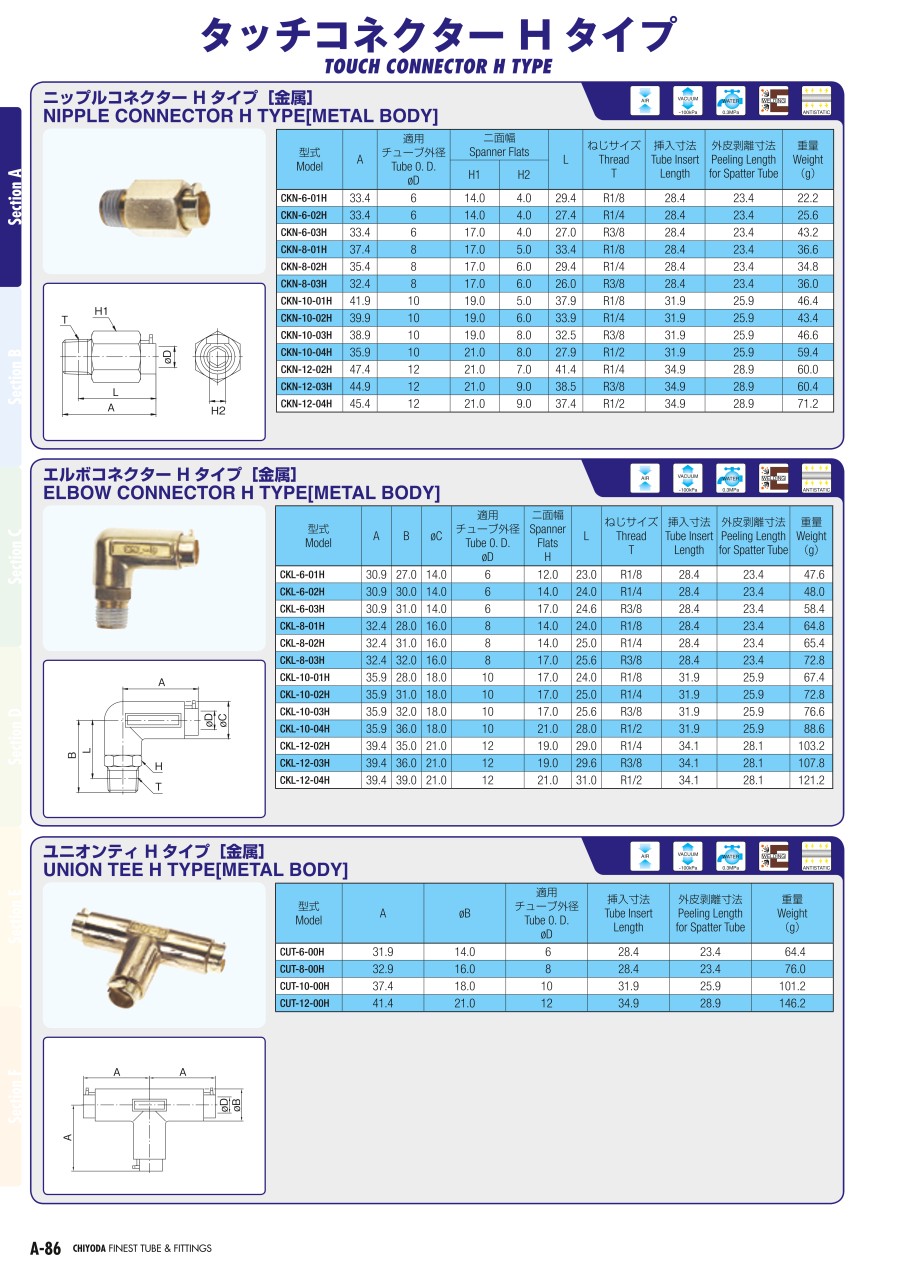

Touch Connector H Type Nipple Connector

Touch Connector H Type Nipple Connector

One-touch fitting featuring high drawing strength and durability. Metal nipple connector.

[Features]
· By adopting the use of a special lock ring, the highest level of pull-out strength and durability is provided for one touch fittings.
· O-ring is switched to Viton packing, so that it can be used in high temperature applications (it is best suited for P flexible piping;make sure that you install an OF at the end, such as the CKN-6-01-H-OF).
· To insert a multi-layer tube, remove the outer layer and attach the one-touch coupling.
· The life of the tube is increased significantly if a standard metal cap is fitted to prevent exposure of the inner tube.
· All-metal types have excellent strength under tough conditions.
· Screw element sealing (R screw): Can be used for piping as-is due to screw element sealing.
· The body and screw elements of elbows and branch tees can rotate.
· *Not a rotary type.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
CKN-6-01H
CKN-6-02H
CKN-6-03H
CKN-8-01H
CKN-8-02H
CKN-8-03H
CKN-10-01H
CKN-10-02H
CKN-10-03H
CKN-10-04H
CKN-12-02H
CKN-12-03H
CKN-12-04H
Part NumberStandard Unit PriceVolume DiscountShipping Days?Operating Temperature
(°C)
Applicable Tube O.D.1
(φ)
Thread Size T

4.48 €

3 Days -5~606R1/8

4.50 €

3 Days -5~606R1/4

5.27 €

3 Days -5~606R3/8

5.22 €

3 Days -5~608R1/8

5.07 €

6 Days -5~608R1/4

5.22 €

3 Days -5~608R3/8

6.05 €

3 Days -5~6010R1/8

6.03 €

3 Days -5~6010R1/4

6.06 €

3 Days -5~6010R3/8

6.46 €

3 Days -5~6010R1/2

6.90 €

3 Days -5~6012R1/4

6.90 €

3 Days -5~6012R3/8

7.41 €

3 Days -5~6012R1/2

Loading...

  1. 1

Basic information

Type Touch Connectors Fitting Type Screw Mount Applicable Fluid Industrial water / Compressed Air (Including Vacuum)
Body Material Brass Application Standard/Mini Thread Material EN CW614N Equiv. (Brass)
Seal Material NBR (Nitrile Rubber) Screw Mount Connection Straight Other Shapes Nipple Connector H Type
