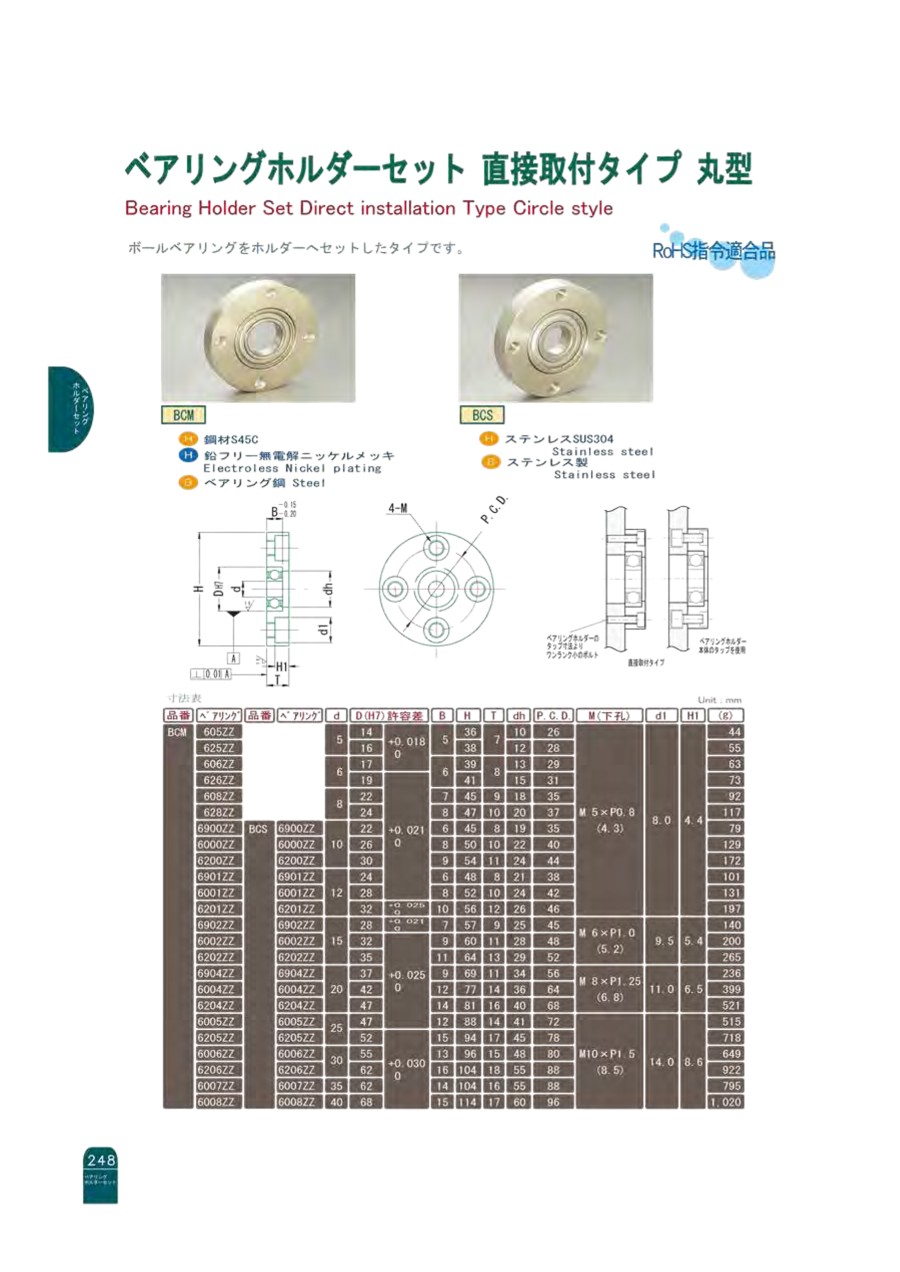

Bearing housings / round flange / counterbore, internal thread / deep groove ball bearing / steel / nickel-plated / BCM
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Bearing I.D. d (mm) | Width (mm) | Outer diameter or external shape H | |
|---|---|---|---|---|---|---|---|---|
24.96 € | 1 | 6 Days | 10 | 10 | 10 | 50 | ||
24.05 € | 1 |
Same day
Stock | 10 | 12 | 10 | 52 | ||
25.62 € | 1 |
Same day
Stock | 10 | 15 | 11 | 60 | ||
35.98 € | 1 | 6 Days | 10 | 20 | 14 | 77 | ||
33.17 € | 1 |
Same day
Stock | 10 | 25 | 14 | 88 | ||
43.22 € | 1 | 6 Days | 10 | 30 | 15 | 96 | ||
51.03 € | 1 | 6 Days | 10 | 35 | 16 | 104 | ||
60.38 € | 1 | 6 Days | 10 | 40 | 17 | 114 | ||
20.48 € | 1 | 6 Days | 10 | 5 | 7 | 36 | ||
21.96 € | 1 | 6 Days | 10 | 6 | 8 | 39 | ||
21.48 € | 1 |
Same day
Stock | 10 | 8 | 9 | 45 | ||
26.24 € | 1 | 6 Days | 10 | 10 | 11 | 54 | ||
27.39 € | 1 | 6 Days | 10 | 12 | 12 | 56 | ||
30.19 € | 1 | 6 Days | 10 | 15 | 13 | 64 | ||
36.03 € | 1 | 6 Days | 10 | 20 | 16 | 81 | ||
37.97 € | 1 | 6 Days | 10 | 25 | 17 | 94 | ||
46.02 € | 1 | 6 Days | 10 | 30 | 18 | 104 | ||
20.57 € | 1 | 6 Days | 10 | 5 | 7 | 38 | ||
23.09 € | 1 | 6 Days | 10 | 6 | 8 | 41 | ||
22.28 € | 1 |
Same day
Stock | 10 | 8 | 10 | 47 | ||
29.38 € | 1 | 6 Days | 10 | 10 | 8 | 45 | ||
30.27 € | 1 |
Same day
Stock | 10 | 12 | 8 | 48 | ||
32.06 € | 1 | 6 Days | 10 | 15 | 9 | 57 | ||
33.34 € | 1 | Available |
Same day
Stock | 10 | 20 | 11 | 69 |
Loading...
Basic information
| Main Body Shape | Flange Shape | Bearing Type | Deep Groove Ball Bearing | Bearing material | Bearing steel |
|---|---|---|---|---|---|
| Bearing number | Single | Main Body Material | EN 1.1191 Equiv. | Flange Shape | Round Type |
| Retaining Ring | NA | Type | Bearing holder set | Surface Treatment | Lead-free Electroless Nickel Plating |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Bearing I.D. d(mm)
-
Width(mm)
-
Outer diameter or external shape H
-
Type
- BCM
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- Same day
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
