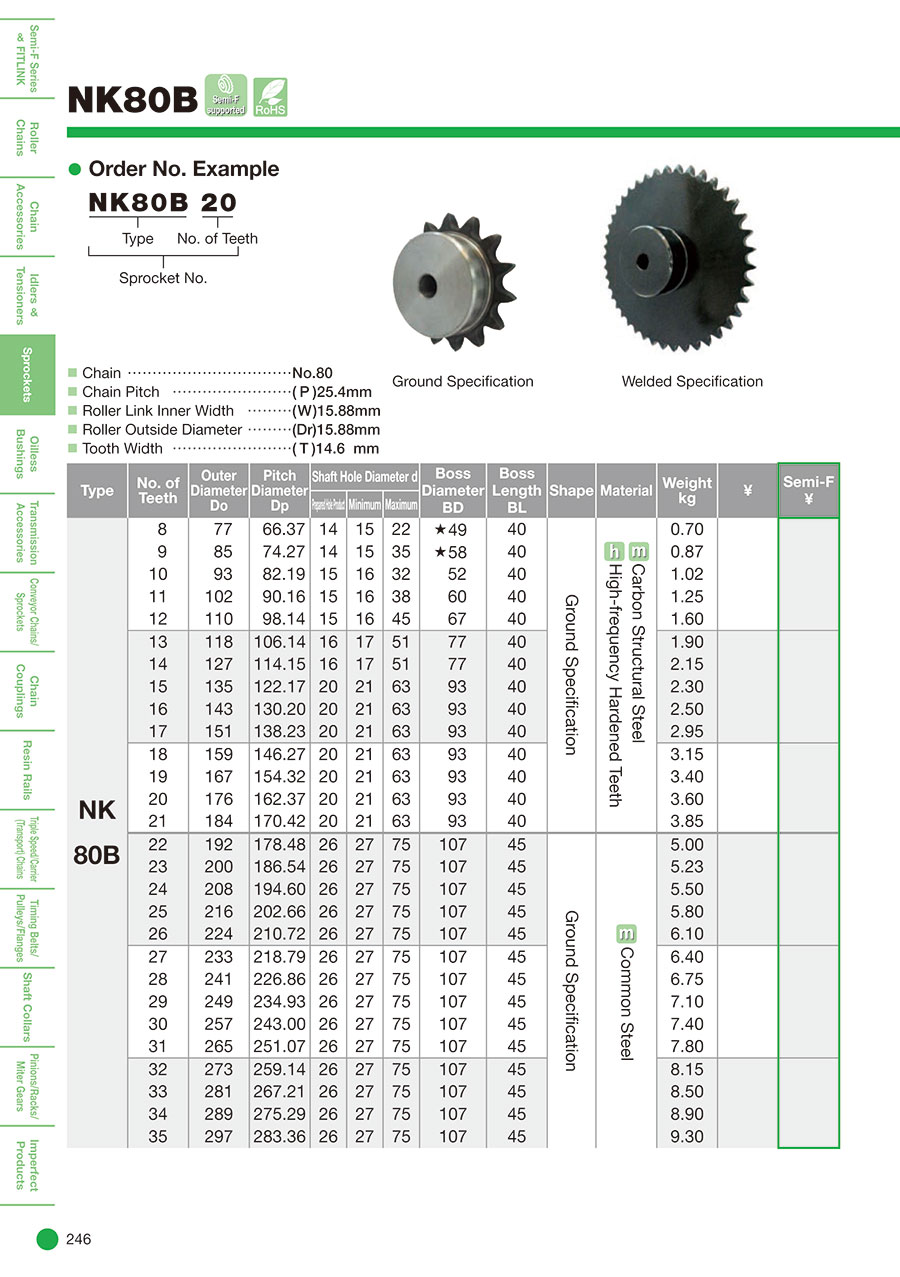

Sprocket, Standard Sprocket, Model 80B
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Number of Teeth (T) | Number of Tracks | Shaft Hole Dia. d (mm) | Maximum Shaft Hole Dia. (mm) | Minimum Shaft Bore Diameter (mm) | |
|---|---|---|---|---|---|---|---|---|---|
59.82 € | 1 | 11 Days | 10 | 2 | 20 | 35 | 21 | ||
19.93 € | 1 | 11 Days | 8 | 1 | 14 | 22 | 15 | ||
20.46 € | 1 | 6 Days | 9 | 1 | 14 | 35 | 15 | ||
20.84 € | 1 | 6 Days | 10 | 1 | 15 | 32 | 16 | ||
25.49 € | 1 | 6 Days | 11 | 1 | 15 | 38 | 16 | ||
29.57 € | 1 | 11 Days | 12 | 1 | 15 | 45 | 16 | ||
33.27 € | 1 | 6 Days | 13 | 1 | 16 | 51 | 17 | ||
37.33 € | 1 | 6 Days | 14 | 1 | 16 | 51 | 17 | ||
42.87 € | 1 | 6 Days | 15 | 1 | 20 | 63 | 21 | ||
46.58 € | 1 | 6 Days | 16 | 1 | 20 | 63 | 21 | ||
53.61 € | 1 | 6 Days | 17 | 1 | 20 | 63 | 21 | ||
63.59 € | 1 | 6 Days | 20 | 1 | 20 | 63 | 21 | ||
68.39 € | 1 | 6 Days | 21 | 1 | 20 | 63 | 21 | ||
92.42 € | 1 | 6 Days | 22 | 1 | 26 | 75 | 27 | ||
93.77 € | 1 | 10 Days | 23 | 1 | 26 | 75 | 27 | ||
102.77 € | 1 | 6 Days | 24 | 1 | 26 | 75 | 27 | ||
107.21 € | 1 | 6 Days | 25 | 1 | 26 | 75 | 27 | ||
116.81 € | 1 | 6 Days | 26 | 1 | 26 | 75 | 27 | ||
127.53 € | 1 | 6 Days | 28 | 1 | 26 | 75 | 27 | ||
138.25 € | 1 | 11 Days | 29 | 1 | 26 | 75 | 27 | ||
152.29 € | 1 | 11 Days | 31 | 1 | 26 | 75 | 27 | ||
156.36 € | 1 | 6 Days | 32 | 1 | 26 | 75 | 27 | ||
166.34 € | 1 | 11 Days | 33 | 1 | 26 | 75 | 27 | ||
170.04 € | 1 | 11 Days | 34 | 1 | 26 | 75 | 27 | ||
177.44 € | 1 | 6 Days | 35 | 1 | 26 | 75 | 27 | ||
199.63 € | 1 | 11 Days | 36 | 1 | 26 | 80 | 27 | ||
175.03 € | 1 | 11 Days | 37 | 1 | 26 | 80 | 27 | ||
156.49 € | 1 | 6 Days | 38 | 1 | 26 | 80 | 27 | ||
191.54 € | 1 | 11 Days | 39 | 1 | 26 | 80 | 27 | ||
167.86 € | 1 | 6 Days | 40 | 1 | 26 | 80 | 27 | ||
203.94 € | 1 | 11 Days | 41 | 1 | 26 | 80 | 27 | ||
184.38 € | 1 | 11 Days | 42 | 1 | 26 | 80 | 27 | ||
231.28 € | 1 | 11 Days | 43 | 1 | 26 | 80 | 27 | ||
199.89 € | 1 | 11 Days | 45 | 1 | 26 | 80 | 27 | ||
247.81 € | 1 | 11 Days | 46 | 1 | 26 | 80 | 27 | ||
260.71 € | 1 | 11 Days | 47 | 1 | 26 | 80 | 27 | ||
221.56 € | 1 | 6 Days | 48 | 1 | 26 | 80 | 27 | ||
238.89 € | 1 | 6 Days | 50 | 1 | 26 | 80 | 27 | ||
321.60 € | 1 | 11 Days | 52 | 1 | 26 | 80 | 27 | ||
332.44 € | 1 | 11 Days | 53 | 1 | 26 | 80 | 27 | ||
272.20 € | 1 | 8 Days | 54 | 1 | 26 | 80 | 27 | ||
356.19 € | 1 | 8 Days | 55 | 1 | 26 | 80 | 27 | ||
368.57 € | 1 | 8 Days | 56 | 1 | 26 | 80 | 27 | ||
392.05 € | 1 | 8 Days | 58 | 1 | 26 | 80 | 27 | ||
400.03 € | 1 | 8 Days | 59 | 1 | 26 | 80 | 27 | ||
351.64 € | 1 | 8 Days | 60 | 1 | 26 | 80 | 27 | ||
429.65 € | 1 | 8 Days | 65 | 1 | 26 | 89 | 27 | ||
479.20 € | 1 | 8 Days | 70 | 1 | 26 | 89 | 27 | ||
559.20 € | 1 | 8 Days | 75 | 1 | 26 | 89 | 27 | ||
764.46 € | 1 | 8 Days | 80 | 1 | 26 | 95 | 27 | ||
950.78 € | 1 | 8 Days | 90 | 1 | 26 | 95 | 27 |
Loading...
Basic information
| Sprocket Shape | B Type | Chain No. | 80 | Type | Pilot Holes Types |
|---|---|---|---|---|---|
| Material | Steel | Chain Type | Standard | Shaft Type | Standard Pilot Holes |
Configure
Basic Attributes
-
Number of Teeth(T)
-
Number of Tracks
- 1
- 2
-
Shaft Hole Dia. d(mm)
-
Maximum Shaft Hole Dia.(mm)
-
Minimum Shaft Bore Diameter(mm)
-
Type
- 80B
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 6 Days or Less
- 8 Days or Less
- 10 Days or Less
- 11 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
