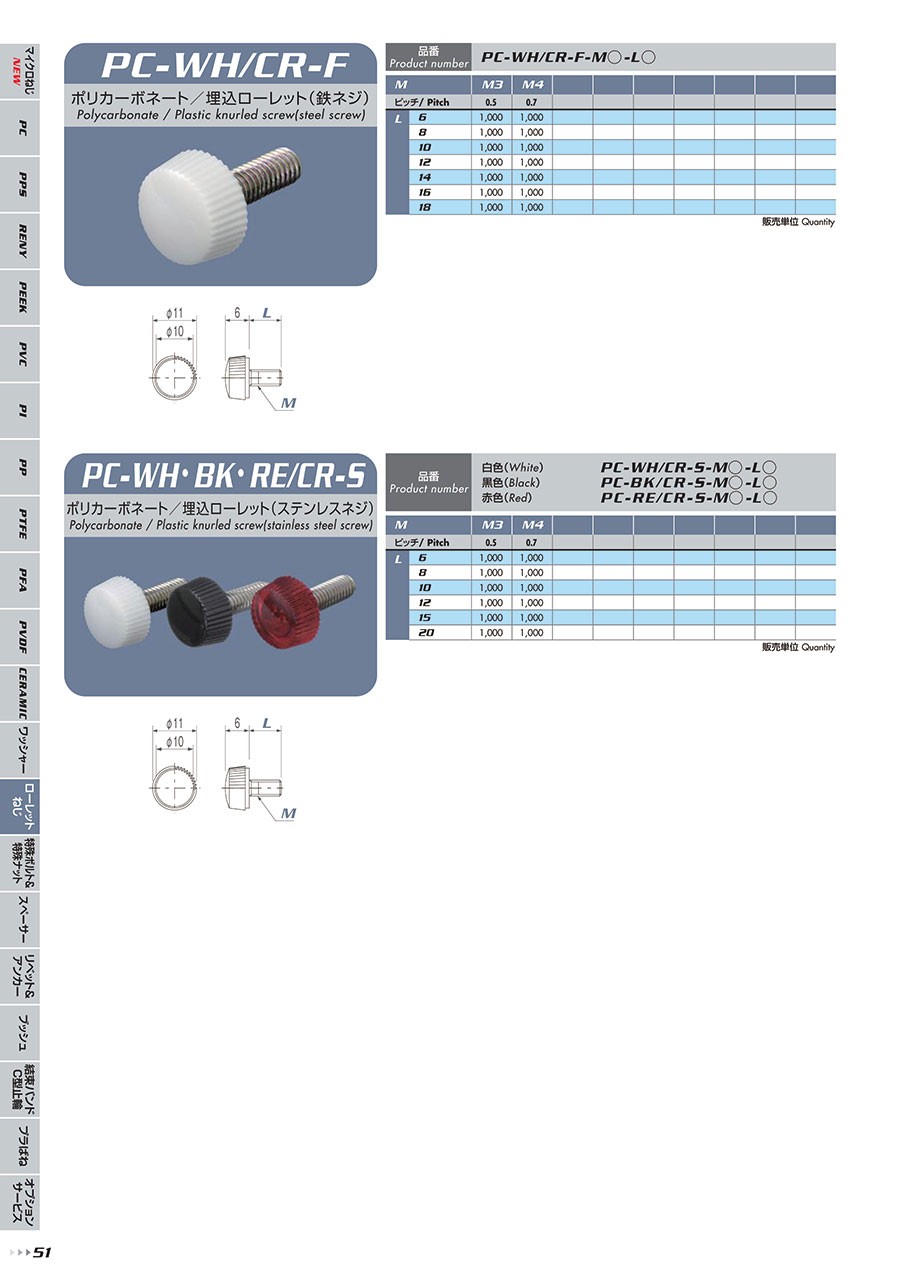

PC (Polycarbonate) / Knurled Steel Screws
- Volume Discount
[Length L or l (mm)] 6 8 10 12 16
[Pitch (mm)] 0.5 0.7
[Detailed shape] Knurl
[Mounting hole dimensions] None
[Basic shape] Standard (Round)
[Materials] Resin
[Surface treatment](Details) none
[Thread ridge type] Metric coarse
[Tip shape] Flat End
[Additional shapes] Standard
[Sales unit] Minimum Quantity (Available for Purchase from 1 pc)
[Application] Standard, Resin
[Materials] PC
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| PC-WH/CR-F-M3-L6 |
| PC-WH/CR-F-M3-L8 |
| PC-WH/CR-F-M3-L10 |
| PC-WH/CR-F-M3-L12 |
| PC-WH/CR-F-M3-L16 |
| PC-WH/CR-F-M4-L6 |
| PC-WH/CR-F-M4-L8 |
| PC-WH/CR-F-M4-L10 |
| PC-WH/CR-F-M4-L12 |
| PC-WH/CR-F-M4-L16 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Nominal of Thread (M) | Length L or l (mm) (mm) | Pitch (mm) | |
|---|---|---|---|---|---|---|---|---|
0.78 € | 1 | Available | 6 Days | 10 | 3 | 6 | 0.5 | |
0.78 € | 1 | Available | 6 Days | 10 | 3 | 8 | 0.5 | |
0.78 € | 1 | Available | 6 Days | 10 | 3 | 10 | 0.5 | |
0.78 € | 1 | Available | 6 Days | 10 | 3 | 12 | 0.5 | |
0.78 € | 1 | Available | 6 Days | 10 | 3 | 16 | 0.5 | |
0.79 € | 1 | Available | 6 Days | 10 | 4 | 6 | 0.7 | |
0.79 € | 1 | Available | 6 Days | 10 | 4 | 8 | 0.7 | |
0.79 € | 1 | Available | 6 Days | 10 | 4 | 10 | 0.7 | |
0.89 € | 1 | Available |
Same day
Stock | 10 | 4 | 12 | 0.7 | |
0.79 € | 1 | Available | 6 Days | 10 | 4 | 16 | 0.7 |
Loading...
Basic information
| Detailed Shape | Knurled | Material | Resin | Surface Treatment (Details) | NA |
|---|---|---|---|---|---|
| Mounting Hole Shape | NA | Tip Shape | Flat End | Additional Shapes | Standard |
| Thread ridge Type | Metric Coarse | Basic Shape | Standard (Round) | Sales Unit | Low Quantity (can be purchased from one) |
| Application | Standard | Plastic Material | PC |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
