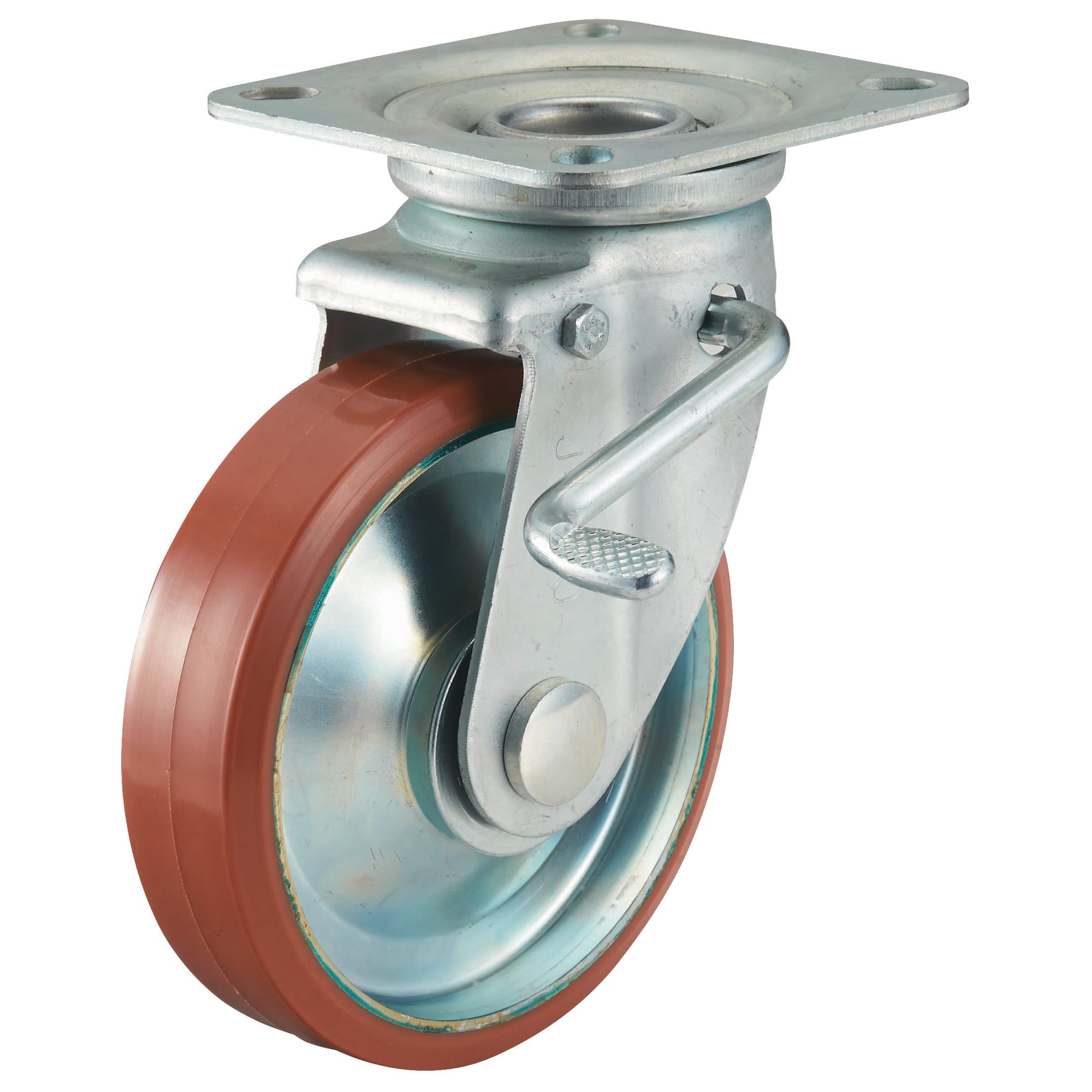

P-WJS Type Castors for Medium Loads with Logllan (Urethane) Wheel Type with Swivel Hardware and Double Stopper
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| P-75WJS |
| P-100WJS |
| P-130WJS |
| P-150WJS |
| P-200WJS |
| P-250WJS |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Mounting Height H (mm) | Load Range (daN) | Maximum Load Capacity (daN) | Mounting Hole Type | Mounting Hole Pitch Longitudinal direction (mm) | Mounting Hole Pitch Transverse Direction (mm) | Top Plate F1 (mm) | Top Plate F2 (mm) | Wheel Diameter (mm) | Eccentricity G (mm) | Fork Width b (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
24.59 € | 1 | Available |
Same day
Stock | 10 | 100 | 80.01~140.00 | 117.6 | Round Hole | 63 | 63 | 81 | 81 | 75 | 23.5 | 36 | |
30.07 € | 1 | Available |
Same day
Stock | 10 | 144 | 140.01~220.00 | 176.4 | Long Hole | 70(73) | 70(73) | 95 | 95 | 100 | 35 | 43 | |
45.94 € | 1 | 5 Days | 10 | 177 | 220.01~320.00 | 245 | Long Hole | 79(82) | 79(82) | 105 | 105 | 130 | 40 | 52 | ||
42.23 € | 1 | Available |
Same day
Stock | 10 | 198 | 220.01~320.00 | 294 | Long Hole | 87(93) | 87(93) | 120 | 120 | 150 | 45 | 56 | |
61.81 € | 1 | Available |
Same day
Stock | 10 | 250 | 320.01~485.00 | 392 | Round Hole | 112 | 112 | 140 | 140 | 200 | 58 | 56 | |
167.17 € | 1 | 6 Days | - | 305 | 485.01~750.00 | 490 | Round Hole | 125 | 125 | 160 | 160 | 250 | 71 | 90 |
Loading...
Basic information
| Caster Type | Plate Type Universal | Stopper | With Double Stopper (Rotation + Turning) | Wheel Material | Loglan (Urethane) |
|---|---|---|---|---|---|
| Wheel Characteristics | Abrasion Resistance / Oil Resistance | Fitting Material | Made of steel plate | Load Category | Medium Load |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 80.01~140.00
- 140.01~220.00
- 220.01~320.00
- 320.01~485.00
- 485.01~750.00
-
Maximum Load Capacity(daN)
-
Mounting Hole Type
- Round Hole
- Long Hole
-
Mounting Hole Pitch Longitudinal direction(mm)
-
Mounting Hole Pitch Transverse Direction(mm)
-
Top Plate F1(mm)
-
Top Plate F2(mm)
-
Wheel Diameter(mm)
-
Eccentricity G(mm)
-
Fork Width b(mm)
- 36
- 43
- 52
- 56
- 90
-
Type
- P-WJS
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
