Swivel Castors for Medium Loads Jtype, Size 130 mm

Swivel Castors for Medium Loads Jtype, Size 130 mm

GIFU SANKEN KOGYO

GIFU SANKEN KOGYO

A standard, free-swivel caster for medium loads.

(i)Remark

  • Device roller is optionally available with or without roller. Use the configurator for your selection.

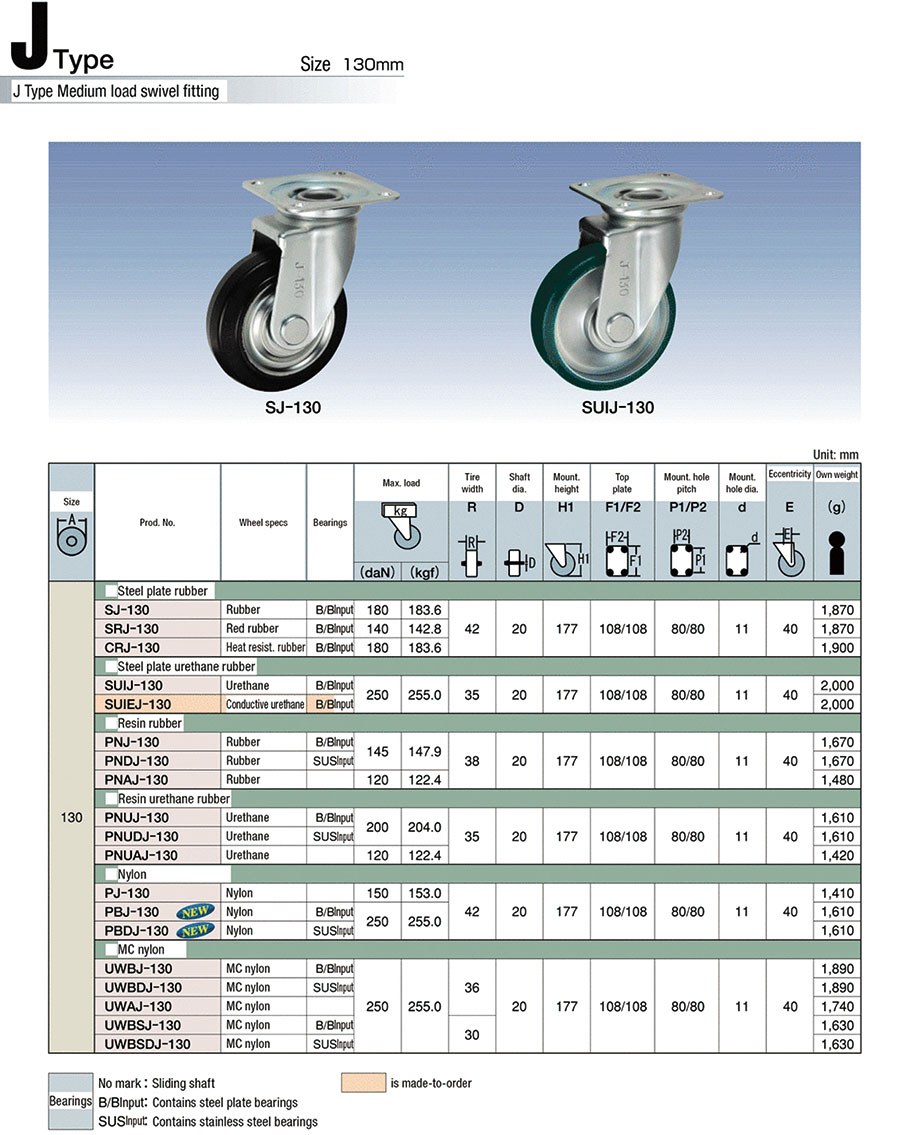

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
CRJ-130
J-130
PBDJ-130
PBJ-130
PJ-130
PNAJ-130
PNDJ-130
PNJ-130
PNUAJ-130
PNUDJ-130
PNUJ-130
SJ-130
SRJ-130
SUIJ-130
UWAJ-130
UWBDJ-130
UWBJ-130
UWBSDJ-130
UWBSJ-130
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Caster Type Mounting Height H1
(mm) 		Load Range
(daN) 		Maximum Load Capacity
(daN) 		Wheel specification Wheel Characteristics Mounting Hole Type Shaft Diameter D
(mm) 		Tire width R
(mm) 		Eccentricity E
(mm) 		Metal Fitting Specifications Shaft Bearing

61.31 €

1 9 Days Plate Type Universal177140.01~220.00180[Synthetic Rubber] Heat Resistant RubberAbrasion Resistance / Chemical ResistanceRound Hole204240The wheels on earthSteel Plate with Bearing

24.79 €

1 5 Days Plate Type Universal / Related Components-220.01~320.00250------Metal Fitting Only - No Wheels-

86.54 €

1 9 Days Plate Type Universal177220.01~320.00250[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole204240The wheels on earthStainless Steel Bearing

57.08 €

1 9 Days Plate Type Universal177220.01~320.00250[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole204240The wheels on earthSteel Plate with Bearing

48.32 €

1 9 Days Plate Type Universal177140.01~220.00150[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole204240The wheels on earthSlide Bearing

42.41 €

1 9 Days Plate Type Universal17780.01~140.00120[Synthetic Rubber] RubberAbrasion ResistanceRound Hole203840The wheels on earthSlide Bearing

77.12 €

1 9 Days Plate Type Universal177140.01~220.00145[Synthetic Rubber] RubberAbrasion ResistanceRound Hole203840The wheels on earthStainless Steel Bearing

46.42 €

1 9 Days Plate Type Universal177140.01~220.00145[Synthetic Rubber] RubberAbrasion ResistanceRound Hole203840The wheels on earthSteel Plate with Bearing

60.96 €

1 9 Days Plate Type Universal17780.01~140.00120[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole203540The wheels on earthSlide Bearing

90.07 €

1 9 Days Plate Type Universal177140.01~220.00200[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole203540The wheels on earthStainless Steel Bearing

65.80 €

1 9 Days Plate Type Universal177140.01~220.00200[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole203540The wheels on earthSteel Plate with Bearing

46.56 €

1 5 Days Plate Type Universal177140.01~220.00180[Synthetic Rubber] RubberAbrasion ResistanceRound Hole204240The wheels on earthSteel Plate with Bearing

59.52 €

1 9 Days Plate Type Universal17780.01~140.00140[Synthetic Rubber] Red rubberAbrasion ResistanceRound Hole204240The wheels on earthSteel Plate with Bearing

61.83 €

1 5 Days Plate Type Universal177220.01~320.00250[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole203540The wheels on earthSteel Plate with Bearing

112.04 €

1 22 Days Plate Type Universal177220.01~320.00250[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole203640The wheels on earthSlide Bearing

130.17 €

1 22 Days Plate Type Universal177220.01~320.00250[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole203640The wheels on earthStainless Steel Bearing

104.98 €

1 22 Days Plate Type Universal177220.01~320.00250[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole203640The wheels on earthSteel Plate with Bearing

113.41 €

1 22 Days Plate Type Universal177220.01~320.00250[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole203040The wheels on earthStainless Steel Bearing

116.36 €

1 22 Days Plate Type Universal177220.01~320.00250[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole203040The wheels on earthSteel Plate with Bearing

Loading...

  1. 1

Basic information

Stopper NA Fitting Material Steel Mounting Hole Pitch Longitudinal direction(mm) 80
Mounting Hole Pitch Transverse Direction(mm) 80 Top Plate F1(mm) 108 Top Plate F2(mm) 108
Size A or outer diameter A of the tire(mm) 130 Load Category Light/Medium Load

Configure

Clear all

19Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Caster Type

    • Plate Type Universal
    • Related Components

    Clear

  • Mounting Height H1(mm)

    • 177

    Clear

  • Load Range(daN)

    • 80.01~140.00
    • 140.01~220.00
    • 220.01~320.00

    Clear

  • Maximum Load Capacity(daN)

    • 120
    • 140
    • 145
    • 150
    • 180
    • 200
    • 250

    Clear

  • Wheel specification

    • Synthetic Rubber
      • Heat Resistant Rubber
      • Red rubber
      • Rubber
    • Nylon
      • MC Nylon
      • Nylon
    • Urethane
      • Urethane

    Clear

  • Wheel Characteristics

    • Abrasion Resistance
    • Gasoline Resistance (Light Oil included)
    • Oil Resistance
    • Chemical Resistance
    • Heat-Resistance
    • Cold Resistance

    Clear

  • Mounting Hole Type

    • Round Hole

    Clear

  • Shaft Diameter D(mm)

    • 20

    Clear

  • Tire width R(mm)

    • 30
    • 35
    • 36
    • 38
    • 42

    Clear

  • Eccentricity E(mm)

    • 40

    Clear

  • Metal Fitting Specifications

    • Metal Fitting Only - No Wheels
    • The wheels on earth

    Clear

  • Shaft Bearing

    • Slide Bearing
    • Stainless Steel Bearing
    • Steel Plate with Bearing

    Clear

  • Type

    • J

    Clear

Filter by standard shipping days

    • All
    • 5 Days or Less
    • 9 Days or Less
    • 22 Days or Less

    Reset
