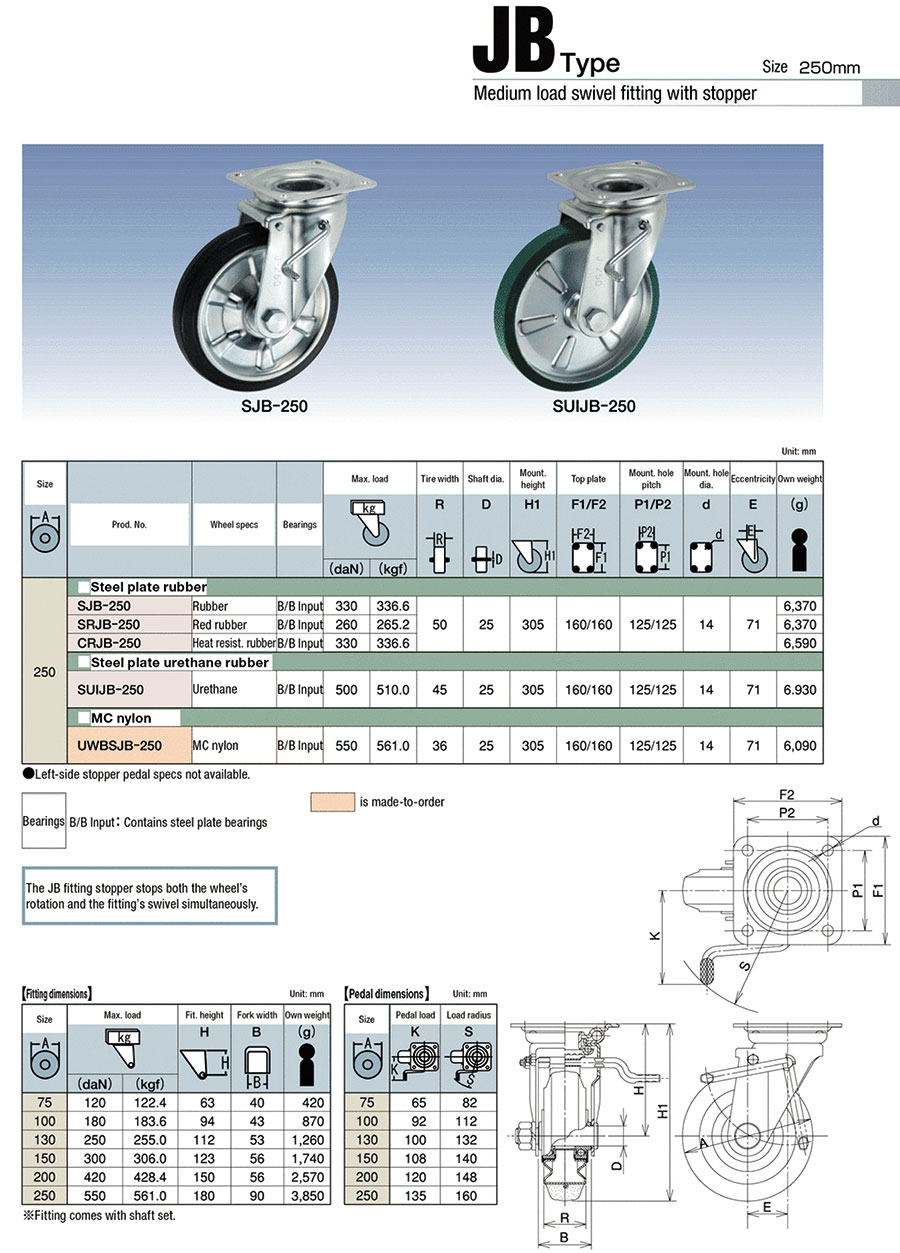

Swivel Castors for Medium Loads (with Double Stopper) JBtype, Size 250 mm

Swivel Castors for Medium Loads (with Double Stopper) JBtype, Size 250 mm
[Features]
· A standard type caster for medium loads; a turning type caster that includes stoppers that stop the rotation of the wheel and turning of the hardware simultaneously.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
CRJB-250
JB-250
SJB-250
SRJB-250
SUIJB-250
UWBSJB-250
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Caster Type Mounting Height H1
(mm)
Load Range
(daN)
Maximum Load Capacity
(daN)
Wheel specification Wheel Characteristics Mounting Hole Type Shaft Diameter D
(mm)
Tire width R
(mm)
Eccentricity E
(mm)
Load Category Metal Fitting Specifications Shaft Bearing

132.90 €

1 9 Days Plate Type Universal305320.01~485.00330[Synthetic Rubber] Heat Resistant RubberAbrasion Resistance / Chemical ResistanceRound Hole255071Medium LoadThe wheels on earthSteel Plate with Bearing

102.55 €

1 9 Days Plate Type Universal / Related Components-485.01~750.00550------Medium LoadMetal Fitting Only - No Wheels-

123.79 €

1 9 Days Plate Type Universal305320.01~485.00330[Synthetic Rubber] RubberAbrasion ResistanceRound Hole255071Medium LoadThe wheels on earthSteel Plate with Bearing

131.80 €

1 9 Days Plate Type Universal305220.01~320.00260[Synthetic Rubber] Red rubberAbrasion ResistanceRound Hole255071Light/Medium LoadThe wheels on earthSteel Plate with Bearing

151.84 €

1 14 Days Plate Type Universal305485.01~750.00500[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole254571Medium LoadThe wheels on earthSteel Plate with Bearing

314.89 €

1 14 Days Plate Type Universal305485.01~750.00550[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole253671Medium LoadThe wheels on earthSteel Plate with Bearing

Loading...

  1. 1

Basic information

Stopper With Double Stopper (Rotation + Turning) Fitting Material Steel Mounting Hole Pitch Longitudinal direction(mm) 125
Mounting Hole Pitch Transverse Direction(mm) 125 Top Plate F1(mm) 160 Top Plate F2(mm) 160
Size A or outer diameter A of the tire(mm) 250 Stopper Pedal Specifications Right
