Stainless Steel Castors, Fixed KAtype Size 200 mm

Stainless Steel Castors, Fixed KAtype Size 200 mm

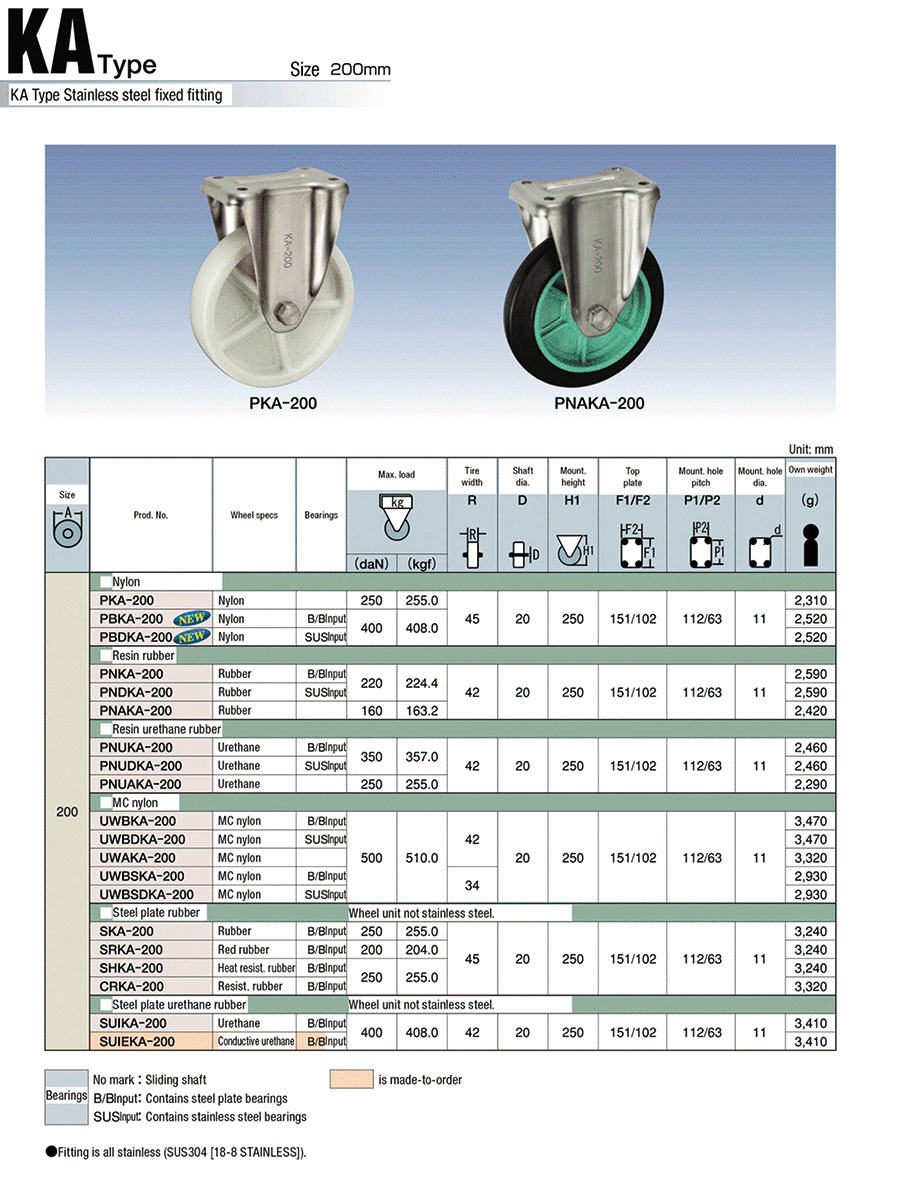

A directionally-fixed type caster that uses stainless steel to achieve rust resistance for all hardware parts.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
CRKA-200
KA-200
PBDKA-200
PBKA-200
PKA-200
PNAKA-200
PNDKA-200
PNKA-200
PNUAKA-200
PNUDKA-200
PNUKA-200
SHKA-200
SKA-200
SRKA-200
SUIEKA-200
SUIKA-200
UWAKA-200
UWBDKA-200
UWBKA-200
UWBSDKA-200
UWBSKA-200
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Caster Type Mounting Height H1
(mm)
Properties Load Range
(daN)
Maximum Load Capacity
(daN)
Wheel specification Wheel Characteristics Mounting Hole Type Shaft Diameter D
(mm)
Tire width R
(mm)
Load Category Metal Fitting Specifications Shaft Bearing

110.35 €

1 9 Days Plate Type Fixed250-220.01~320.00250[Synthetic Rubber] Heat Resistant RubberAbrasion Resistance / Chemical ResistanceRound Hole2045Light/Medium LoadThe wheels on earthSteel Plate with Bearing

99.72 €

1 9 Days Plate Type Fixed / Related Components--485.01~750.00500-----Heavy LoadMetal Fitting Only - No Wheels-

120.91 €

1 9 Days Plate Type Fixed250-320.01~485.00400[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole2045Heavy LoadThe wheels on earthStainless Steel Bearing

101.27 €

1 9 Days Plate Type Fixed250-320.01~485.00400[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole2045Heavy LoadThe wheels on earthSteel Plate with Bearing

95.69 €

1 9 Days Plate Type Fixed250-220.01~320.00250[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole2045Light/Medium LoadThe wheels on earthSlide Bearing

89.74 €

1 9 Days Plate Type Fixed250-140.01~220.00160[Synthetic Rubber] RubberAbrasion ResistanceRound Hole2042Light/Medium LoadThe wheels on earthSlide Bearing

114.47 €

1 9 Days Plate Type Fixed250-140.01~220.00220[Synthetic Rubber] RubberAbrasion ResistanceRound Hole2042Light/Medium LoadThe wheels on earthStainless Steel Bearing

91.13 €

1 9 Days Plate Type Fixed250-140.01~220.00220[Synthetic Rubber] RubberAbrasion ResistanceRound Hole2042Light/Medium LoadThe wheels on earthSteel Plate with Bearing

104.86 €

1 9 Days Plate Type Fixed250-220.01~320.00250[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole2042Light/Medium LoadThe wheels on earthSlide Bearing

130.17 €

1 9 Days Plate Type Fixed250-320.01~485.00350[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole2042Heavy LoadThe wheels on earthStainless Steel Bearing

109.51 €

1 9 Days Plate Type Fixed250-320.01~485.00350[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole2042Heavy LoadThe wheels on earthSteel Plate with Bearing

106.82 €

1 9 Days Plate Type Fixed250-220.01~320.00250[Synthetic Rubber] High impact rubberAbrasion ResistanceRound Hole2045Light/Medium LoadThe wheels on earthSteel Plate with Bearing

90.73 €

1 9 Days Plate Type Fixed250-220.01~320.00250[Synthetic Rubber] RubberAbrasion ResistanceRound Hole2045Light/Medium LoadThe wheels on earthSteel Plate with Bearing

106.82 €

1 9 Days Plate Type Fixed250-140.01~220.00200[Synthetic Rubber] Red rubberAbrasion ResistanceRound Hole2045Light/Medium LoadThe wheels on earthSteel Plate with Bearing

177.78 €

1 14 Days Plate Type Fixed250Static electricity prevention320.01~485.00400[Urethane] Conductive urethanAntistaticRound Hole2042Heavy LoadThe wheels on earthSteel Plate with Bearing

107.63 €

1 14 Days Plate Type Fixed250-320.01~485.00400[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole2042Heavy LoadThe wheels on earthSteel Plate with Bearing

223.34 €

1 14 Days Plate Type Fixed250-485.01~750.00500[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole2042Heavy LoadThe wheels on earthSlide Bearing

294.92 €

1 14 Days Plate Type Fixed250-485.01~750.00500[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole2042Heavy LoadThe wheels on earthStainless Steel Bearing

240.20 €

1 14 Days Plate Type Fixed250-485.01~750.00500[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole2042Heavy LoadThe wheels on earthSteel Plate with Bearing

223.42 €

1 14 Days Plate Type Fixed250-485.01~750.00500[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole2034Heavy LoadThe wheels on earthStainless Steel Bearing

183.05 €

1 14 Days Plate Type Fixed250-485.01~750.00500[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole2034Heavy LoadThe wheels on earthSteel Plate with Bearing

Loading...

  1. 1

Basic information

Stopper NA Fitting Material Stainless Steel (EN 1.4301 Equiv.) Mounting Hole Pitch Longitudinal direction(mm) 112
Mounting Hole Pitch Transverse Direction(mm) 63 Top Plate F1(mm) 151 Top Plate F2(mm) 102
Size A or outer diameter A of the tire(mm) 200
