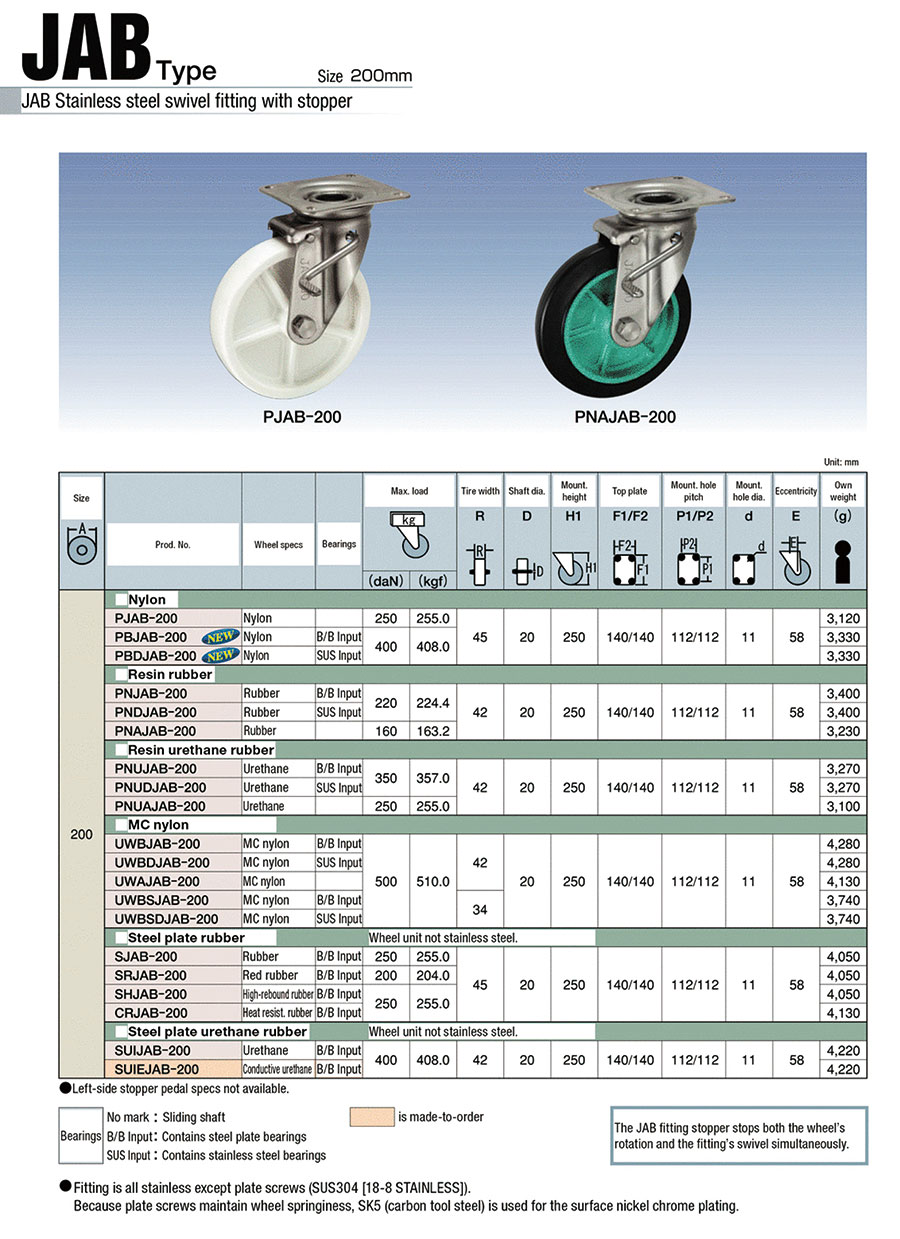

Stainless Steel Castors, Swivel (with Double Stopper) JABtype Size 200 mm
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H1 (mm) | Properties | Load Range (daN) | Maximum Load Capacity (daN) | Wheel specification | Wheel Characteristics | Mounting Hole Type | Shaft Diameter D (mm) | Tire width R (mm) | Eccentricity E (mm) | Load Category | Metal Fitting Specifications | Shaft Bearing | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
176.38 € | 1 | 9 Days | Plate Type Universal | 250 | - | 220.01~320.00 | 250 | [Synthetic Rubber] Heat Resistant Rubber | Abrasion Resistance / Chemical Resistance | Round Hole | 20 | 45 | 58 | Light/Medium Load | The wheels on earth | Steel Plate with Bearing | ||
141.28 € | 1 | 10 Days | Plate Type Universal / Related Components | - | - | 485.01~750.00 | 500 | - | - | - | - | - | - | Heavy Load | Metal Fitting Only - No Wheels | - | ||
186.93 € | 1 | 9 Days | Plate Type Universal | 250 | - | 320.01~485.00 | 400 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance | Round Hole | 20 | 45 | 58 | Heavy Load | The wheels on earth | Stainless Steel Bearing | ||
167.30 € | 1 | 9 Days | Plate Type Universal | 250 | - | 320.01~485.00 | 400 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance | Round Hole | 20 | 45 | 58 | Heavy Load | The wheels on earth | Steel Plate with Bearing | ||
161.71 € | 1 | 9 Days | Plate Type Universal | 250 | - | 220.01~320.00 | 250 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance | Round Hole | 20 | 45 | 58 | Light/Medium Load | The wheels on earth | Slide Bearing | ||
155.84 € | 1 | 9 Days | Plate Type Universal | 250 | - | 140.01~220.00 | 160 | [Synthetic Rubber] Rubber | Abrasion Resistance | Round Hole | 20 | 42 | 58 | Light/Medium Load | The wheels on earth | Slide Bearing | ||
180.48 € | 1 | 9 Days | Plate Type Universal | 250 | - | 140.01~220.00 | 220 | [Synthetic Rubber] Rubber | Abrasion Resistance | Round Hole | 20 | 42 | 58 | Light/Medium Load | The wheels on earth | Stainless Steel Bearing | ||
157.08 € | 1 | 9 Days | Plate Type Universal | 250 | - | 140.01~220.00 | 220 | [Synthetic Rubber] Rubber | Abrasion Resistance | Round Hole | 20 | 42 | 58 | Light/Medium Load | The wheels on earth | Steel Plate with Bearing | ||
170.96 € | 1 | 9 Days | Plate Type Universal | 250 | - | 220.01~320.00 | 250 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 20 | 42 | 58 | Light/Medium Load | The wheels on earth | Slide Bearing | ||
196.19 € | 1 | 9 Days | Plate Type Universal | 250 | - | 320.01~485.00 | 350 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 20 | 42 | 58 | Heavy Load | The wheels on earth | Stainless Steel Bearing | ||
175.46 € | 1 | 9 Days | Plate Type Universal | 250 | - | 320.01~485.00 | 350 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 20 | 42 | 58 | Heavy Load | The wheels on earth | Steel Plate with Bearing | ||
172.92 € | 1 | 9 Days | Plate Type Universal | 250 | - | 220.01~320.00 | 250 | [Synthetic Rubber] High impact rubber | Abrasion Resistance | Round Hole | 20 | 45 | 58 | Light/Medium Load | The wheels on earth | Steel Plate with Bearing | ||
156.76 € | 1 | 9 Days | Plate Type Universal | 250 | - | 220.01~320.00 | 250 | [Synthetic Rubber] Rubber | Abrasion Resistance | Round Hole | 20 | 45 | 58 | Light/Medium Load | The wheels on earth | Steel Plate with Bearing | ||
172.92 € | 1 | 9 Days | Plate Type Universal | 250 | - | 140.01~220.00 | 200 | [Synthetic Rubber] Red rubber | Abrasion Resistance | Round Hole | 20 | 45 | 58 | Light/Medium Load | The wheels on earth | Steel Plate with Bearing | ||
243.80 € | 1 | 14 Days | Plate Type Universal | 250 | Static electricity prevention | 320.01~485.00 | 400 | [Urethane] Conductive urethan | Antistatic | Round Hole | 20 | 42 | 58 | Heavy Load | The wheels on earth | Steel Plate with Bearing | ||
173.66 € | 1 | 14 Days | Plate Type Universal | 250 | - | 320.01~485.00 | 400 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 20 | 42 | 58 | Heavy Load | The wheels on earth | Steel Plate with Bearing | ||
289.43 € | 1 | 14 Days | Plate Type Universal | 250 | - | 485.01~750.00 | 500 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 20 | 42 | 58 | Heavy Load | The wheels on earth | Slide Bearing | ||
360.96 € | 1 | 14 Days | Plate Type Universal | 250 | - | 485.01~750.00 | 500 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 20 | 42 | 58 | Heavy Load | The wheels on earth | Stainless Steel Bearing | ||
306.23 € | 1 | 14 Days | Plate Type Universal | 250 | - | 485.01~750.00 | 500 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 20 | 42 | 58 | Heavy Load | The wheels on earth | Steel Plate with Bearing | ||
289.37 € | 1 | 14 Days | Plate Type Universal | 250 | - | 485.01~750.00 | 500 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 20 | 34 | 58 | Heavy Load | The wheels on earth | Stainless Steel Bearing | ||
249.00 € | 1 | 14 Days | Plate Type Universal | 250 | - | 485.01~750.00 | 500 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 20 | 34 | 58 | Heavy Load | The wheels on earth | Steel Plate with Bearing |
Loading...
Basic information
| Stopper | With Double Stopper (Rotation + Turning) | Fitting Material | Stainless Steel (EN 1.4301 Equiv.) | Mounting Hole Pitch Longitudinal direction(mm) | 112 |
|---|---|---|---|---|---|
| Mounting Hole Pitch Transverse Direction(mm) | 112 | Top Plate F1(mm) | 140 | Top Plate F2(mm) | 140 |
| Size A or outer diameter A of the tire(mm) | 200 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Universal
- Related Components
-
Mounting Height H1(mm)
-
Properties
- Static electricity prevention
-
Load Range(daN)
- 140.01~220.00
- 220.01~320.00
- 320.01~485.00
- 485.01~750.00
-
Maximum Load Capacity(daN)
-
Wheel specification
- Synthetic Rubber
- Nylon
- Urethane
- Synthetic Rubber
-
Wheel Characteristics
- Abrasion Resistance
- Gasoline Resistance (Light Oil included)
- Oil Resistance
- Chemical Resistance
- Heat-Resistance
- Cold Resistance
- Antistatic
-
Mounting Hole Type
- Round Hole
-
Shaft Diameter D(mm)
-
Tire width R(mm)
-
Eccentricity E(mm)
-
Metal Fitting Specifications
- Metal Fitting Only - No Wheels
- The wheels on earth
-
Shaft Bearing
- Slide Bearing
- Stainless Steel Bearing
- Steel Plate with Bearing
-
Type
- JAB
Filter by standard shipping days
-
- All
- 9 Days or Less
- 10 Days or Less
- 14 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
