Stainless Steel Castors, Fixed (with Rotation Stopper) KABZtype Size 130 mm

Stainless Steel Castors, Fixed (with Rotation Stopper) KABZtype Size 130 mm

GIFU SANKEN KOGYO

GIFU SANKEN KOGYO

A caster comprising a stopper for stopping rotation of the wheel that is entirely made of stainless steel hardware except the leaf spring.

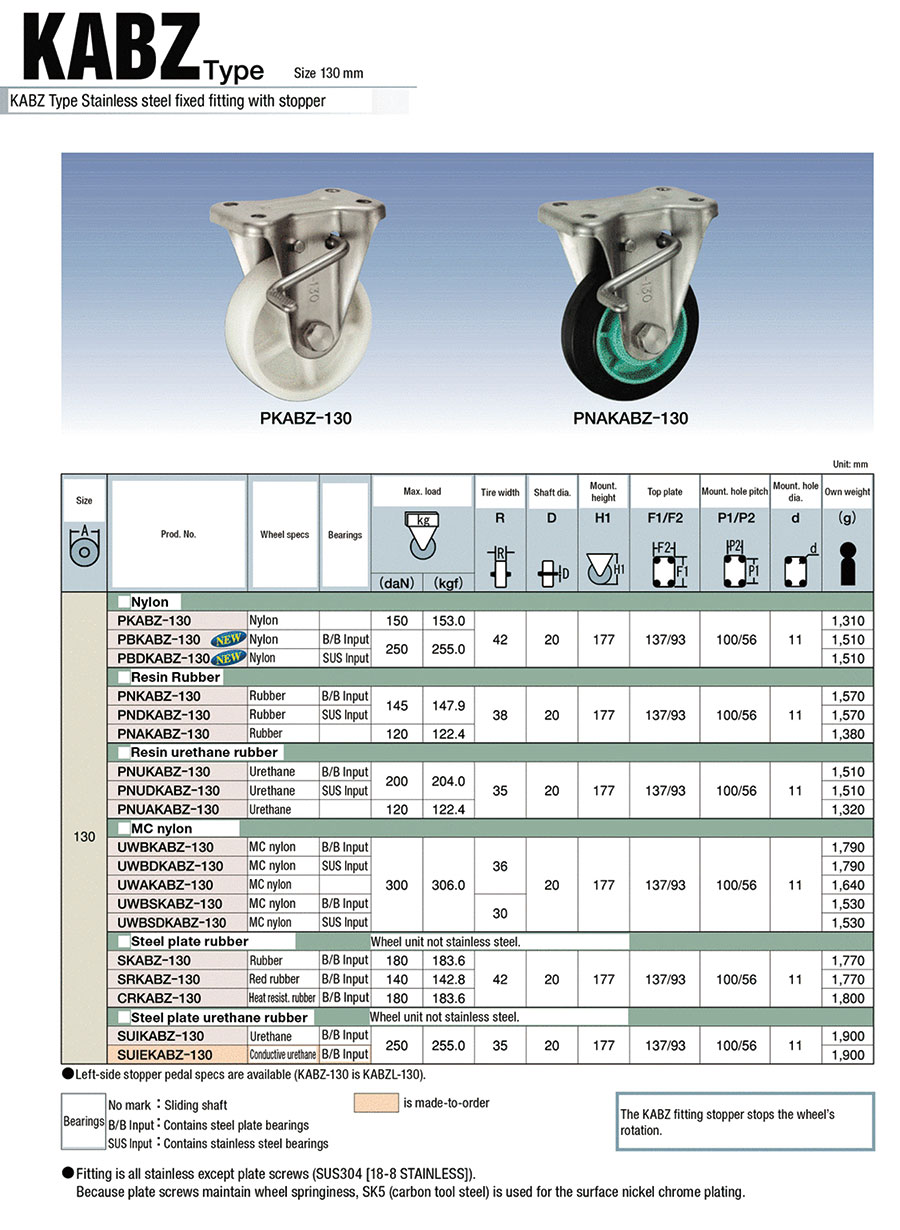

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
CRKABZ-130
KABZ-130
KABZL-130
PBDKABZ-130
PBKABZ-130
PKABZ-130
PNAKABZ-130
PNDKABZ-130
PNKABZ-130
PNUAKABZ-130
PNUDKABZ-130
PNUKABZ-130
SKABZ-130
SRKABZ-130
SUIKABZ-130
UWAKABZ-130
UWBDKABZ-130
UWBKABZ-130
UWBSDKABZ-130
UWBSKABZ-130
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Caster Type Mounting Height H1
(mm) 		Load Range
(daN) 		Maximum Load Capacity
(daN) 		Wheel specification Wheel Characteristics Mounting Hole Type Shaft Diameter D
(mm) 		Tire width R
(mm) 		Stopper Pedal Specifications Metal Fitting Specifications Shaft Bearing

86.30 €

1 11 Days Plate Type Fixed177140.01~220.00180[Synthetic Rubber] Heat Resistant RubberAbrasion Resistance / Chemical ResistanceRound Hole2042RightThe wheels on earthSteel Plate with Bearing

92.75 €

1 10 Days Plate Type Fixed / Related Components-220.01~320.00300-----RightMetal Fitting Only - No Wheels-

92.75 €

1 10 Days Plate Type Fixed / Related Components-220.01~320.00300-----LeftMetal Fitting Only - No Wheels-

104.00 €

1 11 Days Plate Type Fixed177220.01~320.00250[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole2042RightThe wheels on earthStainless Steel Bearing

119.06 €

1 11 Days Plate Type Fixed177220.01~320.00250[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole2042RightThe wheels on earthSteel Plate with Bearing

110.16 €

1 11 Days Plate Type Fixed177140.01~220.00150[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole2042RightThe wheels on earthSlide Bearing

104.36 €

1 11 Days Plate Type Fixed17780.01~140.00120[Synthetic Rubber] RubberAbrasion ResistanceRound Hole2038RightThe wheels on earthSlide Bearing

97.43 €

1 11 Days Plate Type Fixed177140.01~220.00145[Synthetic Rubber] RubberAbrasion ResistanceRound Hole2038RightThe wheels on earthStainless Steel Bearing

108.47 €

1 10 Days Plate Type Fixed177140.01~220.00145[Synthetic Rubber] RubberAbrasion ResistanceRound Hole2038RightThe wheels on earthSteel Plate with Bearing

85.89 €

1 11 Days Plate Type Fixed17780.01~140.00120[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole2035RightThe wheels on earthSlide Bearing

106.45 €

1 11 Days Plate Type Fixed177140.01~220.00200[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole2035RightThe wheels on earthStainless Steel Bearing

89.38 €

1 11 Days Plate Type Fixed177140.01~220.00200[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole2035RightThe wheels on earthSteel Plate with Bearing

108.61 €

1 11 Days Plate Type Fixed177140.01~220.00180[Synthetic Rubber] RubberAbrasion ResistanceRound Hole2042RightThe wheels on earthSteel Plate with Bearing

121.76 €

1 11 Days Plate Type Fixed17780.01~140.00140[Synthetic Rubber] Red rubberAbrasion ResistanceRound Hole2042RightThe wheels on earthSteel Plate with Bearing

89.30 €

1 11 Days Plate Type Fixed177220.01~320.00250[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole2035RightThe wheels on earthSteel Plate with Bearing

126.74 €

1 23 Days Plate Type Fixed177220.01~320.00300[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole2036RightThe wheels on earthSlide Bearing

178.07 €

1 15 Days Plate Type Fixed177220.01~320.00300[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole2036RightThe wheels on earthStainless Steel Bearing

151.98 €

1 23 Days Plate Type Fixed177220.01~320.00300[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole2036RightThe wheels on earthSteel Plate with Bearing

160.67 €

1 23 Days Plate Type Fixed177220.01~320.00300[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole2030RightThe wheels on earthStainless Steel Bearing

129.96 €

1 15 Days Plate Type Fixed177220.01~320.00300[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole2030RightThe wheels on earthSteel Plate with Bearing

Loading...

  1. 1

Basic information

Stopper With Rotation Stopper Fitting Material Stainless Steel (EN 1.4301 Equiv.) Mounting Hole Pitch Longitudinal direction(mm) 100
Mounting Hole Pitch Transverse Direction(mm) 56 Top Plate F1(mm) 137 Top Plate F2(mm) 93
Size A or outer diameter A of the tire(mm) 130 Load Category Light/Medium Load
