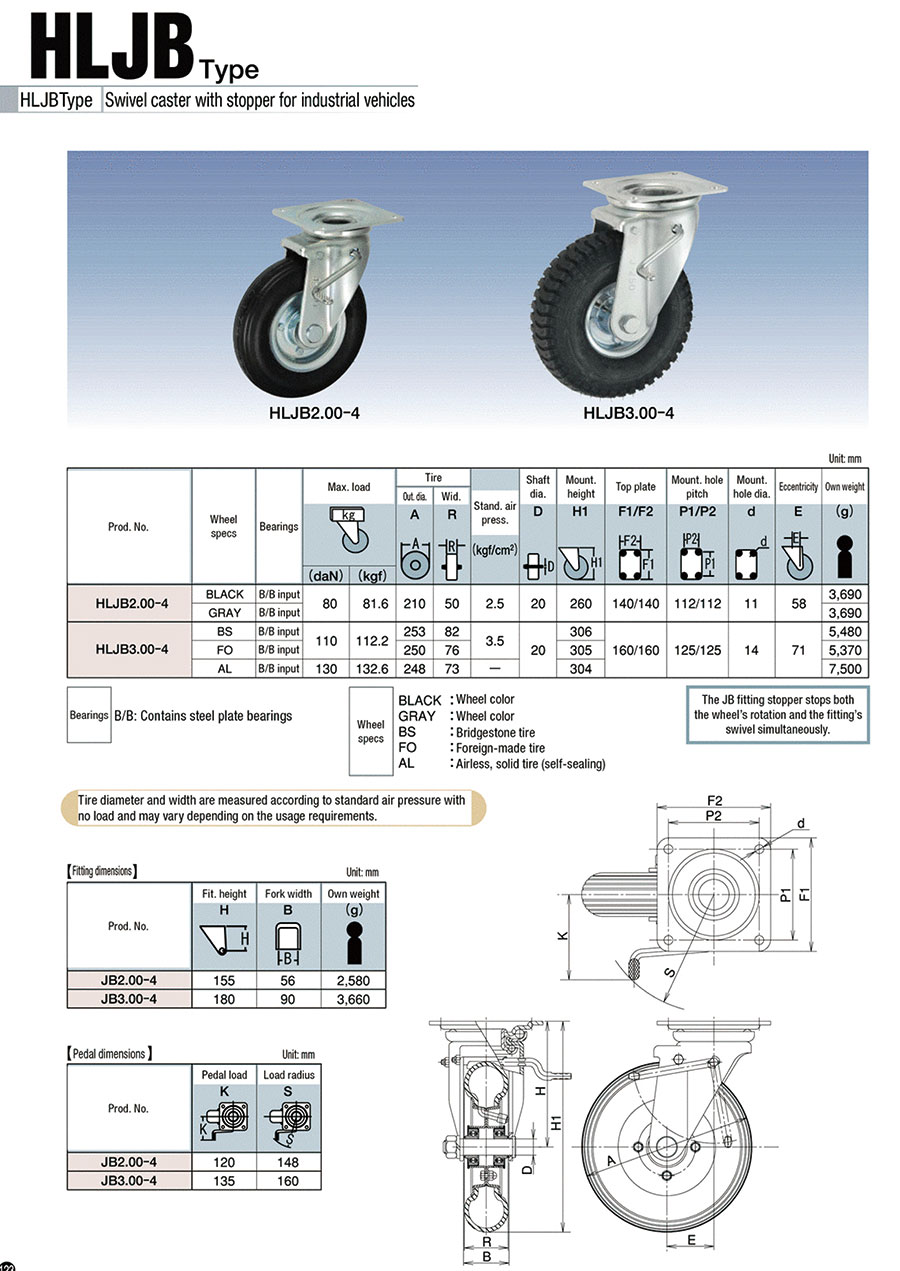

Swivel Castors for Industrial Vehicles (with Double Stopper) HLJBtype

Basic Attributes

• Caster Type

  • Plate Type Universal
  • Related Components

  Clear

• Mounting Height H1(mm)

  • 260
  • 304
  • 305
  • 306

  Clear

• Load Range(daN)

  • 35.01~80.00
  • 80.01~140.00

  Clear

• Maximum Load Capacity(daN)

  • 80
  • 110
  • 130

  Clear

• Wheel Characteristics

  • Abrasion Resistance

  Clear

• Mounting Hole Type

  • Round Hole

  Clear

• Mounting Hole Pitch Longitudinal direction(mm)

  • 112
  • 125

  Clear

• Mounting Hole Pitch Transverse Direction(mm)

  • 112
  • 125

  Clear

• Top Plate F1(mm)

  • 140
  • 160

  Clear

• Top Plate F2(mm)

  • 140
  • 160

  Clear

• Shaft Diameter D(mm)

  • 20

  Clear

• Size A or outer diameter A of the tire(mm)

  • 210
  • 248
  • 250
  • 253

  Clear

• Tire width R(mm)

  • 50
  • 73
  • 76
  • 82

  Clear

• Eccentricity E(mm)

  • 58
  • 71

  Clear

• Metal Fitting Specifications

  • Metal Fitting Only - No Wheels
  • The wheels on earth

  Clear

• Shaft Bearing

  • Steel Plate with Bearing

  Clear

• Wheel specification(g)

  • Airless, Solid Tire (Self-sealing Tire)
  • Bridge stone Tire Used
  • Use of Tire Made Overseas
  • Wheel Color Black
  • Wheel Color Gray

  Clear

• Tire width

  • 2
  • 3

  Clear

• Deadweight

  • 2580
  • 3660
  • 3690
  • 5370
  • 5480
  • 7500

  Clear

• Type

  • HLJB

  Clear
