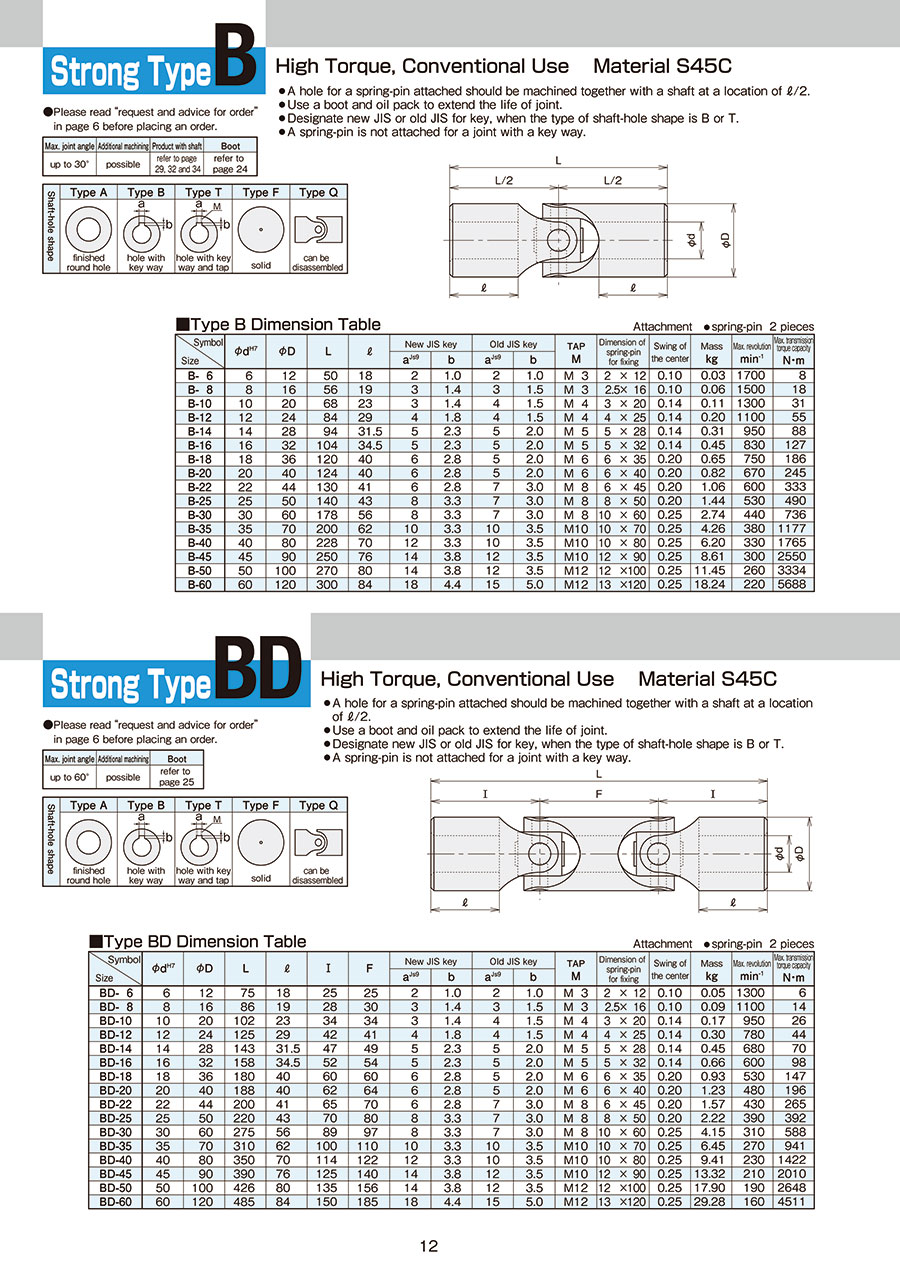

Standard Type Power Type BD Series

Standard Type Power Type BD Series
  • Volume Discount
[Features]
· High torque normal use.
· Material: S45C
· Holes for the spring pins included can be machined in the l/2 position simultaneously with the shaft.
· To extend life, boots and oil pack should be used.
· When the shaft hole shape is B or T, please indicate new JIS key, or previous JIS key.
· With key groove processing, spring pin is not included.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
BD-6-A-A
BD-8-A-A
BD-10-A-A
BD-12-A-A
BD-14-A-A
BD-16-A-A
BD-18-A-A
BD-22-A-A
BD-25-A-A
BD-30-A-A
BD-35-A-A
BD-40-A-A
BD-45-A-A
BD-50-A-A
BD-60-A-A
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSφd
(Ø)
φd
(Ø)
Overall Length
(mm)
Max. Rotational Speed Range
(r/min)
Max. Rotational Speed
(r/min)
Maximum Transmission Capacity
(N▪m)

66.26 €

1 8 Days 10612751,001 to 2,00013006

70.32 €

1 8 Days 10816861,001 to 2,000110014

77.20 €

1 8 Days 101020102301 to 1,00095026

104.82 €

1 8 Days 101224125301 to 1,00078044

95.21 €

1 19 Days 101428143301 to 1,00068070

113.10 €

1 8 Days 101632158301 to 1,00060098

149.88 €

2 8 Days 101836180301 to 1,000530147

218.59 €

1 Available 8 Days 102244200301 to 1,000430265

293.59 €

1 Available 8 Days 102550220301 to 1,000390392

478.69 €

1 Available 8 Days 103060275301 to 1,000310588

597.60 €

1 Available 8 Days 103570310100~300270941

765.01 €

1 Available 8 Days 104080350100~3002301422

938.33 €

1 8 Days 104590390100~3002102010

1,282.16 €

1 8 Days 1050100426100~3001902648

1,905.34 €

1 8 Days 1060120485100~3001604511

Loading...

  1. 1

Basic information

Type Standard Type Feature High Torque Body Material EN 1.1191 Equiv.
Application Standard Shaft hole shape and left (B, T only JIS standards specified) A Shaft hole shape and right (B, T only JIS standards specified) A
Q Type (Decomposition) NA
