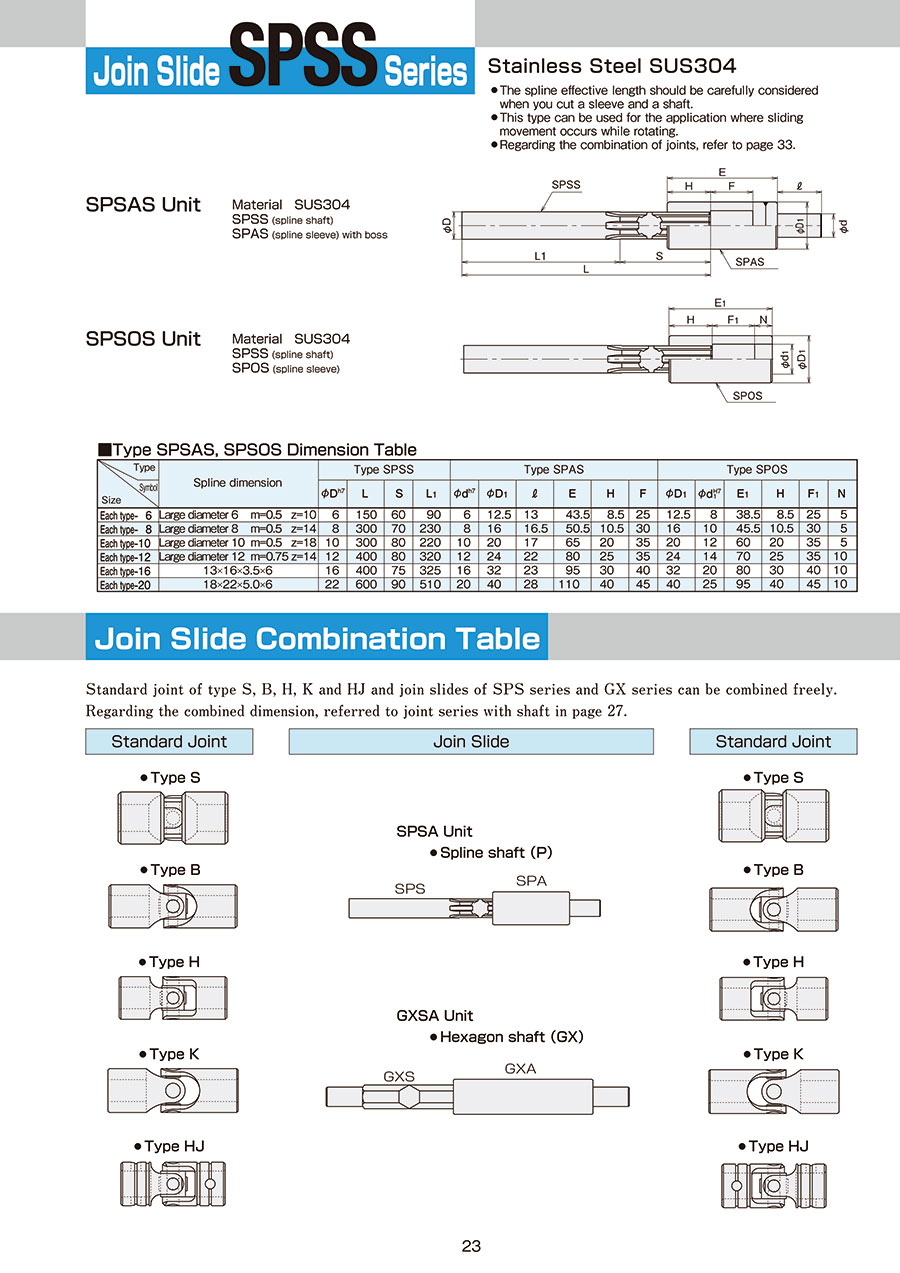

Join Slide SPSS Series
- Volume Discount
[Features]
· Please note the effective spline size for sleeve and shaft cutting.
· Use on the sliding part during rotation.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| SPAS-6 |
| SPAS-8 |
| SPAS-10 |
| SPAS-12 |
| SPAS-16 |
| SPAS-20 |
| SPOS-6 |
| SPOS-8 |
| SPOS-10 |
| SPOS-12 |
| SPOS-16 |
| SPOS-20 |
| SPSAS-8 |
| SPSAS-10 |
| SPSAS-12 |
| SPSS-6 |
| SPSS-8 |
| SPSS-10 |
| SPSS-12 |
| SPSS-16 |
| SPSS-20 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | φd (Ø) | φd (Ø) | Spline Dimension | Joints Slide Details | Sleeve specifications | Shaft Length L (mm) | The length of the sleeve (E, E1) (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
156.70 € | 1 | Available | 8 Days | 10 | 6 | - | Large Diameter 6m=0.5 z=10 | Sleeve | With Hub | - | 43.5 | |
156.85 € | 1 | Available | 8 Days | 10 | 8 | - | Large Diameter 8 m=0.5 z=14 | Sleeve | With Hub | - | 50.5 | |
174.87 € | 1 | Available | 8 Days | 10 | 10 | - | Large Diameter 10 m=0.5 z=18 | Sleeve | With Hub | - | 65 | |
213.46 € | 1 | Available | 8 Days | 10 | 12 | - | Large Diameter 12 m=0.75 z=14 | Sleeve | With Hub | - | 80 | |
272.30 € | 1 | Available | 8 Days | 10 | 16 | - | 13×16×3.5×6 | Sleeve | With Hub | - | 95 | |
355.63 € | 1 | Available | 8 Days | 10 | 20 | - | 18×22×5.0×6 | Sleeve | With Hub | - | 110 | |
118.65 € | 1 | Available | 8 Days | 10 | 8 | - | Large Diameter 6m=0.5 z=10 | Sleeve | Without hub | - | 38.5 | |
118.78 € | 1 | Available | 8 Days | 10 | 10 | - | Large Diameter 8 m=0.5 z=14 | Sleeve | Without hub | - | 45.5 | |
136.74 € | 1 | Available | 8 Days | 10 | 12 | - | Large Diameter 10 m=0.5 z=18 | Sleeve | Without hub | - | 60 | |
160.07 € | 1 | Available | 8 Days | 10 | 14 | - | Large Diameter 12 m=0.75 z=14 | Sleeve | Without hub | - | 70 | |
210.50 € | 1 | Available | 8 Days | 10 | 20 | - | 13×16×3.5×6 | Sleeve | Without hub | - | 80 | |
262.39 € | 1 | Available | 8 Days | 10 | 25 | - | 18×22×5.0×6 | Sleeve | Without hub | - | 95 | |
214.09 € | 1 | 8 Days | 10 | 8 | - | Large Diameter 8 m=0.5 z=14 | Unit (shaft + sleeve) | With Hub | 300 | 50.5 | ||
244.80 € | 1 | Available | 10 Days | 10 | 10 | - | Large Diameter 10 m=0.5 z=18 | Unit (shaft + sleeve) | With Hub | 300 | 65 | |
300.17 € | 1 | 8 Days | 10 | 12 | - | Large Diameter 12 m=0.75 z=14 | Unit (shaft + sleeve) | With Hub | 400 | 80 | ||
81.29 € | 1 | Available | 9 Days | 10 | - | 6 | Large Diameter 6m=0.5 z=10 | Shaft | - | 150 | - | |
81.92 € | 1 | Available | 8 Days | 10 | - | 8 | Large Diameter 8 m=0.5 z=14 | Shaft | - | 300 | - | |
100.06 € | 1 | Available | 8 Days | 10 | - | 10 | Large Diameter 10 m=0.5 z=18 | Shaft | - | 300 | - | |
86.70 € | 1 | Available | 8 Days | 10 | - | 12 | Large Diameter 12 m=0.75 z=14 | Shaft | - | 400 | - | |
206.50 € | 1 | Available | 8 Days | 10 | - | 16 | 13×16×3.5×6 | Shaft | - | 400 | - | |
268.19 € | 1 | Available | 8 Days | 10 | - | 22 | 18×22×5.0×6 | Shaft | - | 600 | - |
Loading...
Basic information
| Type | Shaft Type | Body Material | Stainless Steel (EN 1.4301 Equiv.) | Application | Standard |
|---|
Configure
Basic Attributes
-
φd(Ø)
-
φd(Ø)
-
Spline Dimension
- Large Diameter 6m=0.5 z=10
- Large Diameter 8 m=0.5 z=14
- Large Diameter 10 m=0.5 z=18
- Large Diameter 12 m=0.75 z=14
- 13×16×3.5×6
- 18×22×5.0×6
-
Joints Slide Details
- Shaft
- Sleeve
- Unit (shaft + sleeve)
-
Sleeve specifications
- With Hub
- Without hub
-
Shaft Length L(mm)
-
The length of the sleeve (E, E1)(mm)
-
Type
- SPAS
- SPOS
- SPSAS
- SPSS
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- 8 Days or Less
- 9 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
