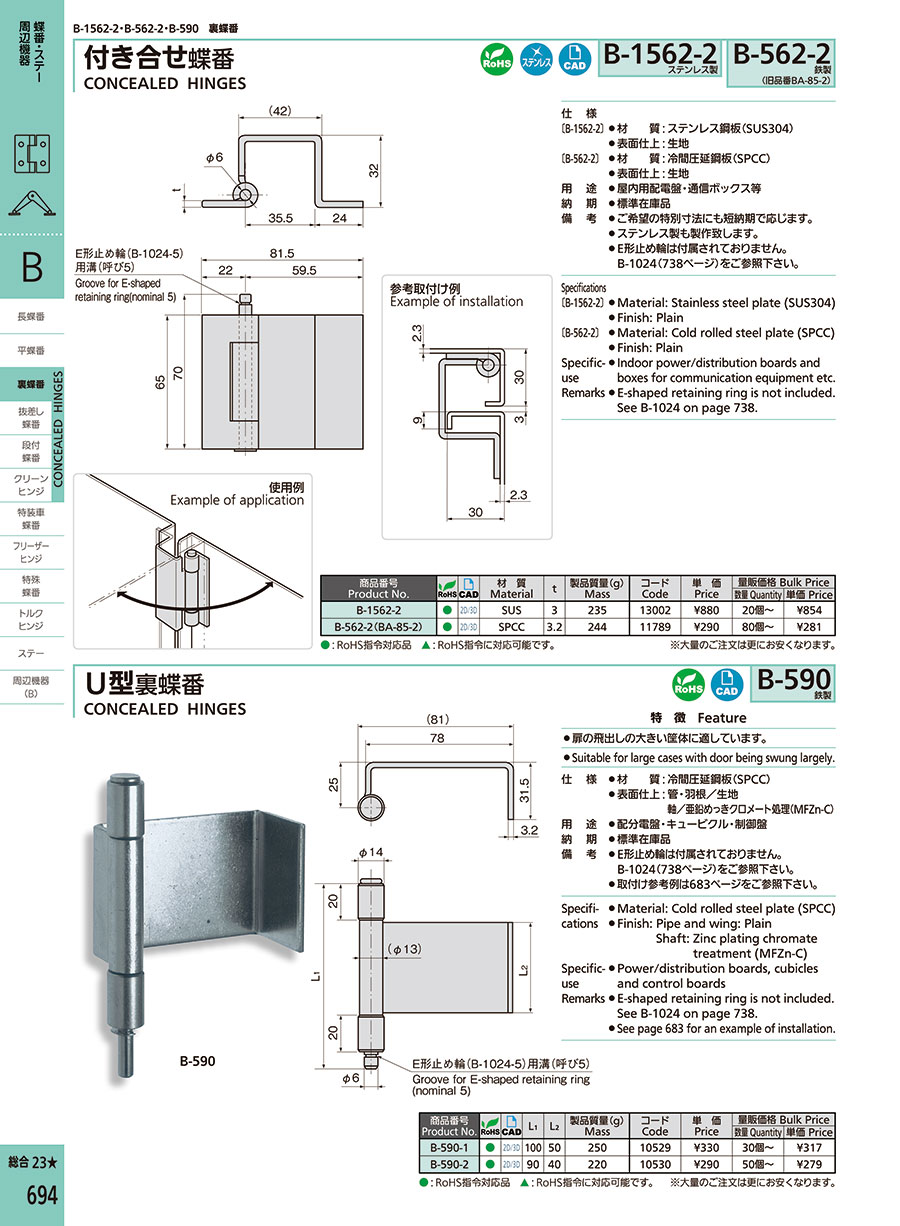

Attached Hinge B-562-2

Attached Hinge B-562-2

[Product Information]
· <Common items>
· Body type: Rear Hinge, Concealed Hinge
· Length L (mm): 65
· Material: Cold rolled steel plate (SPCC)
· Surface Finish: Fabric
· Width W (mm): 81.5
· Plate thickness t (mm): 3.2

PDF

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

B-562-2

Part Number
B-562-2
Part NumberStandard Unit PriceVolume DiscountShipping Days?RoHSShaft Diameter φD
(mm)
Mounting Hole Product Code

6.09 €

4 Days 106NA11789

Loading...

  1. 1

Basic information

Main Body Type Back Hinge / Hidden Hinge Length L *Figure in () is the min length of the adjustable type.(mm) 65 Surface Finish Fabric
Width W(mm) 81.5 Plate Thickness t(mm) 3.2

This page is Attached Hinge B-562-2, part number B-562-2.
You can find the detail information about specifications and dimensions on part number B-562-2.
