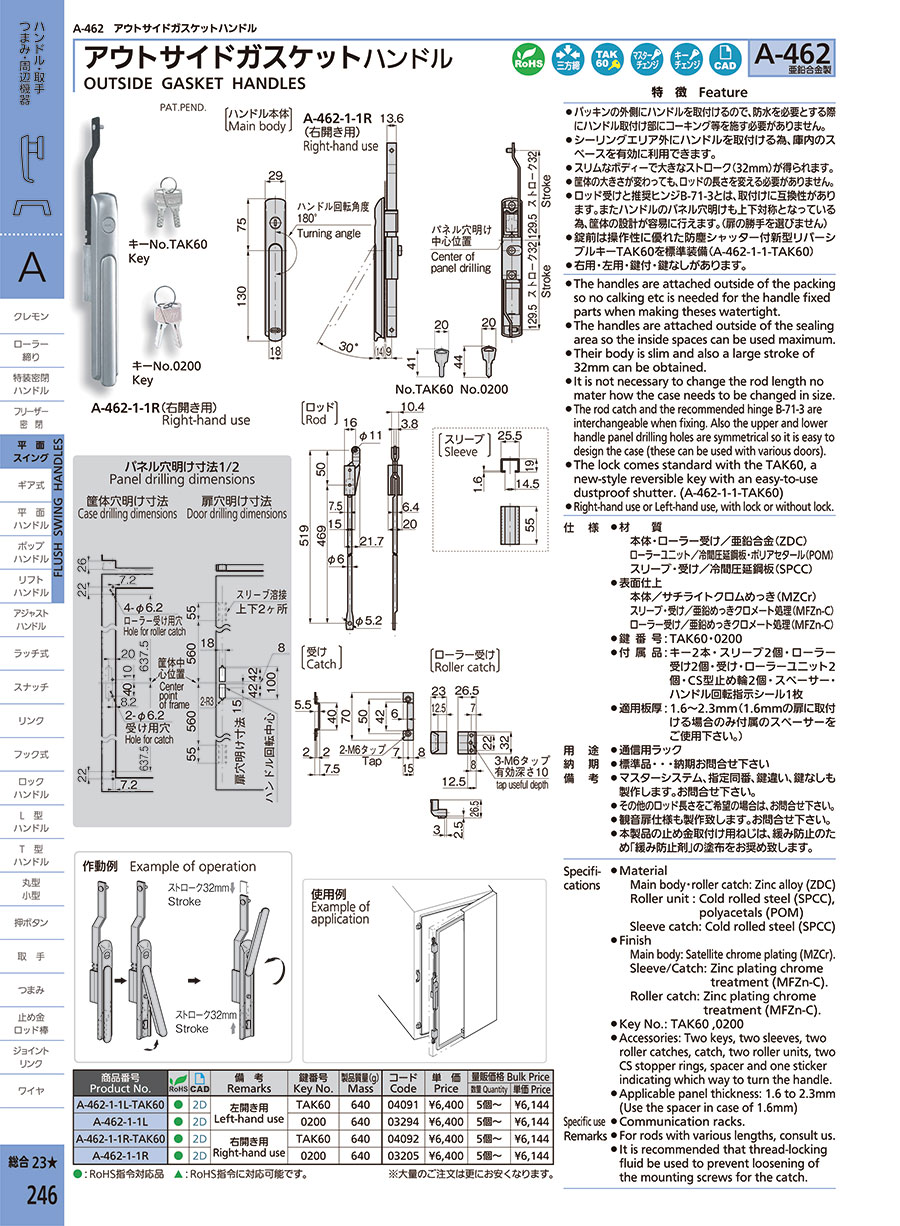

Outside Gasket Handle A-462
[Features]
· No caulking, etc. is required on the handle mounting part when the handle is attached to the outside of the packing.
· Install the handle outside the sealing area, and effectively use the space inside the cabinet.
· Large stroke (32 mm) can be obtained with a slim body.
· Even if the size of the housing changes, it is not necessary to change the length of the rod.
· For rod seat, the recommended hinge B-71-3 is compatible with installation.
· Panel drilling of the handle is also vertically symmetrical, so design of the housing can be done easily (no need to select door arbitrarily).
· A new reversible key with a dust proof shutter with excellent operability, TAK60 is standard equipment. (A-462-1-1-TAK60).
· For right / for left / with keys / without keys
· No caulking, etc. is required on the handle mounting part when the handle is attached to the outside of the packing.
· Install the handle outside the sealing area, and effectively use the space inside the cabinet.
· Large stroke (32 mm) can be obtained with a slim body.
· Even if the size of the housing changes, it is not necessary to change the length of the rod.
· For rod seat, the recommended hinge B-71-3 is compatible with installation.
· Panel drilling of the handle is also vertically symmetrical, so design of the housing can be done easily (no need to select door arbitrarily).
· A new reversible key with a dust proof shutter with excellent operability, TAK60 is standard equipment. (A-462-1-1-TAK60).
· For right / for left / with keys / without keys
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| A-462-1-1L-TAK60 |
| A-462-1-1R |
| A-462-1-1R-TAK60 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Selfishly | Number of Keys | Product Code | |
|---|---|---|---|---|---|---|---|
96.08 € | 1 | 10 Days | For Left Sides | TAK60 | 04091 | ||
96.08 € | 1 | 15 Days | For Right Side | 0200 | 03205 | ||
96.08 € | 1 | 10 Days | For Right Side | TAK60 | 04092 |
Loading...
Basic information
| Material | Zinc Alloy | Finish | Satin Nickel Plating | Accessory | Clasp |
|---|---|---|---|---|---|
| Overall Length(mm) | 205 | Overall Width(mm) | 29 | Full height(mm) | 28 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
