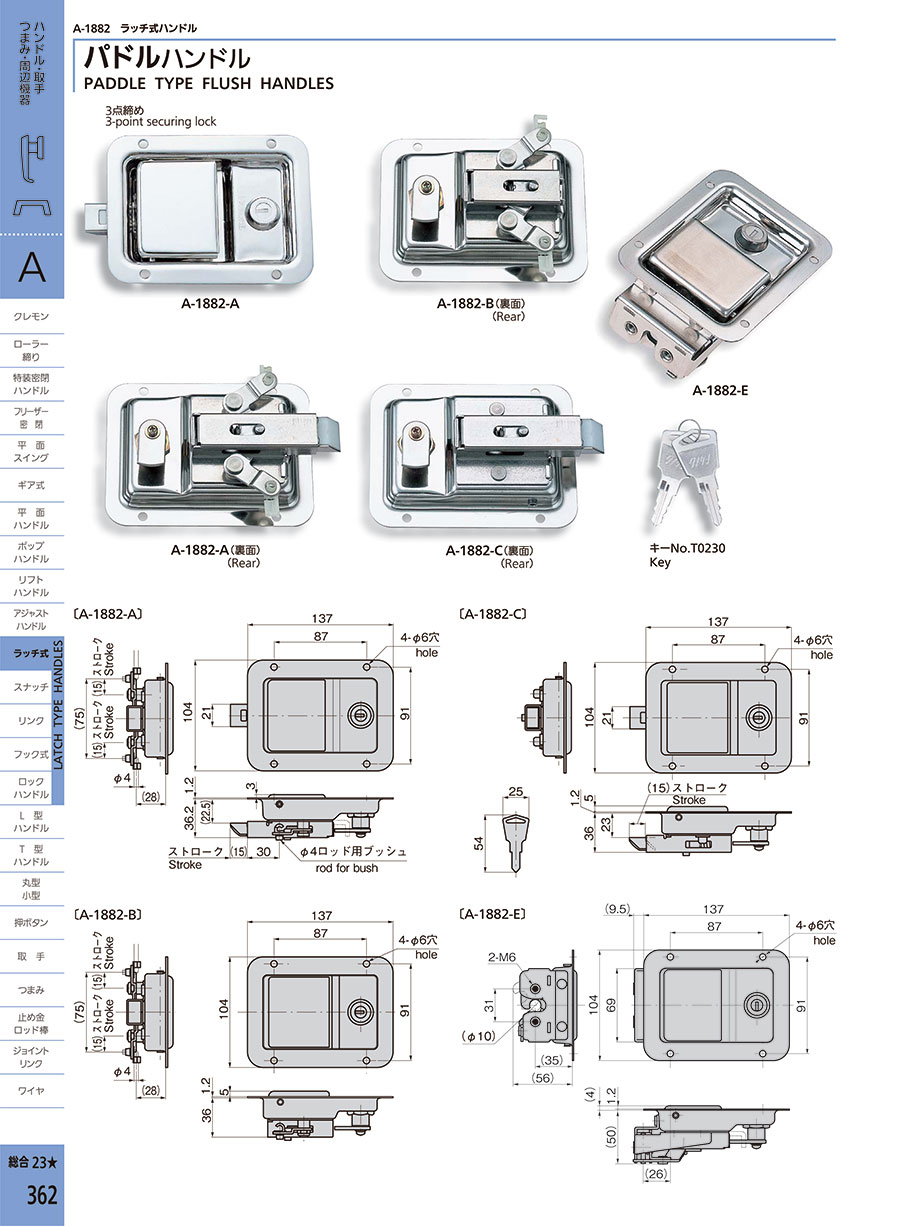

Stainless Steel Paddle Handle A-1882
[Features]
· 1-point tightening (latch type), 2-point tightening, 3-point tightening, and outer/inner handle can be chosen.
· Made of stainless steel, corrosion resistant.
· Lock has a reversible key and a dust-proof shutter.
· Since the resin is built into the latch, operation is smooth.
· A knob for unlocking from inside also can be installed
· 1-point tightening (latch type), 2-point tightening, 3-point tightening, and outer/inner handle can be chosen.
· Made of stainless steel, corrosion resistant.
· Lock has a reversible key and a dust-proof shutter.
· Since the resin is built into the latch, operation is smooth.
· A knob for unlocking from inside also can be installed
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| A-1882-A-1 |
| A-1882-A-2 |
| A-1882-B-1 |
| A-1882-B-2 |
| A-1882-C-1 |
| A-1882-C-2 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Key | Depth (mm) | Product Code | |
|---|---|---|---|---|---|---|---|
86.48 € | 1 | 10 Days | T0230 | 37.4 | 01344 | ||
72.07 € | 1 | 10 Days | No Key | 37.4 | 01632 | ||
84.41 € | 1 | 10 Days | T0230 | 41 | 01595 | ||
69.33 € | 1 | 10 Days | No Key | 41 | 01633 | ||
80.30 € | 1 | 10 Days | T0230 | 42.2 | 01596 | ||
65.20 € | 1 | 35 Days | No Key | 42.2 | 01634 |
Loading...
Basic information
| Main body length(mm) | 137 | Main Body Width(mm) | 104 | Material | Stainless Steel Plate |
|---|---|---|---|---|---|
| Surface Finish | Barrel Polishing |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
