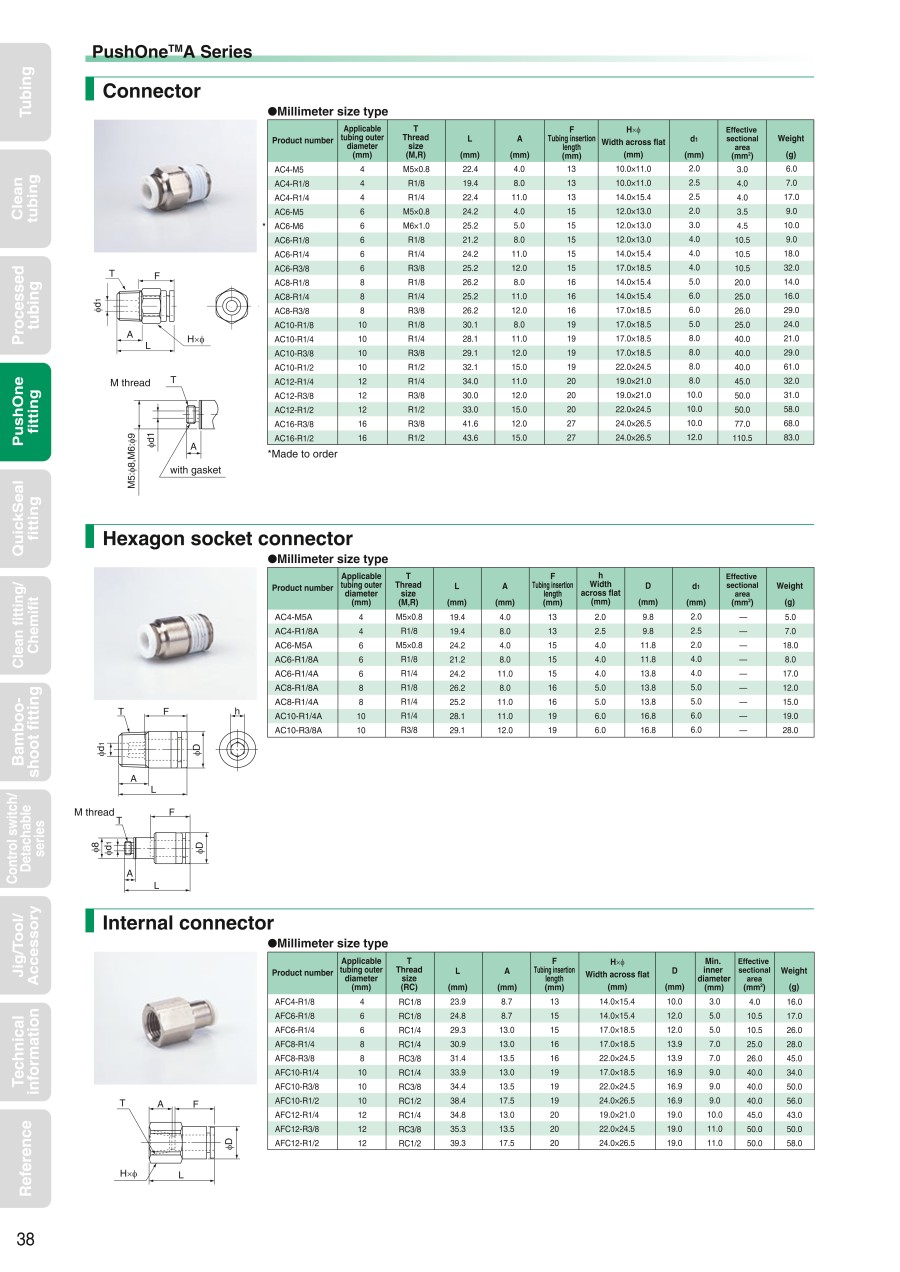

PushOne A Series Hexagonal Socket Head Round Connector

PushOne A Series Hexagonal Socket Head Round Connector

No jigs or tools are required for connecting tubes to this hexagonal socket head connector. Degradation of the surface is minimal and elution of copper ions into liquid is also prevented.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
AC4-M5A
AC4-R1/8A
AC6-M5A
AC6-R1/4A
AC6-R1/8A
AC8-R1/4A
AC8-R1/8A
AC10-R1/4A
AC10-R3/8A
Part NumberStandard Unit PriceVolume DiscountShipping Days?Applicable Tube O.D.1
(φ)
T Screw Size Types of connection screw

3.66 €

24 Days 4M5×0.8M

3.68 €

6 Days 41/8R

10.48 €

6 Days 6M5×0.8M

3.88 €

7 Days 61/4R

3.08 €

6 Days 61/8R

3.49 €

6 Days 81/4R

3.11 €

11 Days 81/8R

4.07 €

6 Days 101/4R

6.69 €

6 Days 103/8R

Loading...

  1. 1

Basic information

Type Push One Fitting Fitting Type Screw Mount Direction Applicable Fluid Water / Air
Body Material Flame Retardant PBT Resin Application For general air pressure Thread Material Brass
Seal Material Special NBR Screw Mounting, Direction Round Connectors with Hex Socket Appearance Color White
Operating Temperature Range (Air During use)(°C) -20 – 80 Operating Temperature Range (Water During use)(°C) 0–40 Plating Process Electroless Nickel Plating
