PushOne E Series, 90° Panel Tough Elbow
No jigs or tools are required for connecting tubes to this 90° panel touch elbow unit. Degradation of the surface is minimal and elution of copper ions into liquid is also prevented.
[Features]
· The tube is connected by PushOne®.
· No need for jigs nor tools to connect the tube.
· Electroless nickel plated.
· There is little deterioration of the surface and elution of copper ions into the fluid is prevented.
· Flame retardant resin (equivalent to UL94 V-0 standard) adopted.
· Non-combustible PBT resin is used for the materials.
· Equivalent to UL94 V-0 standard, with superior self-extinguishing properties.
· Can be used in the environments in which sputtering occurs.
· The R screws are sealed, and thus there is no need to wrap them with sealing tape.
[Features]
· The tube is connected by PushOne®.
· No need for jigs nor tools to connect the tube.
· Electroless nickel plated.
· There is little deterioration of the surface and elution of copper ions into the fluid is prevented.
· Flame retardant resin (equivalent to UL94 V-0 standard) adopted.
· Non-combustible PBT resin is used for the materials.
· Equivalent to UL94 V-0 standard, with superior self-extinguishing properties.
· Can be used in the environments in which sputtering occurs.
· The R screws are sealed, and thus there is no need to wrap them with sealing tape.

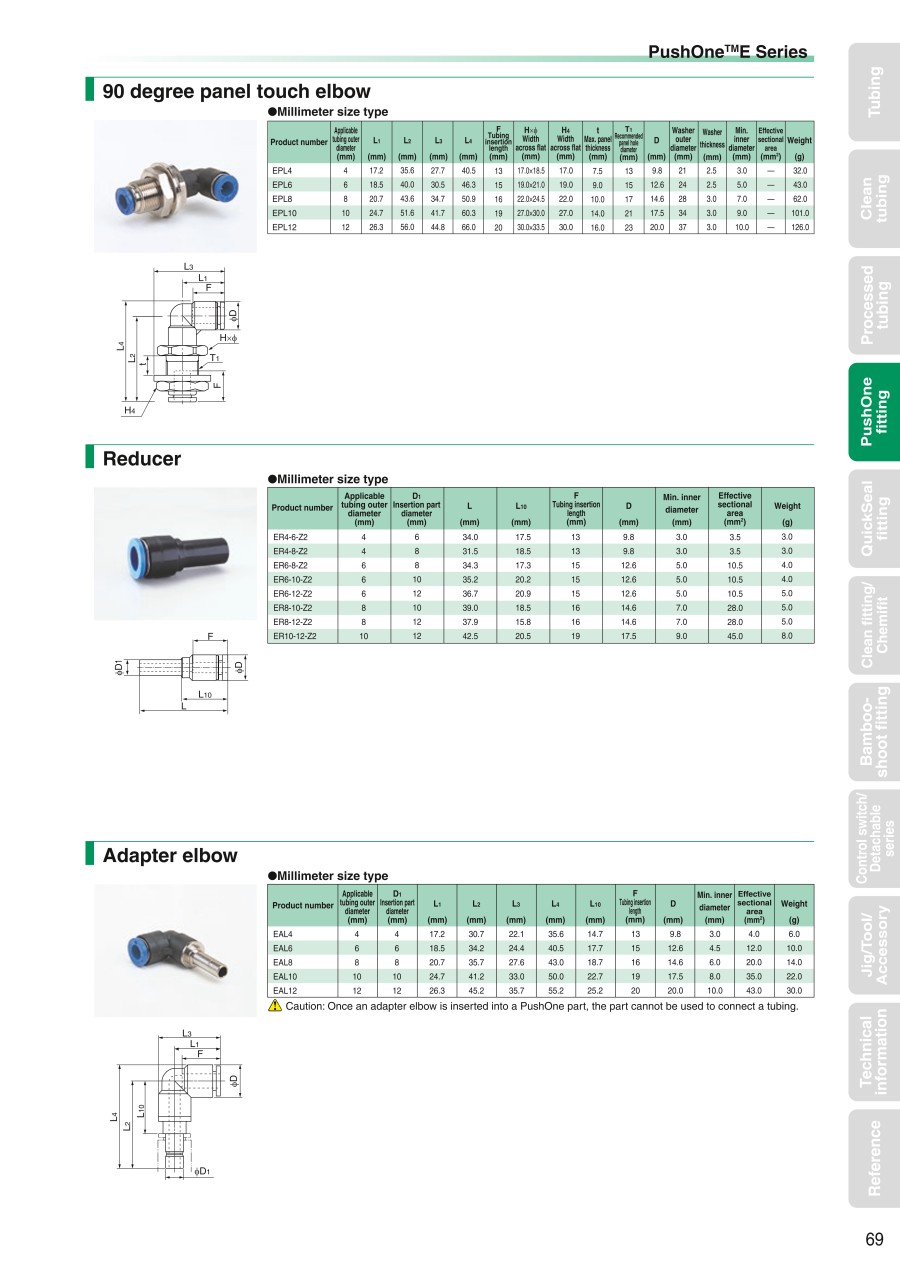

Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Type | Push One Fitting | Fitting Type | Union with same diameter | Applicable Fluid | Water / Air |
|---|---|---|---|---|---|
| Main Body Material | Flame Retardant PBT Resin | Application | For general air pressure | Thread Material | Brass |
| Seal Material | Special NBR | Union: Same Diameter | 90° Panel Touch Elbow | Operating Temperature Range (Air During use)(°C) | -20 – 80 |
| Operating Temperature Range (Water During use)(°C) | 0–40 | Plating Process | Electroless Nickel Plating |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
