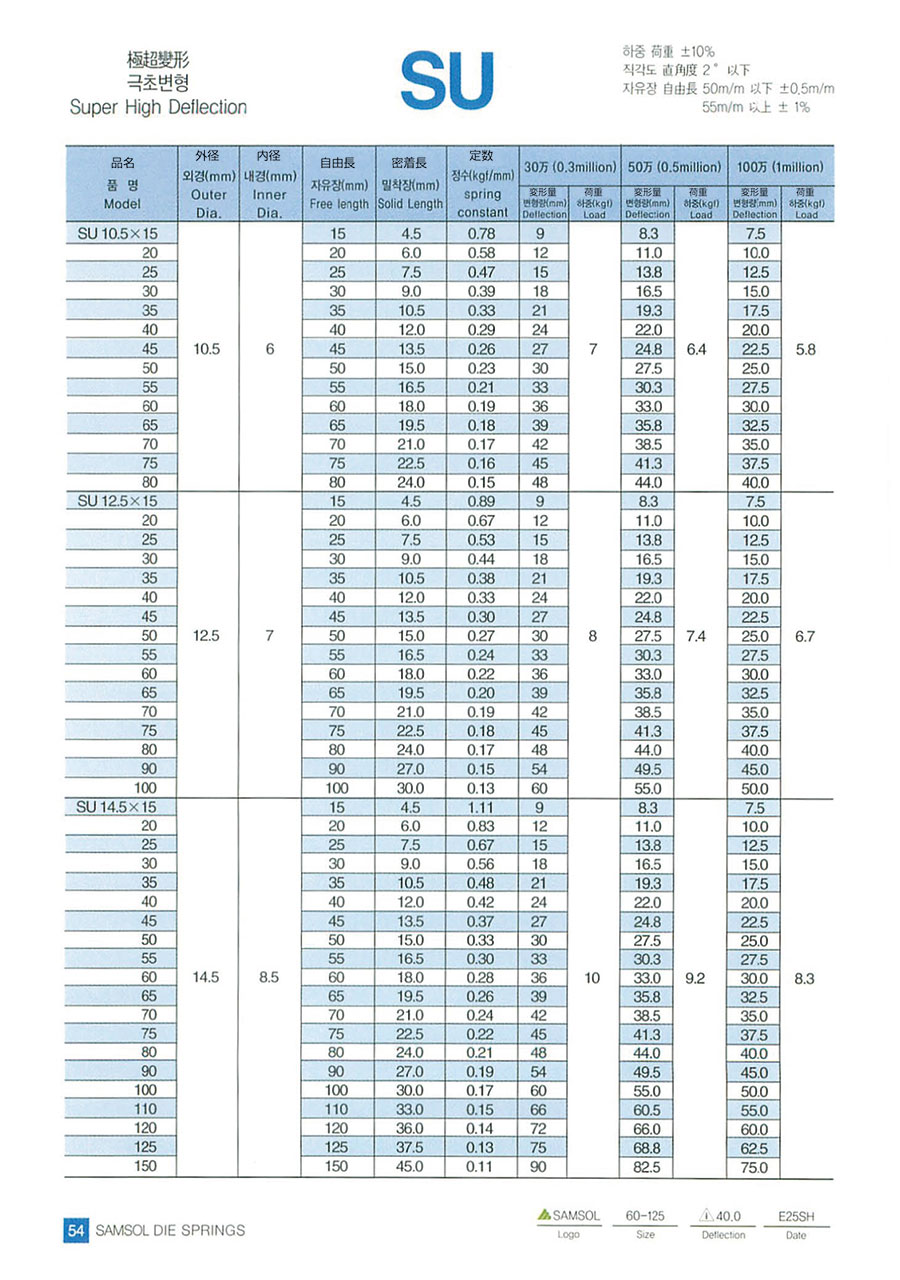

Mold Spring SU (Ultra High Deflection)
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Max. Load (Secified Range) (N) | Customer-Specified Length (mm) | Outer Diameter (mm) | Internal Diameter (mm) | Spring Constant (N/mm) | Maximum Load Capacity | Spring Constant (kgf/mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
2.12 € | 1 | Available |
Same day
Stock | 50.01 to 73.00 | 15 | 10.5 | 6 | 7.644 | 5.8 | 0.78 | |
1.23 € | 1 | 6 Days | 50.01 to 73.00 | 20 | 10.5 | 6 | 5.684 | 5.8 | 0.58 | ||
1.34 € | 1 | Available | 6 Days | 50.01 to 73.00 | 25 | 10.5 | 6 | 4.606 | 5.8 | 0.47 | |
1.54 € | 1 | Available | 6 Days | 50.01 to 73.00 | 35 | 10.5 | 6 | 3.234 | 5.8 | 0.33 | |
1.76 € | 1 | Available |
Same day
Stock | 50.01 to 73.00 | 40 | 10.5 | 6 | 2.842 | 5.8 | 0.29 | |
1.74 € | 1 | Available | 6 Days | 50.01 to 73.00 | 45 | 10.5 | 6 | 2.548 | 5.8 | 0.26 | |
1.74 € | 1 | Available | 6 Days | 50.01 to 73.00 | 50 | 10.5 | 6 | 2.254 | 5.8 | 0.23 | |
1.81 € | 1 | Available | 6 Days | 50.01 to 73.00 | 55 | 10.5 | 6 | 2.058 | 5.8 | 0.21 | |
1.90 € | 1 | Available | 6 Days | 50.01 to 73.00 | 60 | 10.5 | 6 | 1.862 | 5.8 | 0.19 | |
2.01 € | 1 | Available | 6 Days | 50.01 to 73.00 | 65 | 10.5 | 6 | 1.764 | 5.8 | 0.18 | |
2.05 € | 1 | Available | 6 Days | 50.01 to 73.00 | 70 | 10.5 | 6 | 1.666 | 5.8 | 0.17 | |
2.12 € | 1 | Available | 6 Days | 50.01 to 73.00 | 75 | 10.5 | 6 | 1.568 | 5.8 | 0.16 | |
2.21 € | 1 | Available | 6 Days | 50.01 to 73.00 | 80 | 10.5 | 6 | 1.47 | 5.8 | 0.15 | |
1.54 € | 1 | Available | 6 Days | 73.01 to 107.00 | 15 | 12.5 | 7 | 8.722 | 6.7 | 0.89 | |
1.54 € | 1 | Available | 6 Days | 73.01 to 107.00 | 20 | 12.5 | 7 | 6.566 | 6.7 | 0.67 | |
1.65 € | 1 | Available | 6 Days | 73.01 to 107.00 | 25 | 12.5 | 7 | 5.194 | 6.7 | 0.53 | |
1.65 € | 1 | Available | 6 Days | 73.01 to 107.00 | 30 | 12.5 | 7 | 4.312 | 6.7 | 0.44 | |
1.70 € | 1 | Available | 6 Days | 73.01 to 107.00 | 35 | 12.5 | 7 | 3.724 | 6.7 | 0.38 | |
1.81 € | 1 | Available | 6 Days | 73.01 to 107.00 | 40 | 12.5 | 7 | 3.234 | 6.7 | 0.33 | |
1.96 € | 1 | Available | 6 Days | 73.01 to 107.00 | 45 | 12.5 | 7 | 2.94 | 6.7 | 0.30 | |
2.05 € | 1 | Available | 6 Days | 73.01 to 107.00 | 50 | 12.5 | 7 | 2.646 | 6.7 | 0.27 | |
2.12 € | 1 | Available | 6 Days | 73.01 to 107.00 | 55 | 12.5 | 7 | 2.352 | 6.7 | 0.24 | |
2.21 € | 1 | Available | 6 Days | 73.01 to 107.00 | 60 | 12.5 | 7 | 2.156 | 6.7 | 0.22 | |
2.32 € | 1 | Available | 6 Days | 73.01 to 107.00 | 65 | 12.5 | 7 | 1.96 | 6.7 | 0.20 | |
2.41 € | 1 | Available | 6 Days | 73.01 to 107.00 | 70 | 12.5 | 7 | 1.862 | 6.7 | 0.19 | |
2.52 € | 1 | Available | 6 Days | 73.01 to 107.00 | 75 | 12.5 | 7 | 1.764 | 6.7 | 0.18 | |
2.72 € | 1 | Available | 6 Days | 73.01 to 107.00 | 80 | 12.5 | 7 | 1.666 | 6.7 | 0.17 | |
2.83 € | 1 | Available | 6 Days | 73.01 to 107.00 | 90 | 12.5 | 7 | 1.47 | 6.7 | 0.15 | |
3.03 € | 1 | Available | 6 Days | 73.01 to 107.00 | 100 | 12.5 | 7 | 1.274 | 6.7 | 0.13 | |
1.45 € | 1 | Available | 6 Days | 73.01 to 107.00 | 15 | 14.5 | 8.5 | 10.878 | 8.3 | 1.11 | |
1.54 € | 1 | Available | 6 Days | 73.01 to 107.00 | 20 | 14.5 | 8.5 | 8.134 | 8.3 | 0.83 | |
1.74 € | 1 | Available | 6 Days | 73.01 to 107.00 | 25 | 14.5 | 8.5 | 6.566 | 8.3 | 0.67 | |
1.85 € | 1 | Available | 6 Days | 73.01 to 107.00 | 30 | 14.5 | 8.5 | 5.488 | 8.3 | 0.56 | |
1.96 € | 1 | Available | 6 Days | 73.01 to 107.00 | 35 | 14.5 | 8.5 | 4.704 | 8.3 | 0.48 | |
2.05 € | 1 | Available | 6 Days | 73.01 to 107.00 | 40 | 14.5 | 8.5 | 4.116 | 8.3 | 0.42 | |
2.16 € | 1 | Available | 6 Days | 73.01 to 107.00 | 45 | 14.5 | 8.5 | 3.626 | 8.3 | 0.37 | |
2.26 € | 1 | Available | 6 Days | 73.01 to 107.00 | 50 | 14.5 | 8.5 | 3.234 | 8.3 | 0.33 | |
2.37 € | 1 | Available | 6 Days | 73.01 to 107.00 | 55 | 14.5 | 8.5 | 2.94 | 8.3 | 0.30 | |
2.47 € | 1 | 6 Days | 73.01 to 107.00 | 60 | 14.5 | 8.5 | 2.744 | 8.3 | 0.28 | ||
2.68 € | 1 | Available | 6 Days | 73.01 to 107.00 | 65 | 14.5 | 8.5 | 2.548 | 8.3 | 0.26 | |
2.79 € | 1 | Available | 6 Days | 73.01 to 107.00 | 70 | 14.5 | 8.5 | 2.352 | 8.3 | 0.24 | |
2.88 € | 1 | Available | 6 Days | 73.01 to 107.00 | 75 | 14.5 | 8.5 | 2.156 | 8.3 | 0.22 | |
3.03 € | 1 | Available | 6 Days | 73.01 to 107.00 | 80 | 14.5 | 8.5 | 2.058 | 8.3 | 0.21 | |
3.08 € | 1 | Available | 6 Days | 73.01 to 107.00 | 90 | 14.5 | 8.5 | 1.862 | 8.3 | 0.19 | |
3.50 € | 1 | Available |
Same day
Stock | 73.01 to 107.00 | 100 | 14.5 | 8.5 | 1.666 | 8.3 | 0.17 | |
3.39 € | 1 | Available | 6 Days | 73.01 to 107.00 | 110 | 14.5 | 8.5 | 1.47 | 8.3 | 0.15 | |
3.45 € | 1 | Available | 6 Days | 73.01 to 107.00 | 120 | 14.5 | 8.5 | 1.372 | 8.3 | 0.14 | |
3.50 € | 1 | Available | 6 Days | 73.01 to 107.00 | 125 | 14.5 | 8.5 | 1.274 | 8.3 | 0.13 | |
3.70 € | 1 | Available | 6 Days | 73.01 to 107.00 | 150 | 14.5 | 8.5 | 1.078 | 8.3 | 0.11 | |
1.85 € | 1 | Available | 6 Days | 107.01 to 150.00 | 20 | 17 | 10.5 | 12.25 | 12.5 | 1.25 | |
1.85 € | 1 | Available | 6 Days | 107.01 to 150.00 | 25 | 17 | 10.5 | 9.8 | 12.5 | 1.00 | |
1.96 € | 1 | Available | 6 Days | 107.01 to 150.00 | 30 | 17 | 10.5 | 8.134 | 12.5 | 0.83 | |
2.01 € | 1 | Available | 6 Days | 107.01 to 150.00 | 35 | 17 | 10.5 | 6.958 | 12.5 | 0.71 | |
2.05 € | 1 | Available | 6 Days | 107.01 to 150.00 | 40 | 17 | 10.5 | 6.174 | 12.5 | 0.63 | |
2.26 € | 1 | Available | 6 Days | 107.01 to 150.00 | 45 | 17 | 10.5 | 5.488 | 12.5 | 0.56 | |
2.37 € | 1 | Available | 6 Days | 107.01 to 150.00 | 50 | 17 | 10.5 | 4.9 | 12.5 | 0.50 | |
2.57 € | 1 | Available | 6 Days | 107.01 to 150.00 | 55 | 17 | 10.5 | 4.41 | 12.5 | 0.45 | |
2.68 € | 1 | Available | 6 Days | 107.01 to 150.00 | 60 | 17 | 10.5 | 4.116 | 12.5 | 0.42 | |
2.79 € | 1 | Available | 6 Days | 107.01 to 150.00 | 65 | 17 | 10.5 | 3.724 | 12.5 | 0.38 | |
2.88 € | 1 | Available | 6 Days | 107.01 to 150.00 | 70 | 17 | 10.5 | 3.528 | 12.5 | 0.36 |
Loading...
Basic information
| Material | AISI-SAE9254 | Color | Empty |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Max. Load (Secified Range)(N)
- 50.01 to 73.00
- 73.01 to 107.00
- 107.01 to 150.00
- 150.01 to 230.00
- 230.01 to 580.00
- 580.01～
-
Customer-Specified Length(mm)
-
Outer Diameter(mm)
-
Internal Diameter(mm)
-
Spring Constant(N/mm)
- 1.078
- 1.274
- 1.372
- 1.47
- 1.568
- 1.666
- 1.764
- 1.862
- 1.96
- 2.058
- 2.156
- 2.254
- 2.352
- 2.45
- 2.548
- 2.646
- 2.744
- 2.842
- 2.94
- 3.038
- 3.136
- 3.234
- 3.332
- 3.43
- 3.528
- 3.626
- 3.724
- 3.822
- 3.92
- 4.018
- 4.116
- 4.214
- 4.312
- 4.41
- 4.508
- 4.606
- 4.704
- 4.802
- 4.9
- 4.998
- 5.096
- 5.194
- 5.39
- 5.488
- 5.684
- 5.782
- 5.88
- 6.174
- 6.272
- 6.37
- 6.566
- 6.86
- 6.958
- 7.546
- 7.644
- 7.742
- 8.134
- 8.232
- 8.33
- 8.526
- 8.722
- 8.82
- 8.918
- 9.408
- 9.506
- 9.604
- 9.8
- 10.192
- 10.388
- 10.78
- 10.878
- 10.976
- 11.27
- 11.858
- 12.25
- 12.446
- 12.544
- 12.838
- 13.818
- 13.916
- 14.014
- 14.994
- 15.386
- 15.484
- 16.366
- 17.052
- 17.738
- 19.208
-
Maximum Load Capacity
-
Spring Constant(kgf/mm)
- 0.11
- 0.13
- 0.14
- 0.15
- 0.16
- 0.17
- 0.18
- 0.19
- 0.20
- 0.21
- 0.22
- 0.23
- 0.24
- 0.25
- 0.26
- 0.27
- 0.28
- 0.29
- 0.30
- 0.31
- 0.32
- 0.33
- 0.34
- 0.35
- 0.36
- 0.37
- 0.38
- 0.39
- 0.40
- 0.41
- 0.42
- 0.43
- 0.44
- 0.45
- 0.46
- 0.47
- 0.48
- 0.49
- 0.50
- 0.51
- 0.52
- 0.53
- 0.55
- 0.56
- 0.58
- 0.59
- 0.60
- 0.63
- 0.64
- 0.65
- 0.67
- 0.70
- 0.71
- 0.77
- 0.78
- 0.79
- 0.83
- 0.84
- 0.85
- 0.87
- 0.89
- 0.90
- 0.91
- 0.96
- 0.97
- 0.98
- 1.00
- 1.04
- 1.06
- 1.10
- 1.11
- 1.12
- 1.15
- 1.21
- 1.25
- 1.27
- 1.28
- 1.31
- 1.41
- 1.42
- 1.43
- 1.53
- 1.57
- 1.58
- 1.67
- 1.74
- 1.81
- 1.96
-
Type
- SU10.5
- SU12.5
- SU14.5
- SU17
- SU21
- SU26
- SU31
- SU37
- SU43
Filter by standard shipping days
-
- All
- Same day
- 6 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
