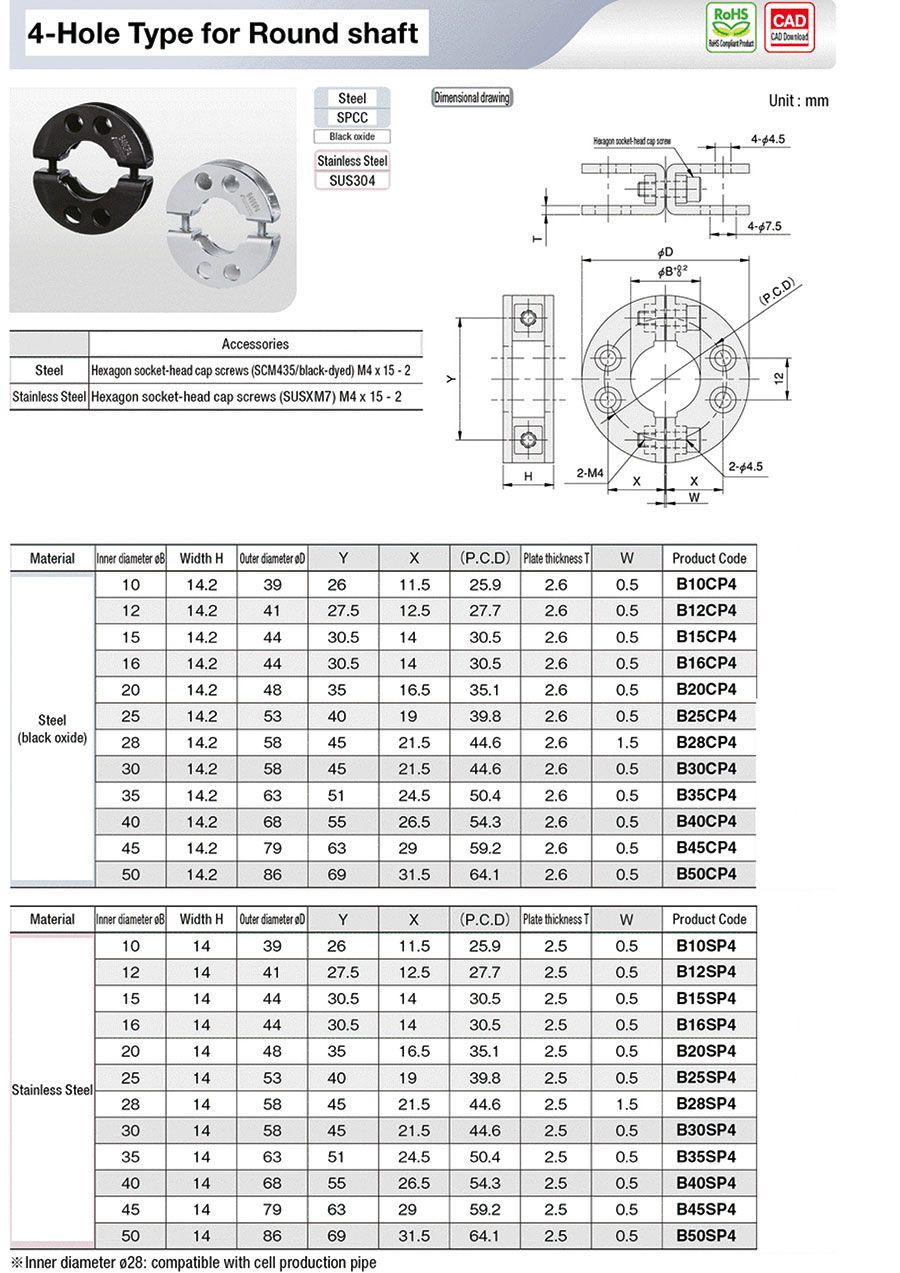

Shaft Bracket, Four-Hole Type

Shaft Bracket, Four-Hole Type
  • Volume Discount

Due to the separate structure bracket, it can be retrofitted to a shaft. Useful for mounting sensors when machinery is already assembled, as well as during remodeling or maintenance projects.

PDF

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
B10CP4
B10SP4
B12CP4
B12SP4
B15CP4
B15SP4
B16CP4
B16SP4
B20CP4
B20SP4
B25CP4
B25SP4
B28CP4
B28SP4
B30CP4
B30SP4
B35CP4
B35SP4
B40CP4
B40SP4
B45CP4
B45SP4
B50CP4
B50SP4
Part NumberStandard Unit PriceVolume DiscountShipping Days?RoHSI.D. B Outer Diameter D Material Surface Treatment Applied or Not Plate Thickness t
(mm)
Material Surface Treatment

10.05 €

8 Days 101039IronSurface Treatment2.6EN 1.0330 Equiv.Black Oxide

12.92 €

8 Days 101039Stainless SteelNo Surface Treatment2.5Stainless Steel (EN 1.4301 Equiv.)NA

10.46 €

8 Days 101241IronSurface Treatment2.6EN 1.0330 Equiv.Black Oxide

13.92 €

8 Days 101241Stainless SteelNo Surface Treatment2.5Stainless Steel (EN 1.4301 Equiv.)NA

10.85 €

8 Days 101544IronSurface Treatment2.6EN 1.0330 Equiv.Black Oxide

14.91 €

8 Days 101544Stainless SteelNo Surface Treatment2.5Stainless Steel (EN 1.4301 Equiv.)NA

11.04 €

8 Days 101644IronSurface Treatment2.6EN 1.0330 Equiv.Black Oxide

15.41 €

8 Days 101644Stainless SteelNo Surface Treatment2.5Stainless Steel (EN 1.4301 Equiv.)NA

11.43 €

8 Days 102048IronSurface Treatment2.6EN 1.0330 Equiv.Black Oxide

17.49 €

4 Days 102048Stainless SteelNo Surface Treatment2.5Stainless Steel (EN 1.4301 Equiv.)NA

11.84 €

8 Days 102553IronSurface Treatment2.6EN 1.0330 Equiv.Black Oxide

17.39 €

8 Days 102553Stainless SteelNo Surface Treatment2.5Stainless Steel (EN 1.4301 Equiv.)NA

12.06 €

4 Days 102858IronSurface Treatment2.6EN 1.0330 Equiv.Black Oxide

19.48 €

Available Same day

Stock

102858Stainless SteelNo Surface Treatment2.5Stainless Steel (EN 1.4301 Equiv.)NA

12.23 €

8 Days 103058IronSurface Treatment2.6EN 1.0330 Equiv.Black Oxide

18.39 €

20 Days 103058Stainless SteelNo Surface Treatment2.5Stainless Steel (EN 1.4301 Equiv.)NA

12.92 €

20 Days 103563IronSurface Treatment2.6EN 1.0330 Equiv.Black Oxide

19.38 €

20 Days 103563Stainless SteelNo Surface Treatment2.5Stainless Steel (EN 1.4301 Equiv.)NA

15.01 €

4 Days 104068IronSurface Treatment2.6EN 1.0330 Equiv.Black Oxide

21.47 €

Available Same day

Stock

104068Stainless SteelNo Surface Treatment2.5Stainless Steel (EN 1.4301 Equiv.)NA

14.91 €

8 Days 104579IronSurface Treatment2.6EN 1.0330 Equiv.Black Oxide

21.37 €

20 Days 104579Stainless SteelNo Surface Treatment2.5Stainless Steel (EN 1.4301 Equiv.)NA

15.90 €

8 Days 105086IronSurface Treatment2.6EN 1.0330 Equiv.Black Oxide

23.45 €

4 Days 105086Stainless SteelNo Surface Treatment2.5Stainless Steel (EN 1.4301 Equiv.)NA

Loading...

  1. 1

Basic information

Tightening Method Separate Specifications With side mounting hole Thickness Standard Type
Side Surface Machining 4-Hole Shaft Shape Round Shaft
