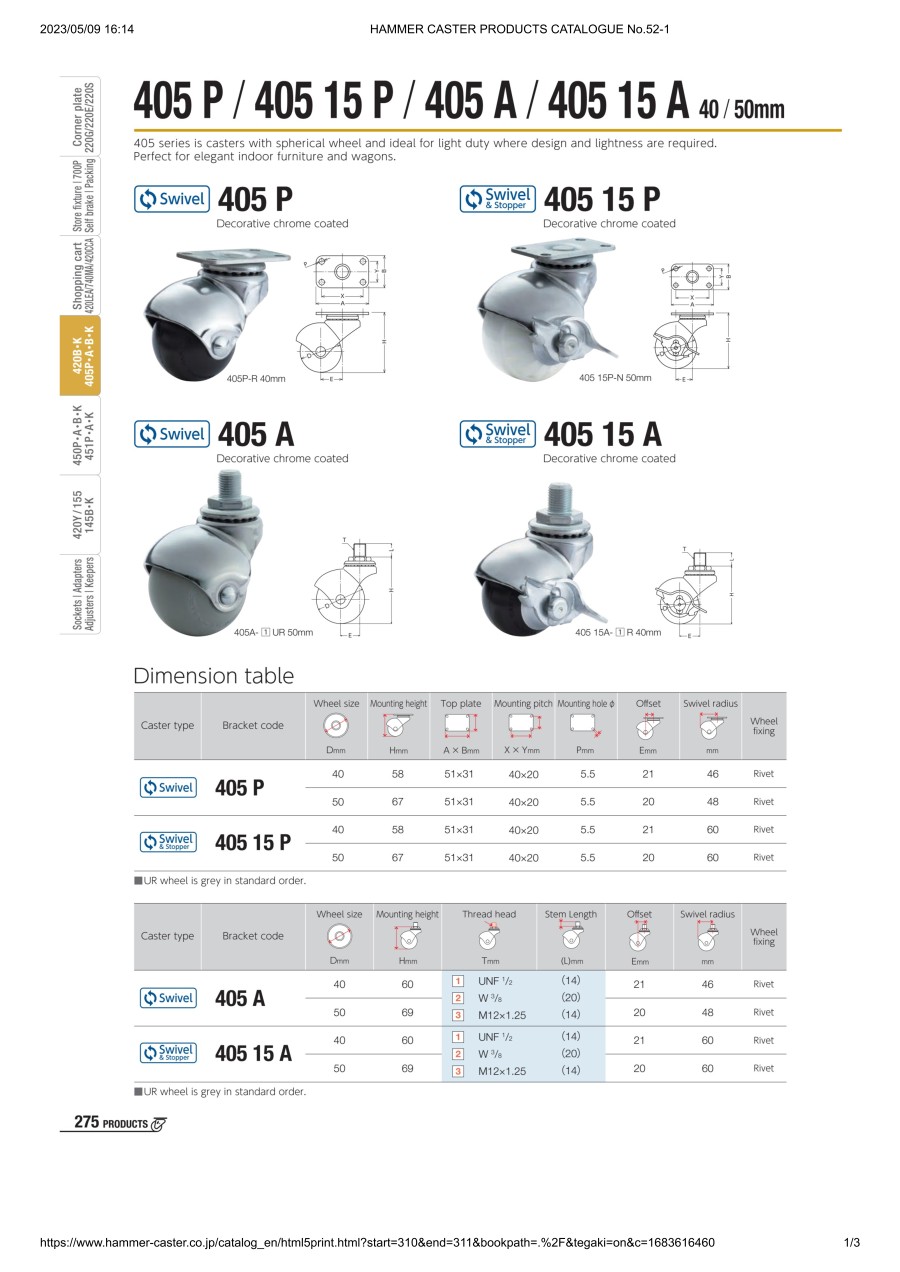

Castors for Light Loads 405P / 405 15P / 405A / 405 15A Wheel Diameter 40 mm / 50 mm
- Volume Discount
[Features]
· 405P: Swivel type, main body chrome-plated (mounting base has undergone trivalent chromium conversion treatment).
· 40515P: Swivel type, with stopper, main body chrome-plated (handle and mounting base have undergone trivalent chromium conversion treatment)
· 405A: Swivel type, main body chrome-plated.
· 40515A: Swivel type, with stopper, main body chrome-plated (handle has undergone trivalent chromium conversion treatment).
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H or H1 and H2 (mm) | Stopper | Allowable Load 1 piece (daN) | Wheel Material | Wheel Characteristics | Mounting Hole Pitch Longitudinal direction (X) (mm) | Mounting Hole Pitch Transverse Direction (Y) (mm) | Mounting Seat A (Plate Length) (mm) | Mounting Seat B (Plate Width) (mm) | Screw T or Mounting Screw Hole M | Wheel Dia. D (mm) | Car width (mm) | Swivel Radius (mm) | Mounting Hole Diameter P (mm) | Eccentricity E or E1, E2 (mm) | Axial length L (mm) | Part Number | Variety of Vehicles | Wheel configuration | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.75 € | 1 | 11 Days | Screw-In Type | 60 | With Rotation Stopper | 25 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | - | - | - | - | UNF1/2 | 40 | 38 | 60 | - | 21.0 | 14 | 15A | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
9.17 € | 1 | 11 Days | Screw-In Type | 69 | With Rotation Stopper | 30 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | - | - | - | - | UNF1/2 | 50 | 46 | 60 | - | 20.0 | 14 | 15A | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
7.69 € | 1 | 11 Days | Screw-In Type | 60 | With Rotation Stopper | 25 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | - | - | - | - | W3/8 | 40 | 38 | 60 | - | 21.0 | 20 | 15A | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
9.10 € | 1 | 11 Days | Screw-In Type | 69 | With Rotation Stopper | 30 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | - | - | - | - | W3/8 | 50 | 46 | 60 | - | 20.0 | 20 | 15A | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
7.72 € | 1 | 11 Days | Screw-In Type | 60 | With Rotation Stopper | 25 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | - | - | - | - | M12×1.25 | 40 | 38 | 60 | - | 21.0 | 14 | 15A | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
9.13 € | 1 | 13 Days | Screw-In Type | 69 | With Rotation Stopper | 30 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | - | - | - | - | M12×1.25 | 50 | 46 | 60 | - | 20.0 | 14 | 15A | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
7.21 € | 1 | 8 Days | Swiveling Direct Mount Plate | 58 | With Rotation Stopper | 25 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis) | 40 | 20 | 51 | 31 | - | 40 | - | 60 | 5.5 | 21.0 | - | 15P | N | Nylon Integral Wheel | ||
7.83 € | 1 | 8 Days | Swiveling Direct Mount Plate | 67 | With Rotation Stopper | 30 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis) | 40 | 20 | 51 | 31 | - | 50 | - | 60 | 5.5 | 20.0 | - | 15P | N | Nylon Integral Wheel | ||
8.65 € | 1 | 6 Days | Swiveling Direct Mount Plate | 58 | With Rotation Stopper | 20 | Rubber | - | 40 | 20 | 51 | 31 | - | 40 | - | 60 | 5.5 | 21.0 | - | 15P | R | Rubber Integrated Wheels Containing Resin Bush | ||
10.22 € | 1 | 6 Days | Swiveling Direct Mount Plate | 67 | With Rotation Stopper | 25 | Rubber | - | 40 | 20 | 51 | 31 | - | 50 | - | 60 | 5.5 | 20.0 | - | 15P | R | Rubber Integrated Wheels Containing Resin Bush | ||
9.17 € | 1 | 11 Days | Swiveling Direct Mount Plate | 67 | With Rotation Stopper | 30 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | 40 | 20 | 51 | 31 | - | 50 | - | 60 | 5.5 | 20.0 | - | 15P | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
6.32 € | 1 | 11 Days | Screw-In Type | 60 | NA | 25 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | - | - | - | - | UNF1/2 | 40 | - | 46 | - | 21.0 | 14 | A | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
7.67 € | 1 | 11 Days | Screw-In Type | 69 | NA | 30 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | - | - | - | - | UNF1/2 | 50 | - | 48 | - | 20.0 | 14 | A | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
6.26 € | 1 | 11 Days | Screw-In Type | 60 | NA | 25 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | - | - | - | - | W3/8 | 40 | - | 46 | - | 21.0 | 20 | A | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
7.61 € | 1 | 11 Days | Screw-In Type | 69 | NA | 30 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | - | - | - | - | W3/8 | 50 | - | 48 | - | 20.0 | 20 | A | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
6.30 € | 1 | 11 Days | Screw-In Type | 60 | NA | 25 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | - | - | - | - | M12×1.25 | 40 | - | 46 | - | 21.0 | 14 | A | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
7.64 € | 1 | 13 Days | Screw-In Type | 69 | NA | 30 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | - | - | - | - | M12×1.25 | 50 | - | 48 | - | 20.0 | 14 | A | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
5.79 € | 1 | 8 Days | Swiveling Direct Mount Plate | 58 | NA | 25 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis) | 40 | 20 | 51 | 31 | - | 40 | - | 46 | 5.5 | 21.0 | - | P | N | Nylon Integral Wheel | ||
6.43 € | 1 | 8 Days | Swiveling Direct Mount Plate | 67 | NA | 30 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis) | 40 | 20 | 51 | 31 | - | 50 | - | 48 | 5.5 | 20.0 | - | P | N | Nylon Integral Wheel | ||
7.22 € | 1 | 6 Days | Swiveling Direct Mount Plate | 58 | NA | 20 | Rubber | - | 40 | 20 | 51 | 31 | - | 40 | - | 46 | 5.5 | 21.0 | - | P | R | Rubber Integrated Wheels Containing Resin Bush | ||
8.71 € | 1 | 6 Days | Swiveling Direct Mount Plate | 67 | NA | 25 | Rubber | - | 40 | 20 | 51 | 31 | - | 50 | - | 48 | 5.5 | 20.0 | - | P | R | Rubber Integrated Wheels Containing Resin Bush | ||
6.52 € | 1 | 6 Days | Swiveling Direct Mount Plate | 58 | NA | 25 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | 40 | 20 | 51 | 31 | - | 40 | - | 46 | 5.5 | 21.0 | - | P | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel | ||
7.86 € | 1 | 6 Days | Swiveling Direct Mount Plate | 67 | NA | 30 | Urethane | Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) | 40 | 20 | 51 | 31 | - | 50 | - | 48 | 5.5 | 20.0 | - | P | UR | Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel |
Loading...
Basic information
| Load Range(daN) | ~35.00 | Fitting Material | Steel | Load Category | Light Load |
|---|---|---|---|---|---|
| (Metal Fitting/Main Body) Processing - Finish | Chrome Plating Finish | Swiveling/Fixed | Swiveling |
Configure
Basic Attributes
-
Caster Type
- Swiveling Direct Mount Plate
- Screw-In Type
-
Mounting Height H or H1 and H2(mm)
-
Stopper
- NA
- With Rotation Stopper
-
Allowable Load 1 piece(daN)
-
Wheel Material
- Rubber
- Nylon
- Urethane
-
Wheel Characteristics
- Abrasion Resistance
- Gasoline Resistance
- Oil Resistance (Machine Oil)
- Chemical Resistance (Weak Acids/Alkalis)
-
Mounting Hole Pitch Longitudinal direction (X)(mm)
-
Mounting Hole Pitch Transverse Direction (Y)(mm)
-
Mounting Seat A (Plate Length)(mm)
-
Mounting Seat B (Plate Width)(mm)
-
Screw T or Mounting Screw Hole M
-
Wheel Dia. D(mm)
-
Car width(mm)
-
Swivel Radius(mm)
-
Mounting Hole Diameter P(mm)
-
Eccentricity E or E1, E2(mm)
-
Axial length L(mm)
-
Part Number
-
Variety of Vehicles
-
Type
- 40515A
- 40515P
- 405A
- 405P
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 6 Days or Less
- 8 Days or Less
- 11 Days or Less
- 13 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
