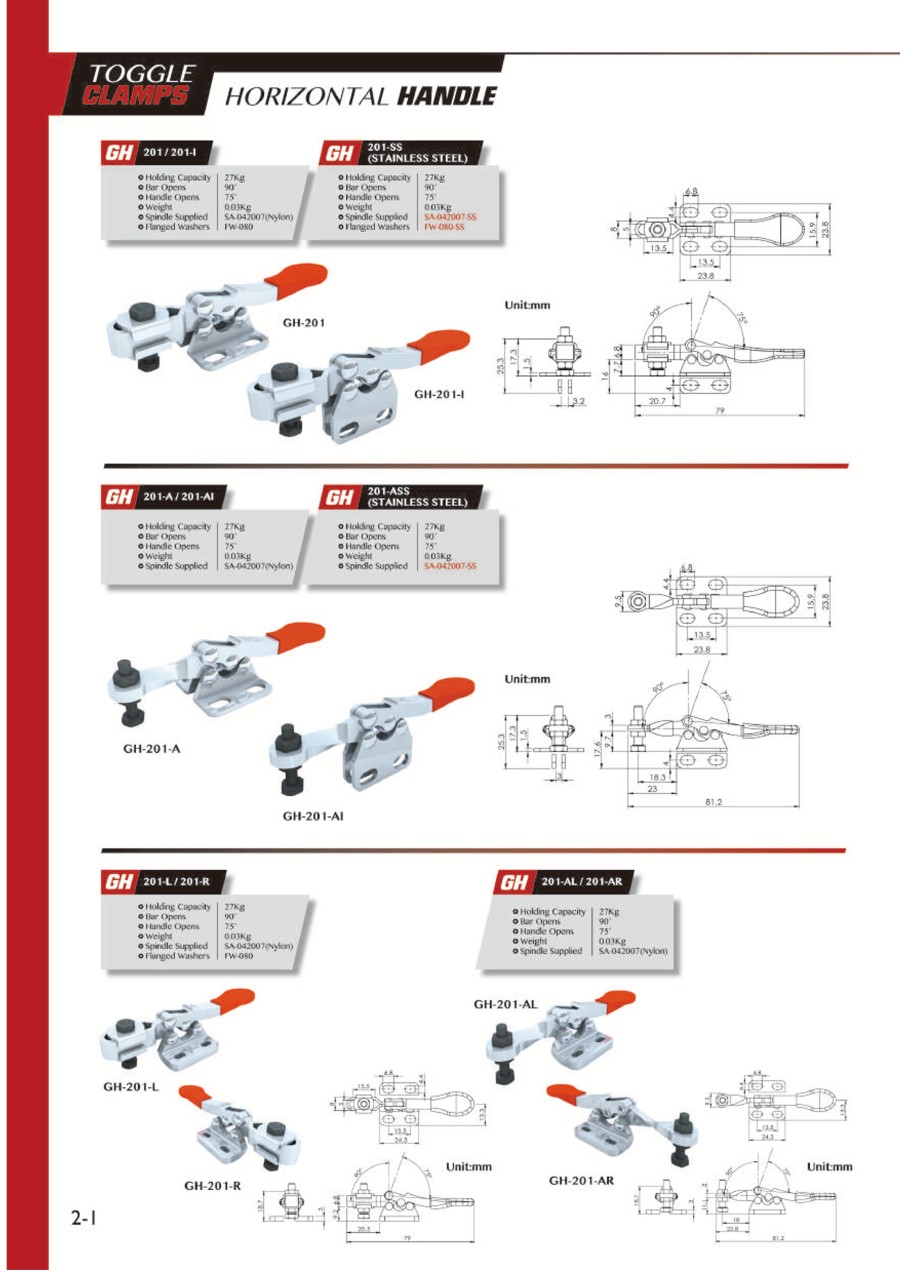

Toggle Clamp - Horizontal - Fixed-Main-Axis Arm (Straight Base) GH-201-AI
Product Details:
Manufacturer part number: GH-201-AI
Brand: GOODHANDCLAMP
Price: 15.56 €
Delivery time: 5 Days
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
GH-201-AI
Basic information
| Attaching Method | Straight base | Tightening Force (MAX)(N) | 270 | Body Material | EN 1.0038 Equiv. |
|---|---|---|---|---|---|
| Clamp Screw Size | No. 8 | Clamp Screw Material | NYLON66 | Tightening Force (Range Selectable)(N) | 500 to 2279 |
| Tip Bolt Type | Nylon Bolt | Tip Bolt Position Adjustment1 | Not Adjustable (Fixed) |
This page is Toggle Clamp - Horizontal - Fixed-Main-Axis Arm (Straight Base) GH-201-AI, part number GH-201-AI.
You can find the detail information about specifications and dimensions on part number GH-201-AI.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
