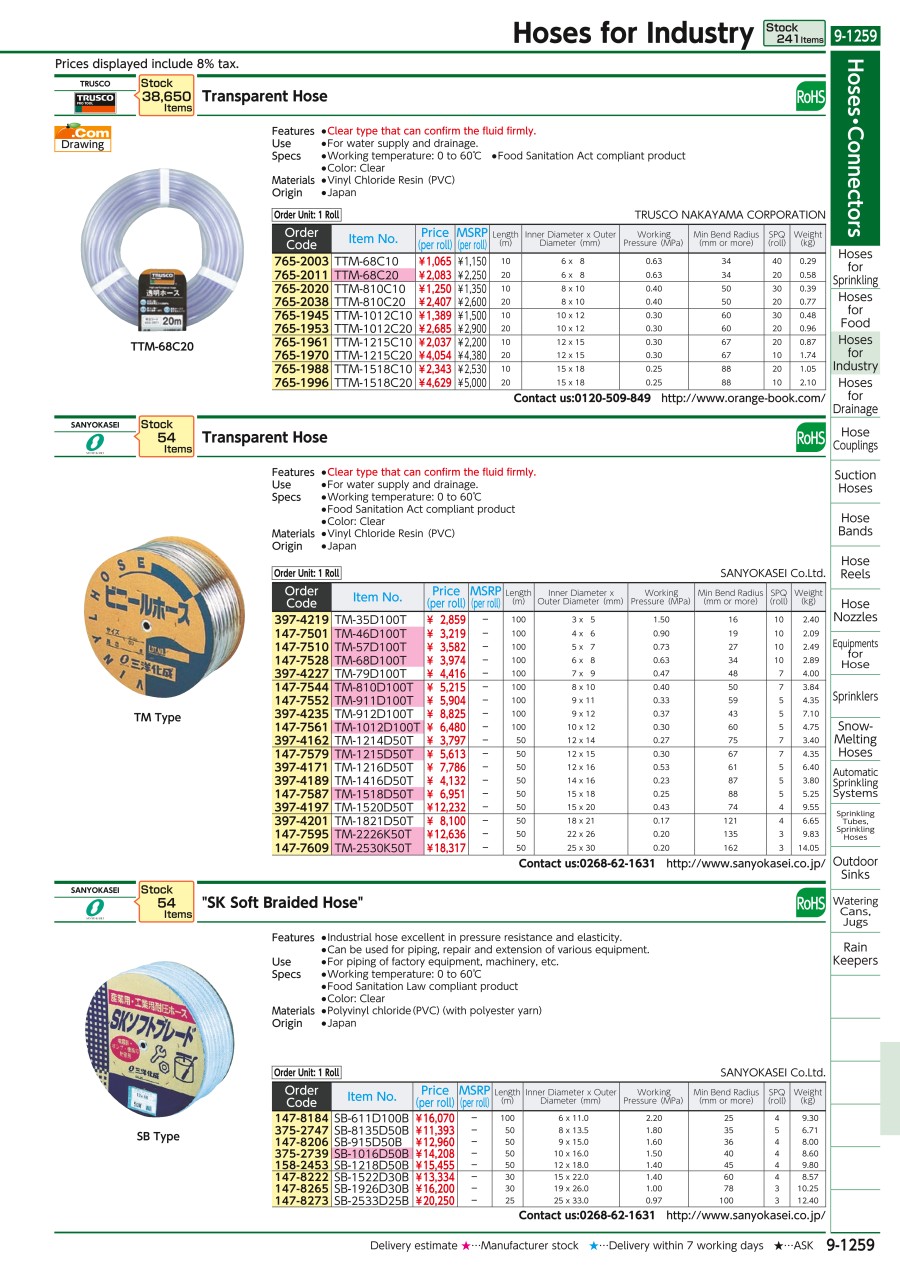

Transparent Hose PVC Resin. Length: 10·20 m
● Clear construction allows for easy checking of fluid.
● Conforms to Food Sanitation Act of Japan.
[Application]
● Water supply and drainage.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| TTM-68C10 |
| TTM-68C20 |
| TTM-1012C10 |
| TTM-1012C20 |
| TTM-1215C10 |
| TTM-1215C20 |
| TTM-1518C10 |
| TTM-1518C20 |
| TTM-810C10 |
| TTM-810C20 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal I.D. d | O.D. D (mm) | Length (m) | JAN Code | Order Code | Mass (kg) | Operating Pressure (MPa) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
13.38 € | 1 | 6 Days | 6 | 8 | 10 | 4989999388121 | 765-2003 | 0.29 | 0.63 | ||
26.33 € | 1 | 6 Days | 6 | 8 | 20 | 4989999388138 | 765-2011 | 0.58 | 0.63 | ||
18.77 € | 1 | 6 Days | 10 | 12 | 10 | 4989999388169 | 765-1945 | 0.48 | 0.3 | ||
36.51 € | 1 | 6 Days | 10 | 12 | 20 | 4989999388176 | 765-1953 | 0.96 | 0.3 | ||
29.71 € | 1 | 6 Days | 12 | 15 | 10 | 4989999388183 | 765-1961 | 0.87 | 0.3 | ||
58.89 € | 1 | 6 Days | 12 | 15 | 20 | 4989999388190 | 765-1970 | 1.74 | 0.3 | ||
34.66 € | 1 | 6 Days | 15 | 18 | 10 | 4989999388206 | 765-1988 | 1.05 | 0.25 | ||
68.66 € | 1 | 6 Days | 15 | 18 | 20 | 4989999388213 | 765-1996 | 2.10 | 0.25 | ||
16.98 € | 1 | 6 Days | 8 | 10 | 10 | 4989999388145 | 765-2020 | 0.39 | 0.40 | ||
32.07 € | 1 | 6 Days | 8 | 10 | 20 | 4989999388152 | 765-2038 | 0.77 | 0.40 |
Loading...
Basic information
| Applicable Fluid / Usage | Water | Cutting Service Usage | NA | Properties | Standard |
|---|---|---|---|---|---|
| Mounting Metal Fittings | NA | Ordering Unit(Coil) | 1 | Operating Temperature Range(°C) | 0–60 |
Configure
Basic Attributes
-
Nominal I.D. d
-
O.D. D(mm)
-
Length(m)
- 10
- 20
-
JAN Code
-
Order Code
-
Type
- TTM
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
