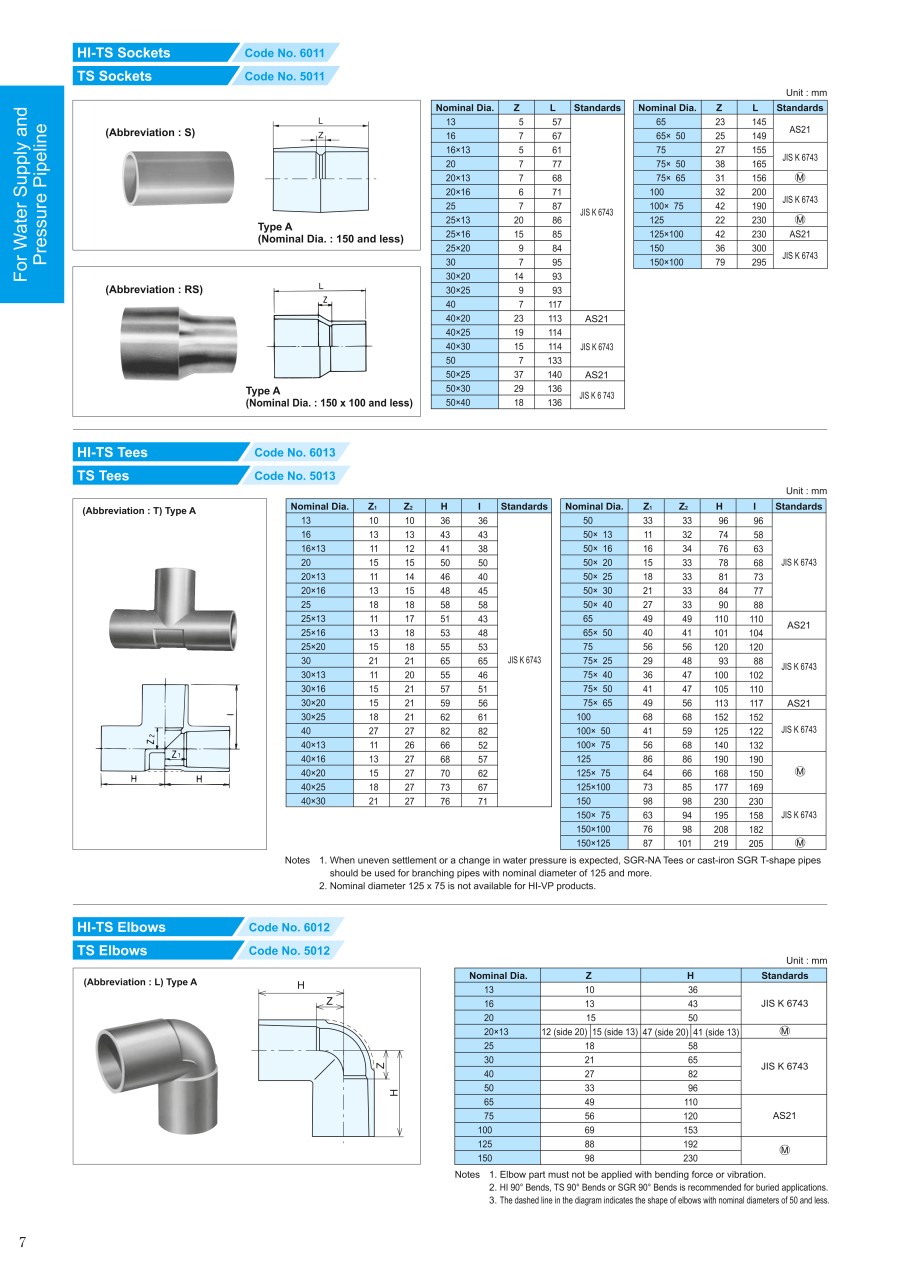

TS Fitting Tees
• The joint offers superior corrosion and chemical resistance properties.
[Application]
• industrial water supply piping in general industry and industrial facilities.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| TST13 |
| TST16 |
| TST20 |
| TST25 |
| TST30 |
| TST40 |
| TST50 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Applicable Pipe Outer Dia. D (D1) (Ø) | Nominal Diameter of PVC Pipe (mm) | D (mm) | H (mm) | I (mm) | Z1 (mm) | Z2 (mm) | JAN Code | Order Code | Mass (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.90 € | 1 | 6 Days | 18 | 13 | 24 | 36 | 36 | 10 | 10 | 4997983102233 | 446-5423 | 32 | ||
1.43 € | 1 | 6 Days | 22 | 16 | - | 43 | 43 | 13 | 13 | 4997983102240 | 446-5431 | 49 | ||
1.90 € | 1 | 6 Days | 26 | 20 | 33 | 50 | 50 | 15 | 15 | 4997983102257 | 446-5458 | 70 | ||
2.93 € | 1 | 6 Days | 32 | 25 | 40 | 58 | 58 | 18 | 18 | 4997983102264 | 446-5482 | 112 | ||
3.83 € | 1 | 6 Days | 38 | 30 | - | 65 | 65 | 21 | 21 | 4997983102271 | 446-5521 | 145 | ||
6.64 € | 1 | 6 Days | 48 | 40 | 57 | 82 | 82 | 27 | 27 | 4997983102288 | 446-5571 | 252 | ||
10.88 € | 1 | 6 Days | 60 | 50 | 70 | 96 | 96 | 33 | 33 | 4997983102295 | 446-5601 | 405 |
Loading...
Basic information
| Type | Fitting | Material | Vinyl Chloride | Applicable Fluid | Water |
|---|---|---|---|---|---|
| Connection Type | Pipe⇔Pipe, same diameters | Connection Type - Equal Diameter Tube | Tee | Material of Applicable Pipe | PVC |
| Max. Operating Pressure(MPa) | 1 | Surface Treatment | NA | Operating Temperature Range(°C) | 5::35 |
| Standard | JIS, K6743 Standard | Number Contained In A Packet | 1 |
Configure
Basic Attributes
-
Applicable Pipe Outer Dia. D (D1)(Ø)
-
Nominal Diameter of PVC Pipe(mm)
-
D(mm)
-
H(mm)
-
I(mm)
-
Z1(mm)
-
Z2(mm)
-
JAN Code
-
Order Code
-
Type
- TST
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
