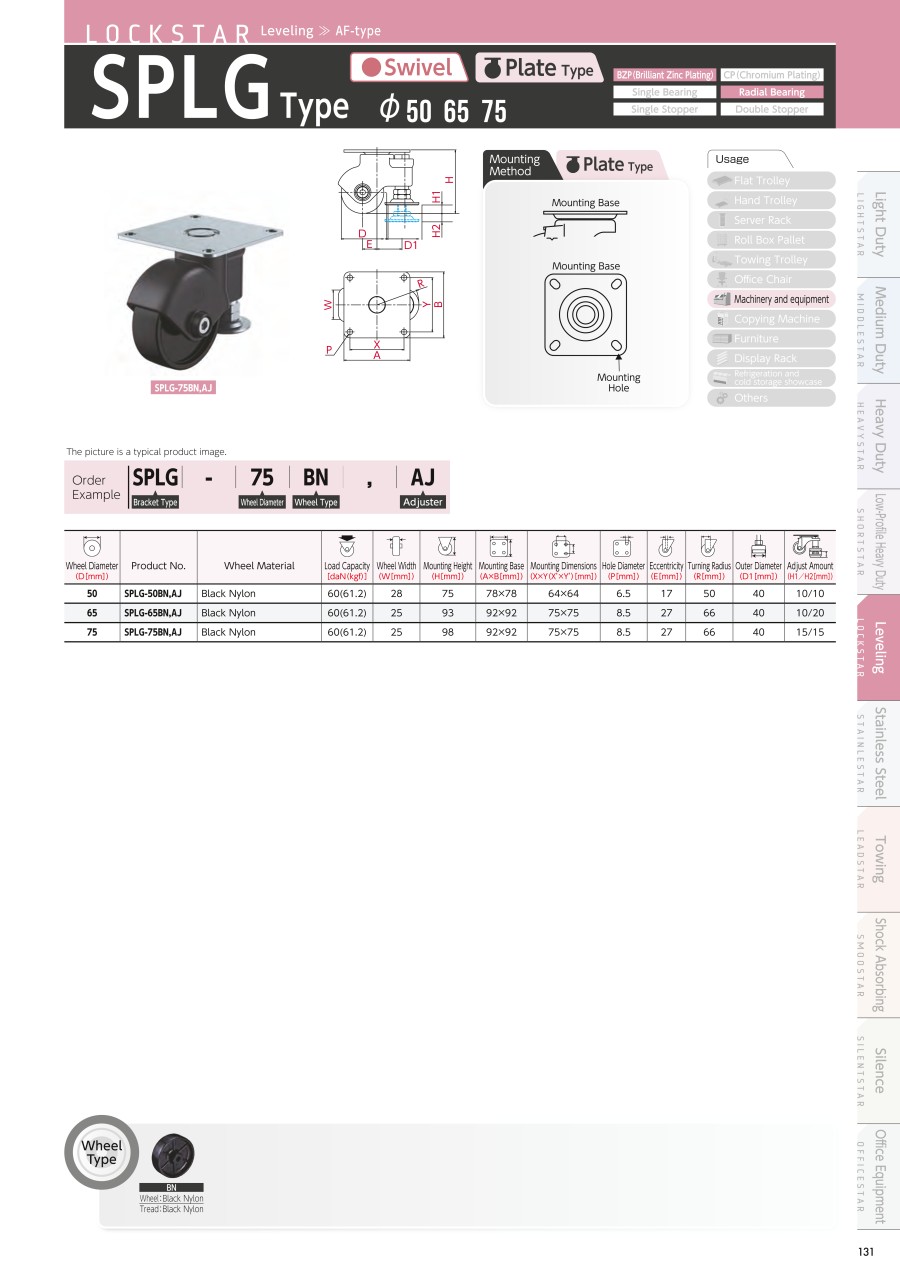

Castors with Adjuster Foot Type Swivel Wheel Plate Type (for Light Loads)
· Features the functions of both a caster and adjuster at the same time.
· Ideal for the loading of lightweight machinery, etc.
· Can be used as a caster during transport and fixed as an adjuster foot at the time of installation.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| SPLG-50BN-AJ |
| SPLG-65BN-AJ |
| SPLG-75BN-AJ |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Mounting Hole Pitch, Long Length Direction L1 (mm) | Mounting Hole Pitch, Short Length Direction W1 (mm) | Plate Length (mm) | Plate Width (mm) | Wheel Dia. D (mm) | Wheel Width (mm) | JAN Code | Order Code | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
18.00 € | 1 | 8 Days | 75 | 64 | 64 | 78 | 78 | 50 | 28 | 4580322260277 | 437-2492 | ||
21.23 € | 1 | 7 Days | 93 | 75 | 75 | 92 | 92 | 65 | 25 | 4580322260284 | 437-2506 | ||
24.31 € | 1 | 7 Days | 98 | 75 | 75 | 92 | 92 | 75 | 25 | 4580322260291 | 437-2514 |
Loading...
Basic information
| Caster Type | Plate Type Universal | Load Range(daN) | 35.01~80.00 | Stopper | NA |
|---|---|---|---|---|---|
| Allowable Load(daN) | 60 | Wheel Material | Black nylon | Wheel Characteristics | NA |
| Fitting Material | Steel | Mounting Hole Type | Round Hole | Load Category | Light Load |
| Wheel Bearings | NA |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Mounting Hole Pitch, Long Length Direction L1(mm)
-
Mounting Hole Pitch, Short Length Direction W1(mm)
-
Plate Length(mm)
-
Plate Width(mm)
-
Wheel Dia. D(mm)
-
Wheel Width(mm)
-
Type
- SPLG
Filter by standard shipping days
-
- All
- 7 Days or Less
- 8 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
