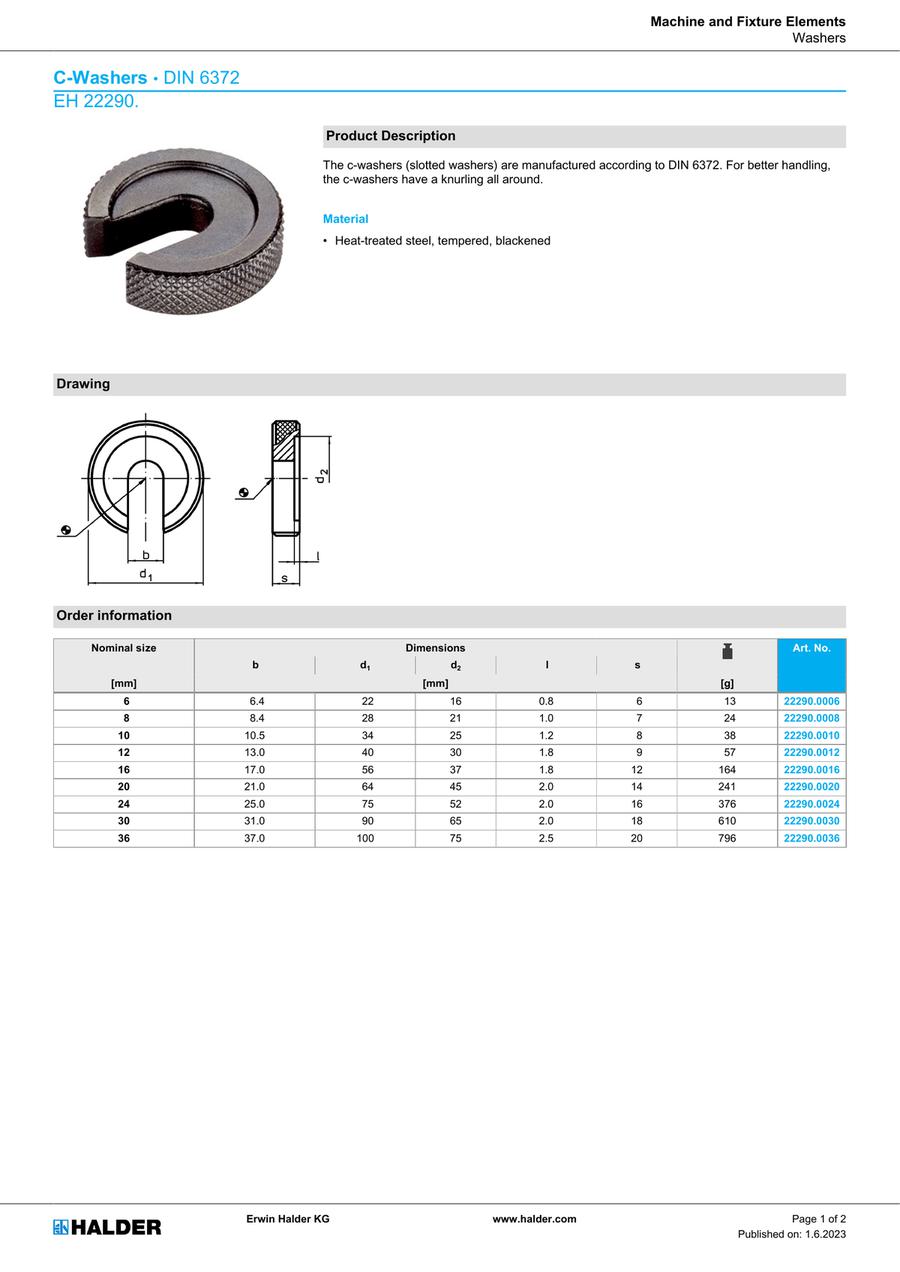

Forehead C-washers / steel / burnished / DIN 6372
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Example
Part Number
|
|---|
| 22290.0006 |
| 22290.0008 |
| 22290.0010 |
| 22290.0012 |
| 22290.0016 |
| 22290.0020 |
| 22290.0024 |
| 22290.0030 |
| 22290.0036 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | d1 (mm) | d2 (mm) | s (mm) | d3 (mm) | b (mm) | l (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.85 € | 18 | 2 Days | - | 22 | 6.4 | 6 | 6 | 6.4 | 0.8 | |||
8.46 € | 1 | 2 Days | 10 | 28 | 8.4 | 7 | 8 | 8.4 | 1 | |||
9.86 € | 1 |
Same day
Stock | 10 | 34 | 10.5 | 8 | 10 | 10.5 | 1.2 | |||
10.68 € | 1 | 2 Days | 10 | 40 | 13 | 9 | 12 | 13 | 1.8 | |||
16.57 € | 1 |
Same day
Stock | 10 | 56 | 17 | 12 | 16 | 17 | 1.8 | |||
27.02 € | 1 | 3 Days | 10 | 64 | 21 | 14 | 20 | 21 | 2 | |||
32.49 € | 1 | 2 Days | 10 | 75 | 25 | 16 | 24 | 25 | 2 | |||
49.13 € | 1 | 2 Days | 10 | 90 | 31 | 18 | 30 | 31 | 2 | |||
60.03 € | 1 | 2 Days | 10 | 100 | 37 | 20 | 36 | 37 | 2.5 |
Loading...
Basic information
| Shape | Straight | Inner Shape | Slotted Holes / Notched | Material | Heat Treatment Steel |
|---|---|---|---|---|---|
| Surface Treatment | Triiron Film | Conflict Minerals free | yes | REACH compliant | yes |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
d1(mm)
-
d2(mm)
-
s(mm)
-
d3(mm)
- 6
- 8
- 10
- 12
- 16
- 20
- 24
- 30
- 36
-
b(mm)
-
l(mm)
-
Type
- 22290
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- Same day
- 2 Days or Less
- 3 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
