Spring Plungers, headed, with ball and slot

Spring Plungers, headed, with ball and slot

Click on this image to zoom in.

Click on this image to zoom in.

  • Spring Plungers, headed, with ball and slot

HALDER

HALDER

Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
Precise screwing depth due to head.

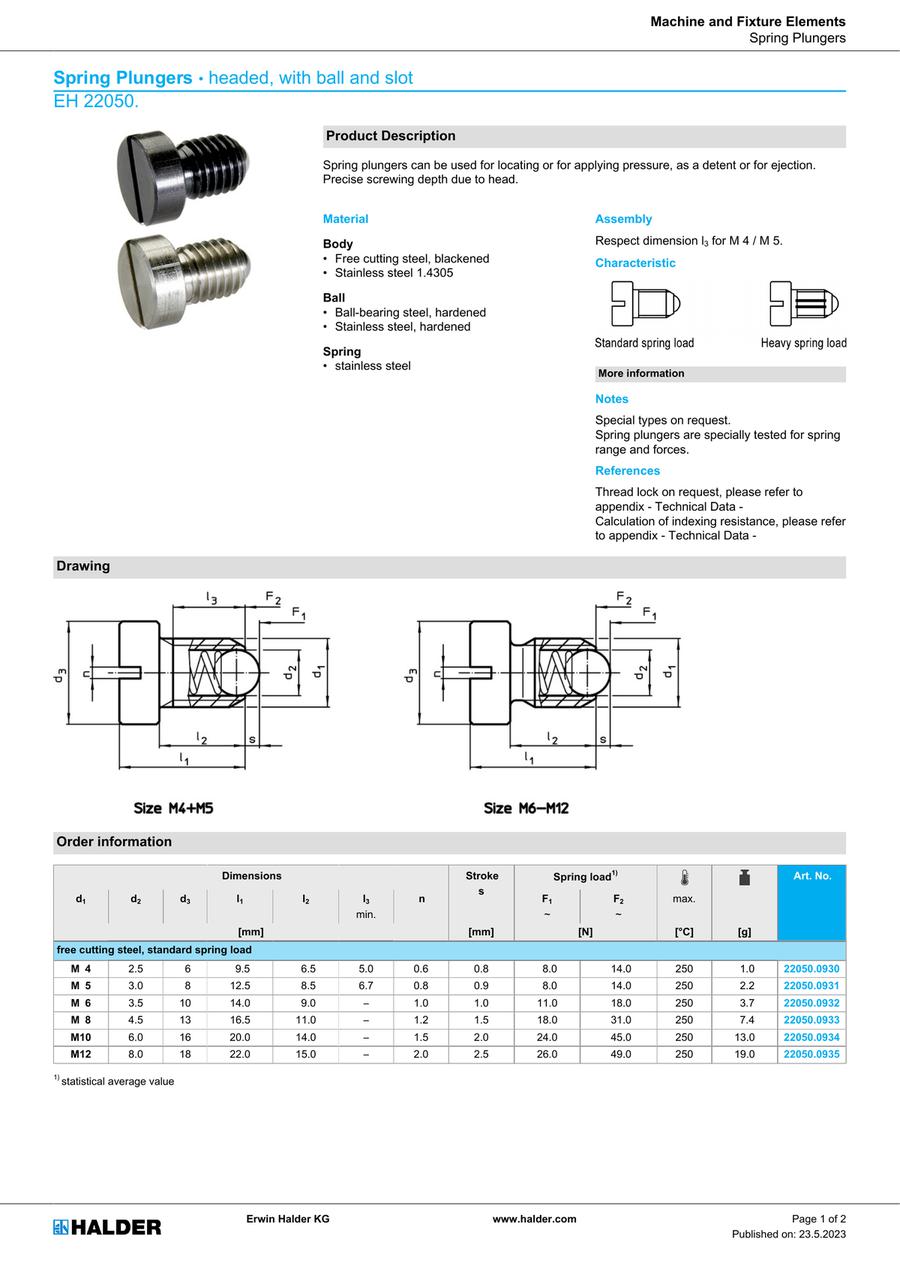

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Spring Plungers • headed, with ball and slot, EH 22050.

Product Description

Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
Precise screwing depth due to head.

Material

Body
• Free cutting steel, blackened
• Stainless steel 1.4305
Ball
• Ball-bearing steel, hardened
• Stainless steel, hardened
Spring
• Stainless steel

Assembly

Respect dimension l3 for M 4 / M 5.

Characteristic


Standard spring load          Heavy spring load

Notes

Special types on request.
Spring plungers are specially tested for spring range and forces.

References

Thread lock on request, please refer to appendix - Technical Data -
Calculation of indexing resistance, please refer to appendix - Technical Data -

Drawing

Size M4+M5 Size M6–M12

Order Information

DimensionsStrokeSpring load1)Operating temperature rangeWeightArt. No.
d1d2d3l1l2l3nsF1F2max.
     min.  ~~
[mm][mm][N][°C][g]
free cutting steel, standard spring load
M 42.569.56.55.00.60.88.014.02501.022050.0930
M 53.0812.58.56.70.80.98.014.02502.222050.0931
M 63.51014.09.0–1.01.011.018.02503.722050.0932
M 84.51316.511.0–1.21.518.031.02507.422050.0933
M106.01620.014.0–1.52.024.045.025013.022050.0934
M128.01822.015.0–2.02.526.049.025019.022050.0935
free cutting steel, heavy spring load
M 42.569.56.55.00.60.812.018.02500.922050.1040
M 53.0812.58.56.70.80.915.022.02502.222050.1050
M 63.51014.09.0–1.01.019.326.62503.822050.1060
M 84.51316.511.0–1.21.536.060.52507.522050.1080
M106.01620.014.0–1.52.057.0103.525013.022050.1100
M128.01822.015.0–2.02.561.0110.025019.022050.1120
stainless steel, standard spring load
M 42.569.56.55.00.60.88.014.02501.022050.0940
M 53.0812.58.56.70.80.98.014.02502.222050.0941
M 63.51014.09.0–1.01.011.018.02503.822050.0942
M 84.51316.511.0–1.21.518.031.02507.522050.0943
M106.01620.014.0–1.52.024.045.025013.022050.0944
M128.01822.015.0–2.02.526.049.025019.022050.0945
stainless steel, heavy spring load
M 42.569.56.55.00.60.812.018.02501.022050.1240
M 53.0812.58.56.70.80.915.022.02502.222050.1250
M 63.51014.09.0–1.01.019.326.62503.822050.1260
M 84.51316.511.0–1.21.536.060.52507.622050.1280
M106.01620.014.0–1.52.057.0103.525013.022050.1300
M128.01822.015.0–2.02.561.0110.025019.022050.1320
1) statistical average value

Application Example

Data to be displayed
30
45
60
  1. 1
Part Number
22050.0930
22050.0931
22050.0932
22050.0933
22050.0934
22050.0935
22050.0940
22050.0941
22050.0942
22050.0943
22050.0944
22050.0945
22050.1040
22050.1050
22050.1060
22050.1080
22050.1100
22050.1120
22050.1240
22050.1250
22050.1260
22050.1280
22050.1300
22050.1320
Part NumberRelated to
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSBody Material Outside Dia./Thread M
(mm) 		Stroke S
(mm) 		Initial Load
(N) 		Max. Load
(N) 		d1 d2
(mm) 		d3
(mm) 		Body Ball Spring l1
(mm) 		l2
(mm) 		l3
(mm) 		n
(mm) 		REACH compliant Weight
(g)

Data sheet

2.97 €

1 Same day

Stock

10Steel40.8814M42.56Free cutting steel, blackenedBall-bearing Steel, hardenedStainless Steel9.56.550.6yes0.92

Data sheet

3.15 €

1 Same day

Stock

10Steel50.9814M538Free cutting steel, blackenedBall-bearing Steel, hardenedStainless Steel12.58.56.70.8yes2.1

Data sheet

3.39 €

1 2 Days 10Steel611118M63.510Free cutting steel, blackenedBall-bearing Steel, hardenedStainless Steel149-1yes3.7

Data sheet

3.85 €

1 2 Days 10Steel81.51831M84.513Free cutting steel, blackenedBall-bearing Steel, hardenedStainless Steel16.511-1.2yes7.5

Data sheet

4.55 €

1 Same day

Stock

10Steel1022445M10616Free cutting steel, blackenedBall-bearing Steel, hardenedStainless Steel2014-1.5yes14

Data sheet

4.88 €

1 Same day

Stock

10Steel122.52649M12818Free cutting steel, blackenedBall-bearing Steel, hardenedStainless Steel2215-2yes19

Data sheet

4.38 €

1 Same day

Stock

10Stainless Steel40.8814M42.56Stainless steel 1.4305Stainless Steel, hardenedStainless Steel9.56.550.6yes1.2

Data sheet

4.92 €

1 Same day

Stock

10Stainless Steel50.9814M538Stainless steel 1.4305Stainless Steel, hardenedStainless Steel12.58.56.70.8yes2.4

Data sheet

5.43 €

1 2 Days 10Stainless Steel611118M63.510Stainless steel 1.4305Stainless Steel, hardenedStainless Steel149-1yes3.9

Data sheet

7.08 €

1 2 Days 10Stainless Steel81.51831M84.513Stainless steel 1.4305Stainless Steel, hardenedStainless Steel16.511-1.2yes7.9

Data sheet

8.12 €

1 Same day

Stock

10Stainless Steel1022445M10616Stainless steel 1.4305Stainless Steel, hardenedStainless Steel2014-1.5yes14

Data sheet

9.51 €

1 Same day

Stock

10Stainless Steel122.52649M12818Stainless steel 1.4305Stainless Steel, hardenedStainless Steel2215-2yes20

Data sheet

3.18 €

1 2 Days -Steel40.81218M42.56Free cutting steel, blackenedBall-bearing steel, hardenedstainless steel9.56.550.6-0.92

Data sheet

3.37 €

1 2 Days -Steel50.91522M538Free cutting steel, blackenedBall-bearing steel, hardenedstainless steel12.58.56.70.8-2.1

Data sheet

3.61 €

1 2 Days -Steel6119.326.6M63.510Free cutting steel, blackenedBall-bearing steel, hardenedstainless steel149-1-3.7

Data sheet

4.14 €

1 2 Days -Steel81.53660.5M84.513Free cutting steel, blackenedBall-bearing steel, hardenedstainless steel16.511-1.2-7.5

Data sheet

4.83 €

1 2 Days -Steel10257103.5M10616Free cutting steel, blackenedBall-bearing steel, hardenedstainless steel2014-1.5-14

Data sheet

5.16 €

1 2 Days -Steel122.561110M12818Free cutting steel, blackenedBall-bearing steel, hardenedstainless steel2215-2-19

Data sheet

4.77 €

1 2 Days -Stainless Steel40.81218M42.56Stainless steel 1.4305Stainless steel, hardenedstainless steel9.56.550.6-1.2

Data sheet

5.31 €

1 2 Days -Stainless Steel50.91522M538Stainless steel 1.4305Stainless steel, hardenedstainless steel12.58.56.70.8-2.4

Data sheet

5.87 €

1 2 Days -Stainless Steel6119.326.6M63.510Stainless steel 1.4305Stainless steel, hardenedstainless steel149-1-3.9

Data sheet

7.65 €

1 2 Days -Stainless Steel81.53660.5M84.513Stainless steel 1.4305Stainless steel, hardenedstainless steel16.511-1.2-7.9

Data sheet

8.76 €

1 2 Days -Stainless Steel10257103.5M10616Stainless steel 1.4305Stainless steel, hardenedstainless steel2014-1.5-14

Data sheet

10.15 €

1 2 Days -Stainless Steel122.561110M12818Stainless steel 1.4305Stainless steel, hardenedstainless steel2215-2-20
