Index Bolt With Hexagon Collar, Short
· For index holes.
· This index bolt is characterized by its small size.
· Pull the knob and rotate 90 degrees to fix the pin in place in a withdrawn state using the notch (type with hold mechanism).
· Operating temperature range is from -30 to +80°C.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

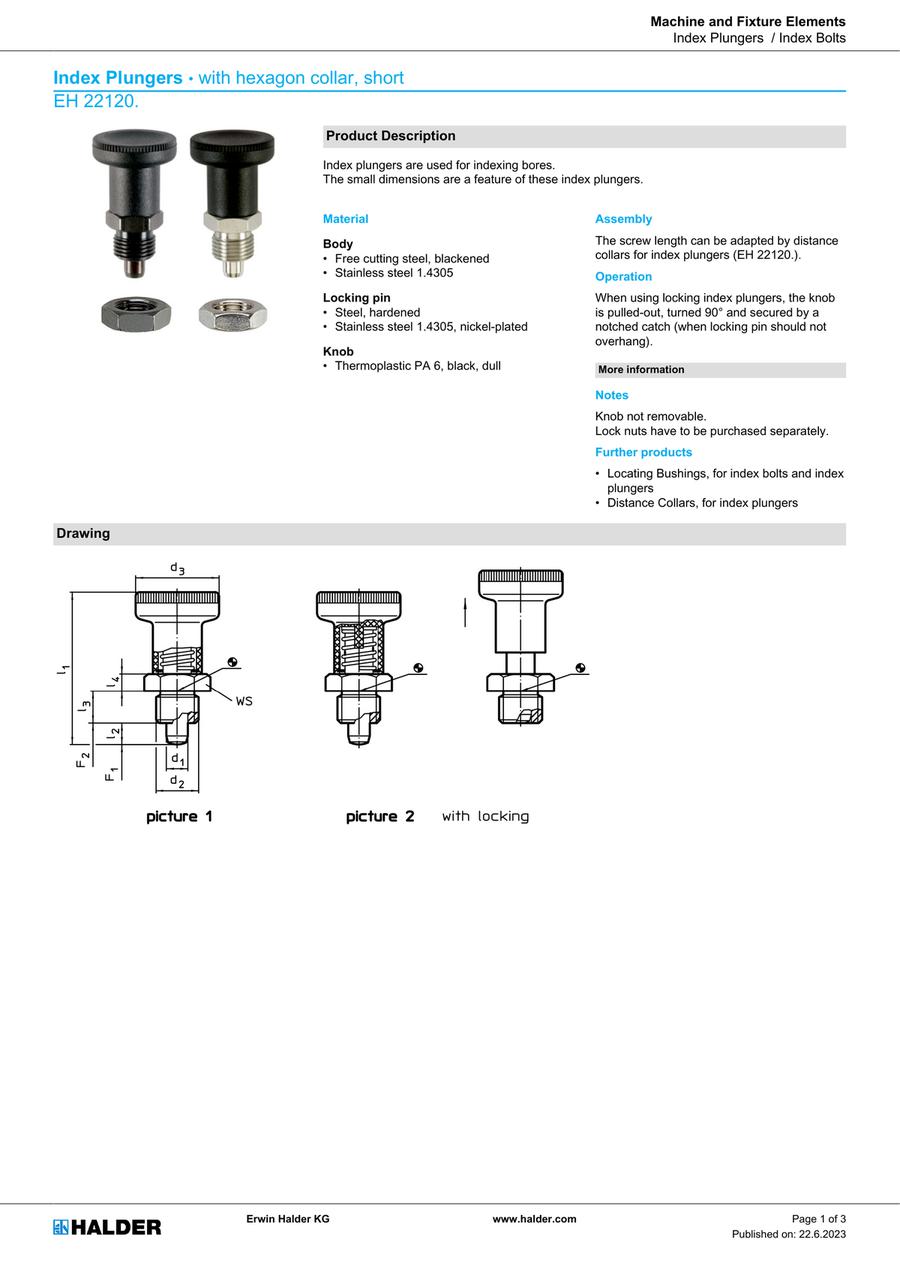

Index Plungers • with hexagon collar, short, EH 22120.
Product Description
 | Index plungers are used for indexing bores. The small dimensions are a feature of these index plungers. |
Material
• Free cutting steel, blackened
• Stainless steel 1.4305
Locking pin
• Steel, hardened
• Stainless steel 1.4305, nickel-plated
Knob
• Thermoplastic PA 6, black, dull
Assembly
Operation
Notes
Lock nuts have to be purchased separately.
Further products
• Distance Collars, for index plungers
Drawing
Order Information
| Dimensions | WS | Spring load1) | Operating temperature range | Weight | Art. No. | ||||||||
| d1 | d2 | d3 | l1 | l2 | l3 | l4 | F1 | F2 | min. | max. | |||
| -0.02 -0.05 | ~ | min. | -0.15 | ~ | ~ | ||||||||
| [mm] | [mm] | [N] | [°C] | [g] | |||||||||
| without locking – picture 1, free cutting steel | |||||||||||||
| 6 | M12 x 1,5 | 25 | 45 | 6 | 10 | 5 | 17 | 7 | 19 | -30 | 80 | 35 | 22120.0226 |
| 8 | M16 x 1,5 | 31 | 54 | 8 | 12 | 6 | 19 | 14 | 24 | -30 | 80 | 62 | 22120.0228 |
| with locking – picture 2, free cutting steel | |||||||||||||
| 6 | M12 x 1,5 | 25 | 45 | 6 | 10 | 5 | 17 | 7 | 19 | -30 | 80 | 35 | 22120.0236 |
| 8 | M16 x 1,5 | 31 | 54 | 8 | 12 | 6 | 19 | 14 | 24 | -30 | 80 | 60 | 22120.0238 |
| without locking – picture 1, stainless steel | |||||||||||||
| 6 | M12 x 1,5 | 25 | 45 | 6 | 10 | 5 | 17 | 7 | 19 | -30 | 80 | 35 | 22120.0246 |
| 8 | M16 x 1,5 | 31 | 54 | 8 | 12 | 6 | 19 | 14 | 24 | -30 | 80 | 61 | 22120.0248 |
| with locking – picture 2, stainless steel | |||||||||||||
| 6 | M12 x 1,5 | 25 | 45 | 6 | 10 | 5 | 17 | 7 | 19 | -30 | 80 | 34 | 22120.0256 |
| 8 | M16 x 1,5 | 31 | 54 | 8 | 12 | 6 | 19 | 14 | 24 | -30 | 80 | 60 | 22120.0258 |
Accessories
| Dimensions | Wrench size | Weight | Art. No. | |
| d2 | ||||
| [mm] | [mm] | [g] | ||
| Lock nuts ISO 8675 (DIN 439), steel | ||||
 | M12 x 1,5 | 18 | 7.5 | 22120.0116 |
| M16 x 1,5 | 24 | 15.0 | 22120.0118 | |
| Lock nuts ISO 8675 (DIN 439), stainless steel | ||||
 | M12 x 1,5 | 18 | 7.5 | 22120.0516 |
| M16 x 1,5 | 24 | 15.0 | 22120.0518 | |
Application Example
Part Number
|
|---|
| 22120.0226 |
| 22120.0228 |
| 22120.0236 |
| 22120.0238 |
| 22120.0246 |
| 22120.0248 |
| 22120.0256 |
| 22120.0258 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Main Body Surface Treatment | Tip O.D. d (Ø) | d2 (mm) | d3 (mm) | l1 (mm) | l2 (mm) | l3 (mm) | l4 (mm) | F1 (N) | F2 (N) | s (mm) | WS (mm) | Locking pin | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10.19 € | 1 |
Same day
Stock | 10 | Black Oxide | 6 | M12 x 1,5 | 25 | ~ 45 | 6 | 10 | 5 | ~ 7 | ~ 19 | 12 | 17 | Steel, hardened | |||
13.47 € | 1 |
Same day
Stock | 10 | Black Oxide | 8 | M16 x 1,5 | 31 | ~ 54 | 8 | 12 | 6 | ~ 14 | ~ 24 | 15 | 19 | Steel, hardened | |||
13.29 € | 1 | 2 Days | 10 | Black Oxide | 6 | M12 x 1,5 | 25 | ~ 45 | 6 | 10 | 5 | ~ 7 | ~ 19 | 15 | 17 | Steel, hardened | |||
15.67 € | 1 | 2 Days | 10 | Black Oxide | 8 | M16 x 1,5 | 31 | ~ 54 | 8 | 12 | 6 | ~ 14 | ~ 24 | - | 19 | Steel, hardened | |||
17.24 € | 1 | 2 Days | 10 | - | 6 | M12 x 1,5 | 25 | ~ 45 | 6 | 10 | 5 | ~ 7 | ~ 19 | - | 17 | Stainless steel 1.4305, nickel-plated | |||
19.19 € | 1 |
Same day
Stock | 10 | - | 8 | M16 x 1,5 | 31 | ~ 54 | 8 | 12 | 6 | ~ 14 | ~ 24 | - | 19 | Stainless steel 1.4305, nickel-plated | |||
25.47 € | 1 | 3 Days | 10 | - | 6 | M12 x 1,5 | 25 | ~ 45 | 6 | 10 | 5 | ~ 7 | ~ 19 | - | 17 | Stainless steel 1.4305, nickel-plated | |||
30.45 € | 1 |
Same day
Stock | 10 | - | 8 | M16 x 1,5 | 31 | ~ 54 | 8 | 12 | 6 | ~ 14 | ~ 24 | - | 19 | Stainless steel 1.4305, nickel-plated |
Loading...
Basic information
| Type | Standard knob | Mounting Method | Screw-In | Operation Knob | Presence |
|---|---|---|---|---|---|
| Knob | Thermoplastic PA 6, black, dull | Temperature min.(°C) | -30 | Temperature max.(°C) | 80 |
| Conflict Minerals free | yes | REACH compliant | yes |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Main Body Surface Treatment
- Black Oxide
-
Tip O.D. d(Ø)
-
d2(mm)
- M12 x 1,5
- M16 x 1,5
-
d3(mm)
-
l1(mm)
-
l2(mm)
-
l3(mm)
-
l4(mm)
-
F1(N)
-
F2(N)
-
s(mm)
-
WS(mm)
-
Locking pin
-
Type
- 22120
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- Same day
- 2 Days or Less
- 3 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
