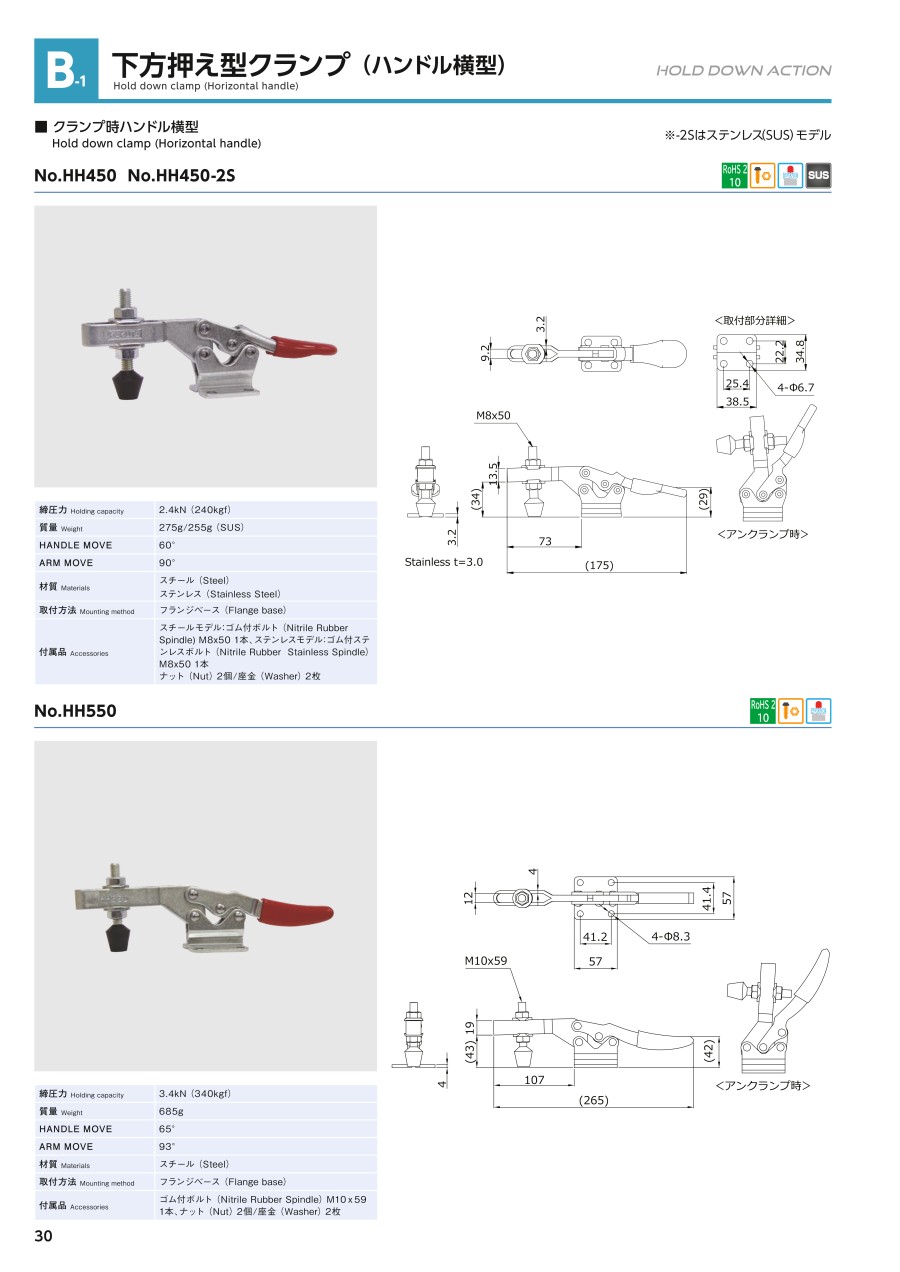

Hold-Down Clamp, No. HH550

Hold-Down Clamp, No. HH550

Click on this image to zoom in.

Click on this image to zoom in.

  • Volume Discount

Product Details:

Manufacturer part number: NO.HH550

Brand: KAKUTA

Price: 25.77

Delivery time: 6 Days

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

NO.HH550

Part Number
NO.HH550
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHS

25.77 €

1 Available 6 Days 10

Loading...

  1. 1

Basic information

Attaching Method Flange Base Tightening Force(N) 3400 Body Material Steel
Clamp Screw Size M10 Clamp Screw Material Steel + rubber pad Arm Height H(mm) 64
Arm Length L(mm) 108 Tightening Force (Range Selectable)(N) 3000~ Tip Bolt Type Bolt with Rubber
Tip Bolt Position Adjustment1 Slide Adjustment

This page is Hold-Down Clamp, No. HH550, part number NO.HH550.
You can find the detail information about specifications and dimensions on part number NO.HH550.
