KQB2H-xx, Metal One-touch Fitting, Different Diameter Straight
SMC One-Touch fitting.
[Features]
· Compact and lightweight.
· Grease-free.
· Fluid temperature: -5 to 150°C.
· Brass parts: Electroless nickel plated.
[Applications]
· Used to connect different sized tubes.
[Features]
· Compact and lightweight.
· Grease-free.
· Fluid temperature: -5 to 150°C.
· Brass parts: Electroless nickel plated.
[Applications]
· Used to connect different sized tubes.
(i)Remark
- For materials and specification details, please refer to the catalog.

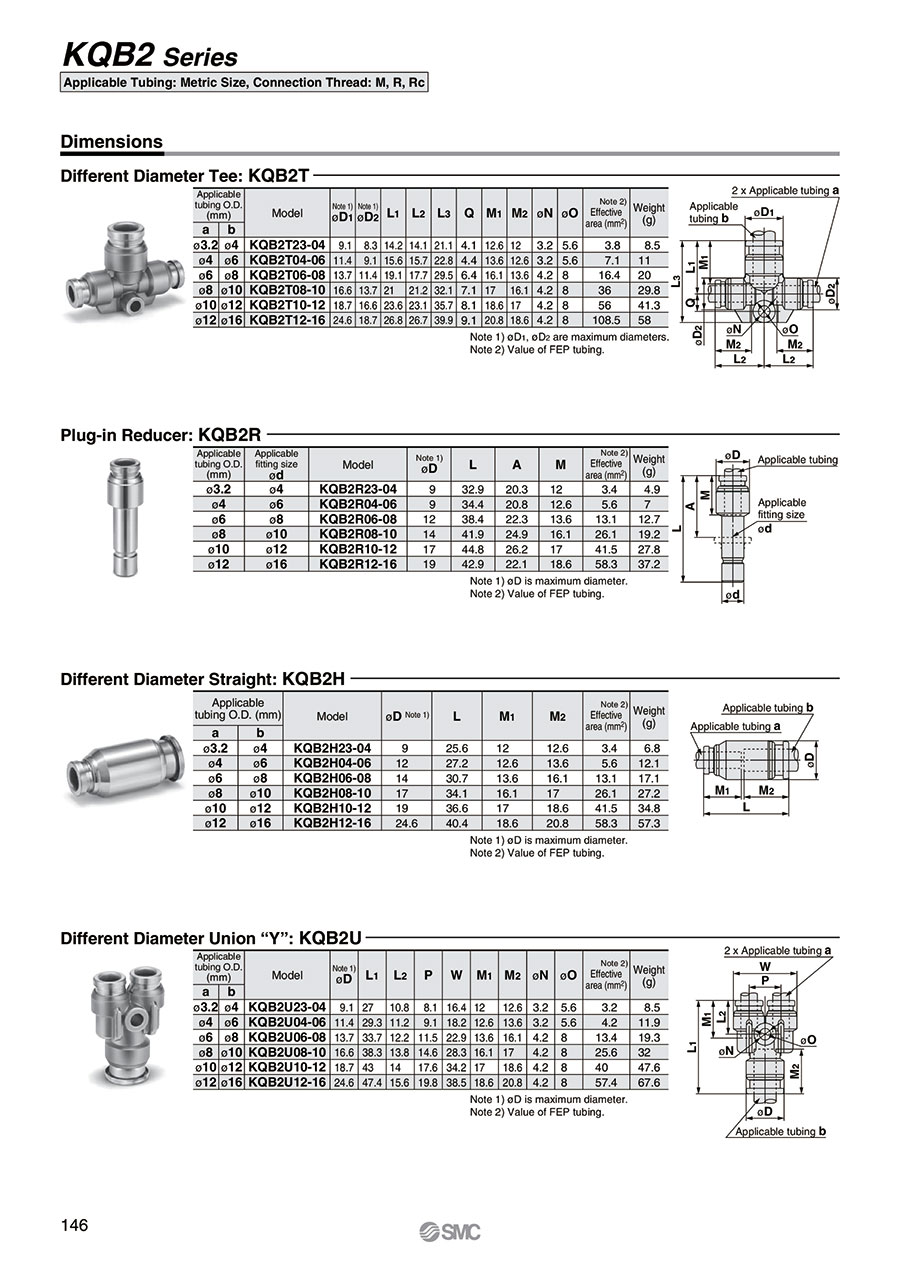

- Product images may be representative images. Refer to the catalog for shape details.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| KQB2H04-06 |
| KQB2H06-08 |
| KQB2H08-10 |
| KQB2H10-12 |
| KQB2H12-16 |
| KQB2H23-04 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Compatible Tube Outer Diameter 1 (mm) | |
|---|---|---|---|---|---|
3.26 € | 1 | 4 Days | 4 | ||
3.92 € | 1 | 4 Days | 6 | ||
5.19 € | 1 |
Same day
Stock | 8 | ||
6.90 € | 1 |
Same day
Stock | 10 | ||
11.94 € | 1 | 4 Days | - | ||
3.92 € | 1 | 4 Days | - |
Loading...
Basic information
| Type | Single-Action | Fitting Type | Union with different diameters | Applicable Fluid | Water / Air |
|---|---|---|---|---|---|
| Main Body Material | Others | Application | Standard/Mini | Union: Unequal Diameter | Reducing Straight |
| Number of Connection Tubes(pc.) | 2 |
- Product images may be representative images. Refer to the catalog for shape details.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
