6829K Swing clamp, pneumatic, flange-mounting version
- Volume Discount

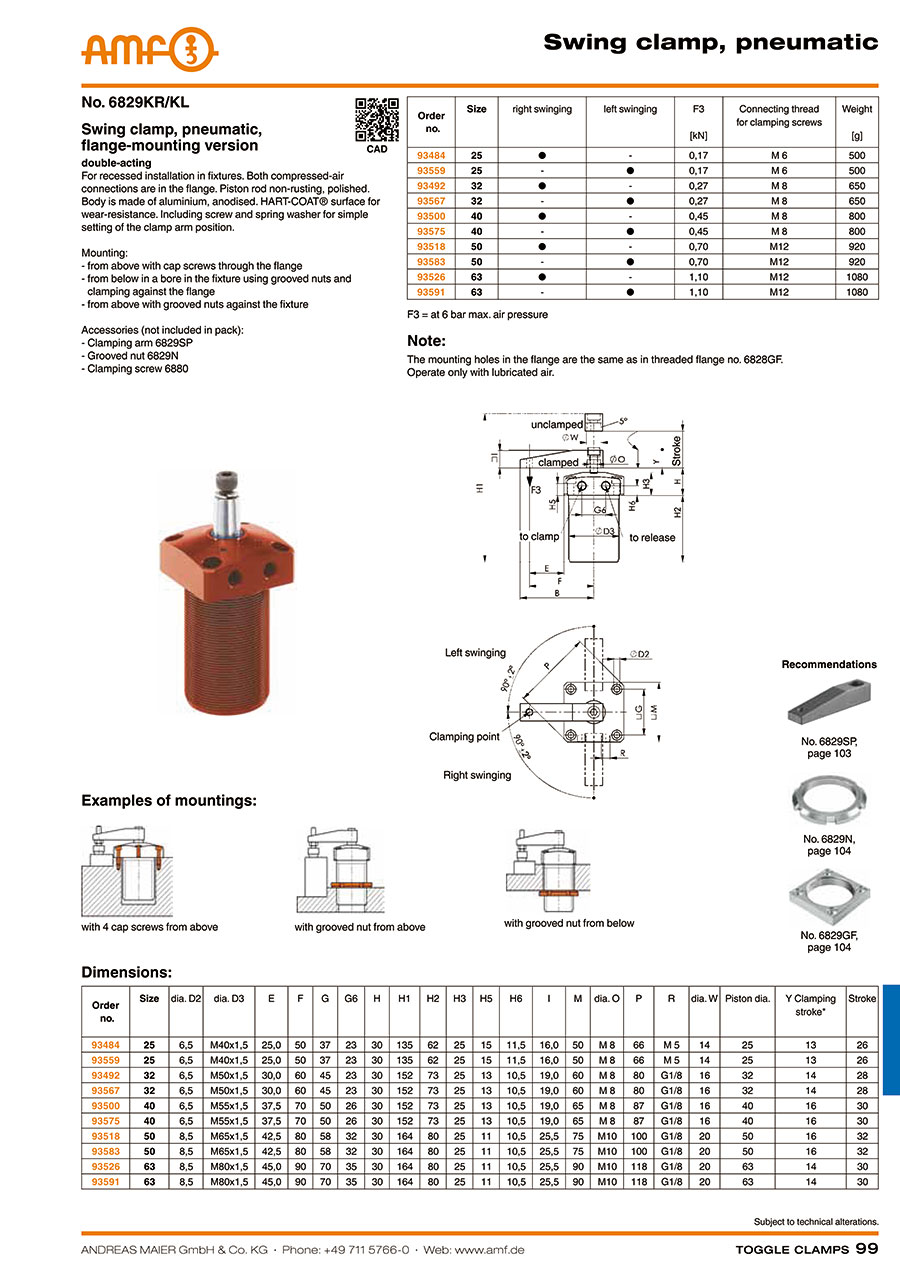

For recessed installation in fixtures. Both compressed-air connections are in the flange. Piston rod non-rusting, polished. Body is made of aluminium, anodised. HART-COAT surface for wear-resistance. Including screw and spring washer for simple setting of the clamp arm position.
Mounting:
- from above with cap screws through the flange
- from below in a bore in the fixture using grooved nuts and clamping against the flange
- from above with grooved nuts against the fixture
Accessories (not included in pack):
- Clamping arm 6829SP
- Grooved nut 6829N
- Clamping screw 6880 The product is available per 1 peace.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 93484 |
| 93492 |
| 93500 |
| 93518 |
| 93526 |
| 93559 |
| 93567 |
| 93575 |
| 93583 |
| 93591 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | F3 (kN) | Connecting thread for clamping screws | Size | right swinging | left swinging | |
|---|---|---|---|---|---|---|---|---|---|---|
668.46 € | 1 | Available | 5 Days | 10 | 0,17 | M 6 | 25 | yes | - | |
739.33 € | 1 | Available | 5 Days | 10 | 0,27 | M 8 | 32 | yes | - | |
819.71 € | 1 | Available | 5 Days | 10 | 0,45 | M 8 | 40 | yes | - | |
863.08 € | 1 | Available | 5 Days | 10 | 0,70 | M12 | 50 | yes | - | |
907.50 € | 1 | Available | 5 Days | 10 | 1,10 | M12 | 63 | yes | - | |
668.46 € | 1 | Available | 5 Days | 10 | 0,17 | M 6 | 25 | - | yes | |
739.33 € | 1 | Available | 5 Days | 10 | 0,27 | M 8 | 32 | - | yes | |
819.71 € | 1 | Available | 5 Days | 10 | 0,45 | M 8 | 40 | - | yes | |
863.08 € | 1 | Available | 5 Days | 10 | 0,70 | M12 | 50 | - | yes | |
907.50 € | 1 | Available | 5 Days | 10 | 1,10 | M12 | 63 | - | yes |
