Ball lock pins with clamping length compensation

Ball lock pins with clamping length compensation

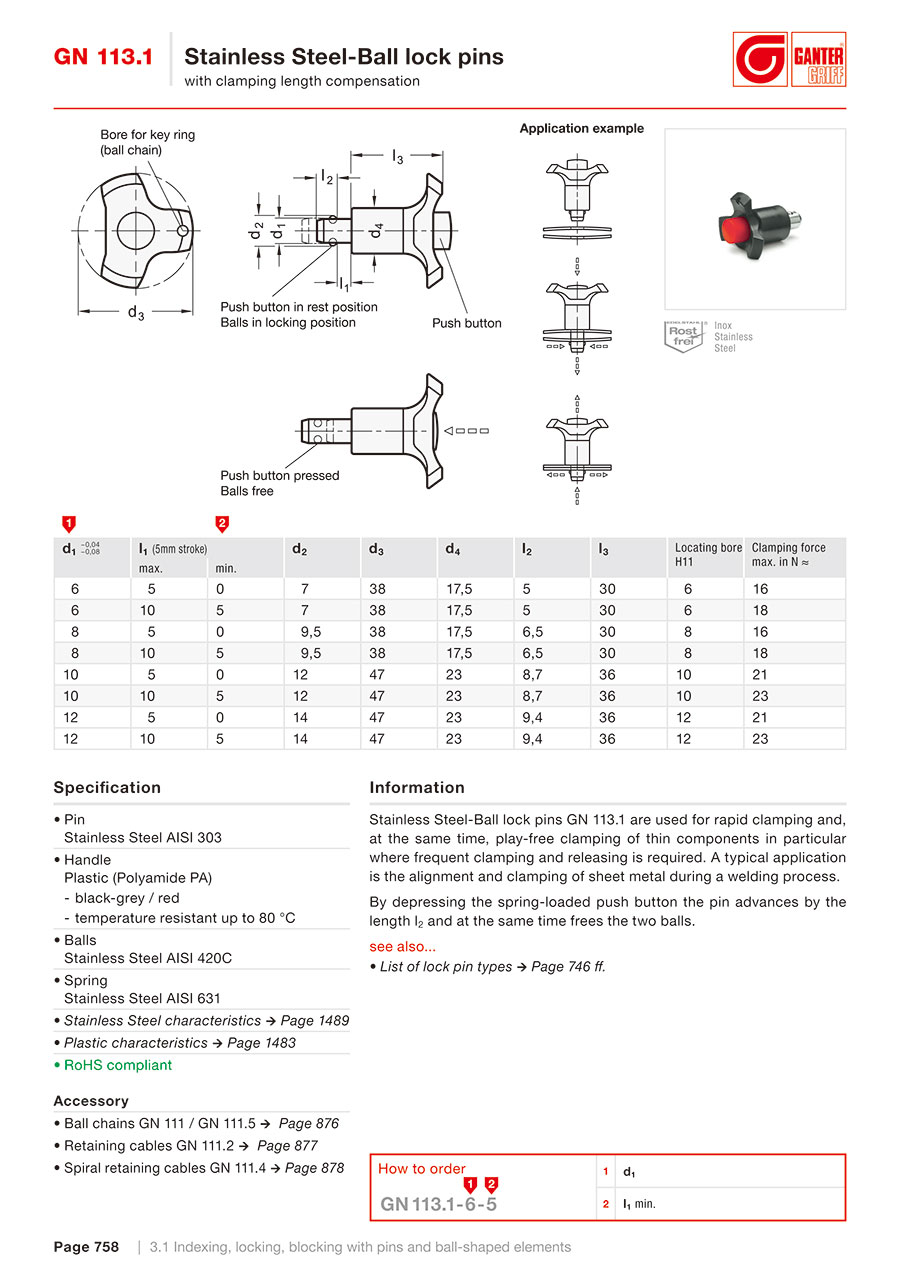

Stainless Steel-Ball lock pins GN 113.1 are used for rapid clamping and, at the same time, play-free clamping of thin components in particular where frequent clamping and releasing is required. A typical application is the alignment and clamping of sheet metal during a welding process.
By depressing the spring-loaded push button the pin advances by the length l2 and at the same time frees the two balls.

PDF

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
113.1-6-0
113.1-6-5
113.1-8-0
113.1-8-5
113.1-10-0
113.1-10-5
113.1-12-0
113.1-12-5
Part NumberStandard Unit PriceVolume DiscountShipping Days?Bolt diameter d1 l1 min.

51.55 €

3 Days 60

51.53 €

3 Days 65

52.58 €

3 Days 80

53.09 €

3 Days 85

62.64 €

3 Days 100

62.88 €

3 Days 105

66.25 €

3 Days 120

66.22 €

3 Days 125
