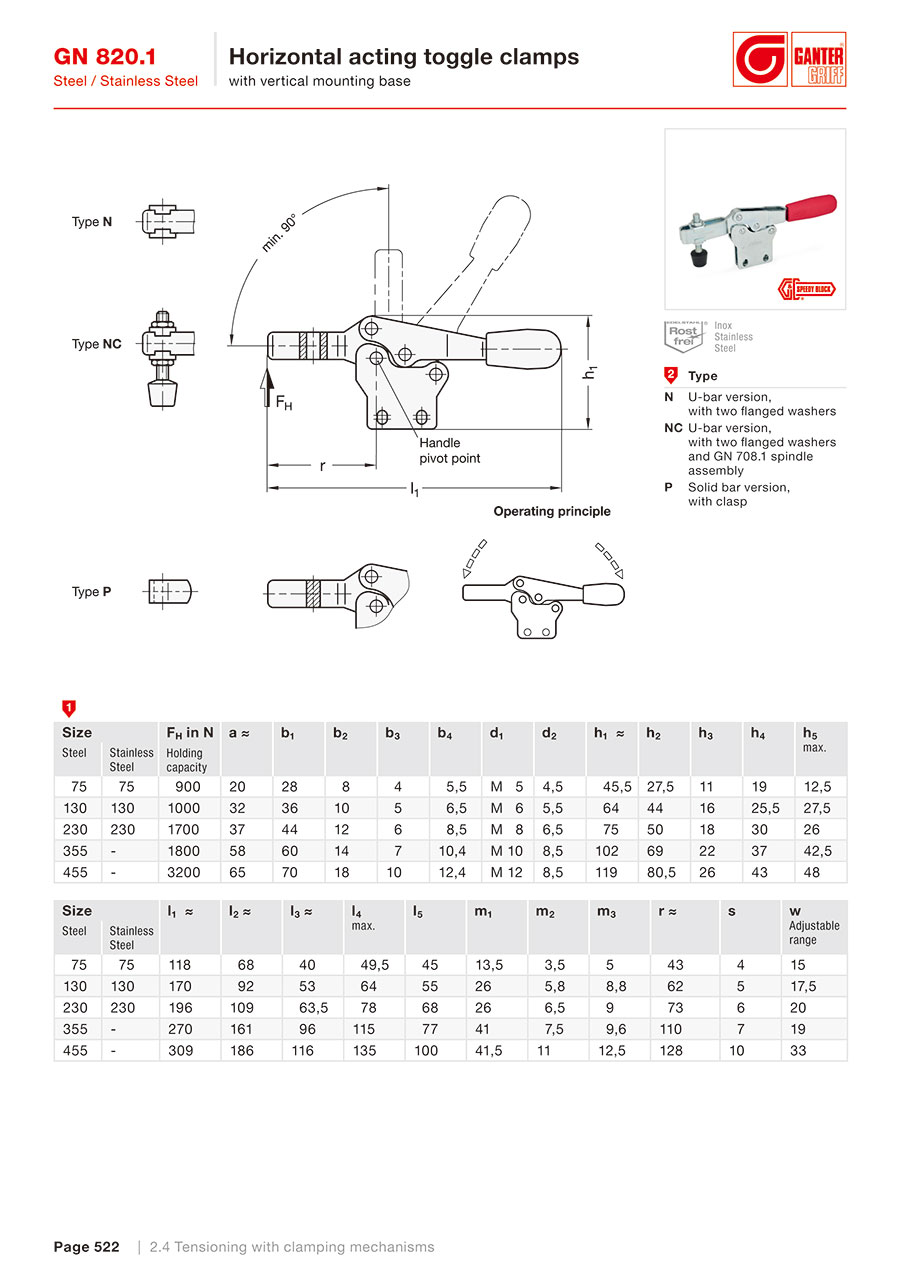

Horizontal Acting Toggle Clamps with vertical mounting base
- Volume Discount
They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position.
Horizontal acting toggle clamps in the U-bar version with two flanged washers (Type N) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type NC.
Type P version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 Clamp Mounts to hold the work piece in place.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 820.1-75-N |
| 820.1-75-NC |
| 820.1-75-P |
| 820.1-130-N |
| 820.1-130-NC |
| 820.1-130-P |
| 820.1-230-N |
| 820.1-230-NC |
| 820.1-230-P |
| 820.1-355-N |
| 820.1-355-NC |
| 820.1-355-P |
| 820.1-455-N |
| 820.1-455-NC |
| 820.1-455-P |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Size | Type | |
|---|---|---|---|---|---|---|
22.60 € | 1 | Available |
Same day
Stock | 75 | N, U-bar version, with two flanged washers | |
24.00 € | 1 | Available |
Same day
Stock | 75 | NC, U-bar version, with two flanged washers and GN 708.1 Spindle Assembly | |
22.60 € | 1 | Available | 4 Days | 75 | P, Solid clamping arm | |
24.36 € | 1 | Available | 4 Days | 130 | N, U-bar version, with two flanged washers | |
26.14 € | 1 | Available |
Same day
Stock | 130 | NC, U-bar version, with two flanged washers and GN 708.1 Spindle Assembly | |
25.06 € | 1 | Available |
Same day
Stock | 130 | P, Solid clamping arm | |
31.60 € | 1 | Available | 4 Days | 230 | N, U-bar version, with two flanged washers | |
33.80 € | 1 | Available |
Same day
Stock | 230 | NC, U-bar version, with two flanged washers and GN 708.1 Spindle Assembly | |
32.24 € | 1 | Available |
Same day
Stock | 230 | P, Solid clamping arm | |
43.04 € | 1 | Available |
Same day
Stock | 355 | N, U-bar version, with two flanged washers | |
45.84 € | 1 | Available |
Same day
Stock | 355 | NC, U-bar version, with two flanged washers and GN 708.1 Spindle Assembly | |
43.30 € | 1 | Available |
Same day
Stock | 355 | P, Solid clamping arm | |
75.46 € | 1 | Available |
Same day
Stock | 455 | N, U-bar version, with two flanged washers | |
80.08 € | 1 | Available |
Same day
Stock | 455 | NC, U-bar version, with two flanged washers and GN 708.1 Spindle Assembly | |
75.46 € | 1 | Available |
Same day
Stock | 455 | P, Solid clamping arm |
Loading...
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Size
- 75
- 130
- 230
- 355
- 455
-
Type
-
Type
- 820.1
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
