Linear actuator connectors, Aluminium
- Volume Discount

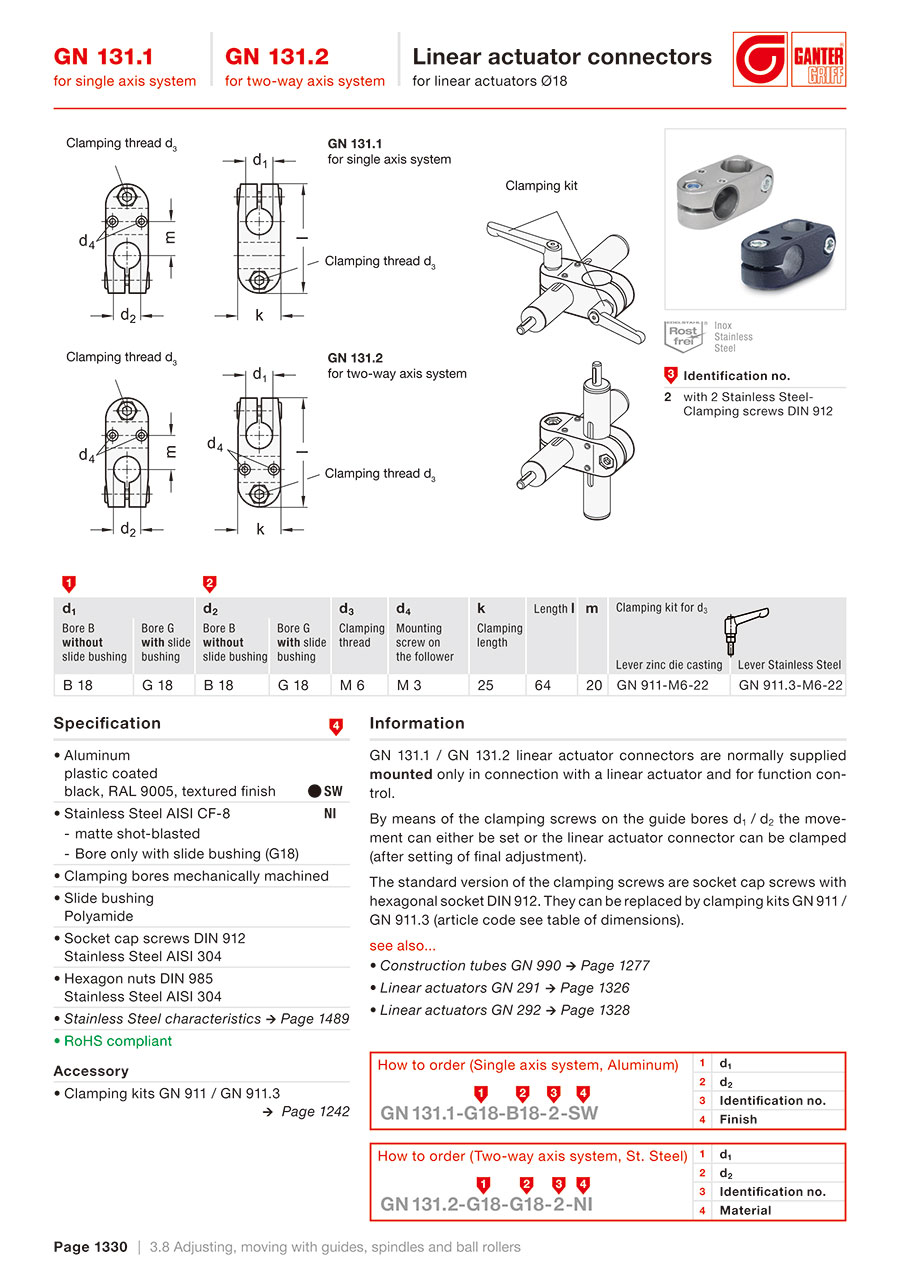

GN 131.1 linear actuator connectors are normally supplied mounted only in connection with a linear actuator and for function control.
By means of the clamping screws on the guide bores d1 / d2 the movement can either be set or the linear actuator connector can be clamped (after final adjustment).
The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by clamping kits GN 911 (article code see table of dimensions).
By means of the clamping screws on the guide bores d1 / d2 the movement can either be set or the linear actuator connector can be clamped (after final adjustment).
The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by clamping kits GN 911 (article code see table of dimensions).
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 131.1-B18-B18-2-SW |
| 131.1-G18-B18-2-SW |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Bore d1 | Weight (kg) | |
|---|---|---|---|---|---|---|
45.92 € | 1 | Available | 5 Days | B 18 | 0.066 | |
80.60 € | 1 | Available | 5 Days | G 18 | 0.064 |
Loading...
Basic information
| Bore d2 | B 18 | Identification No. | 2, with 2 Stainless Steel-clamping screws DIN 912 | Finish | SW, black, textured finish |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
