Stainless Steel-Mini indexing plungers
- Volume Discount

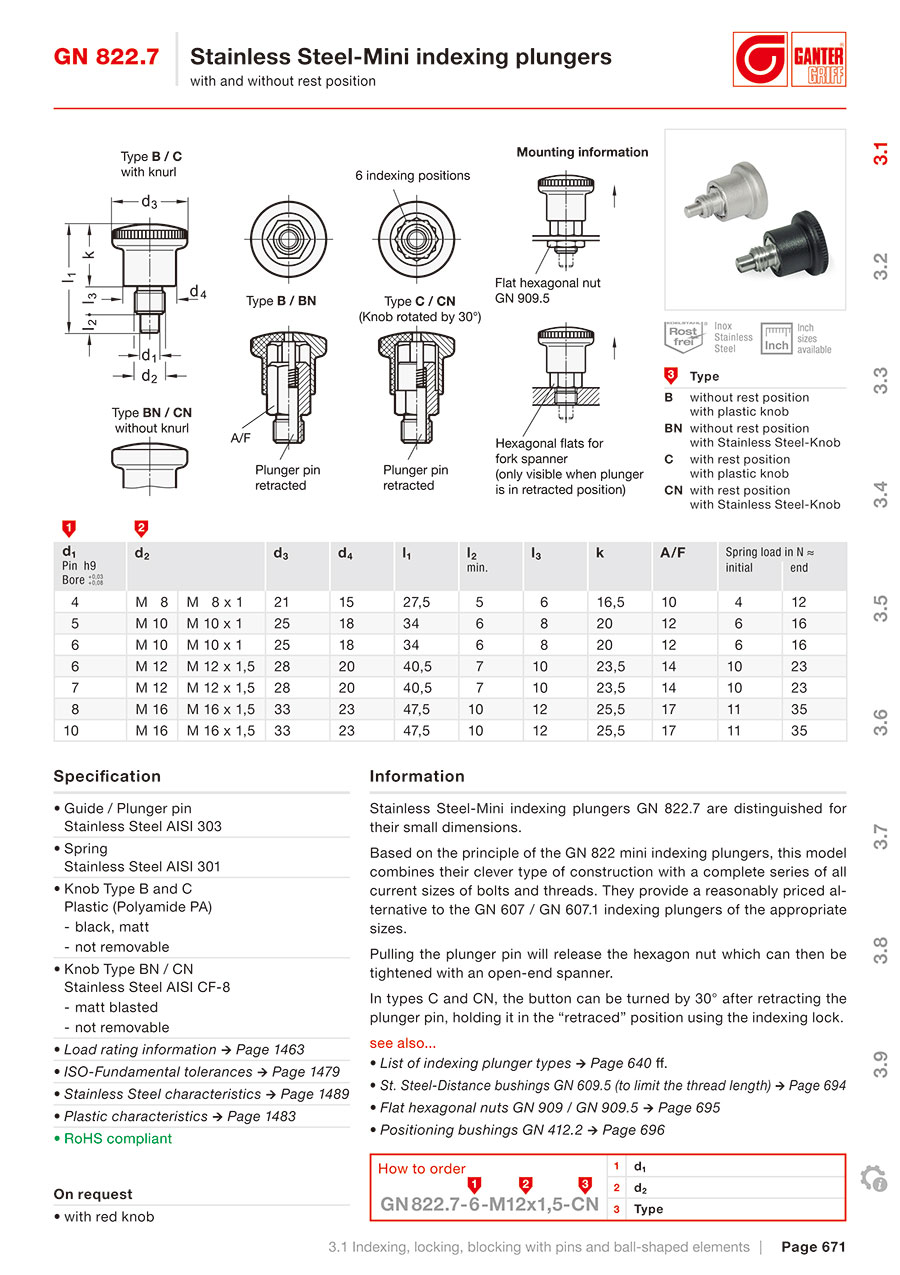

Based on the principle of the mini indexing plungers GN 822, this model combines their clever type of construction with a complete series of all current sizes of bolts and threads. They provide a reasonably priced alternative to the GN 607 / GN 607.1 indexing plungers of the appropriate sizes. To mount, first turn the mini indexing plunger in with the knurled button. Pulling the indexing pin will release the hexagon nut which can then be tightened with an open-end spanner.
The spanner flats on the lock nut are revealed when retracting the pin, so that the mini indexing plunger can be easily tightened by means of a fork spanner.
In type CN, the button can be turned by 30° after retracting the indexing pin, holding it in the “retraced” position using the indexing lock.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Bolt diameter d1 (Ø) | Collet thread d2 | Type | |
|---|---|---|---|---|---|---|---|
14.28 € | 1 | Available | 7 Days | 4 | M 8 | BN, without rest position, with Stainless Steel knob | |
14.28 € | 1 | Available | 7 Days | 4 | M 8 | CN, with rest position, with Stainless Steel knob | |
14.28 € | 1 | Available | 7 Days | 4 | M 8 x 1 | BN, without rest position, with Stainless Steel knob | |
14.28 € | 1 | Available |
Same day
Stock | 4 | M 8 x 1 | CN, with rest position, with Stainless Steel knob | |
16.06 € | 1 | Available |
Same day
Stock | 5 | M 10 | BN, without rest position, with Stainless Steel knob | |
16.06 € | 1 | Available | 4 Days | 5 | M 10 | CN, with rest position, with Stainless Steel knob | |
16.06 € | 1 | Available | 7 Days | 5 | M 10 x 1 | BN, without rest position, with Stainless Steel knob | |
16.06 € | 1 | Available | 4 Days | 5 | M 10 x 1 | CN, with rest position, with Stainless Steel knob | |
16.10 € | 1 | Available |
Same day
Stock | 6 | M 10 | BN, without rest position, with Stainless Steel knob | |
16.10 € | 1 | Available | 4 Days | 6 | M 10 | CN, with rest position, with Stainless Steel knob | |
16.10 € | 1 | Available |
Same day
Stock | 6 | M 10 x 1 | BN, without rest position, with Stainless Steel knob | |
16.10 € | 1 | Available |
Same day
Stock | 6 | M 10 x 1 | CN, with rest position, with Stainless Steel knob | |
19.56 € | 1 | Available |
Same day
Stock | 6 | M 12 | BN, without rest position, with Stainless Steel knob | |
19.66 € | 1 | Available |
Same day
Stock | 6 | M 12 | CN, with rest position, with Stainless Steel knob | |
19.56 € | 1 | Available |
Same day
Stock | 6 | M 12 x 1,5 | BN, without rest position, with Stainless Steel knob | |
19.66 € | 1 | Available |
Same day
Stock | 6 | M 12 x 1,5 | CN, with rest position, with Stainless Steel knob | |
19.36 € | 1 | Available |
Same day
Stock | 7 | M 12 | BN, without rest position, with Stainless Steel knob | |
19.44 € | 1 | Available |
Same day
Stock | 7 | M 12 | CN, with rest position, with Stainless Steel knob | |
19.36 € | 1 | Available |
Same day
Stock | 7 | M 12 x 1,5 | BN, without rest position, with Stainless Steel knob | |
19.44 € | 1 | Available | 7 Days | 7 | M 12 x 1,5 | CN, with rest position, with Stainless Steel knob | |
24.48 € | 1 | Available |
Same day
Stock | 8 | M 16 | BN, without rest position, with Stainless Steel knob | |
24.48 € | 1 | Available | 7 Days | 8 | M 16 | CN, with rest position, with Stainless Steel knob | |
24.48 € | 1 | Available |
Same day
Stock | 8 | M 16 x 1,5 | BN, without rest position, with Stainless Steel knob | |
24.48 € | 1 | Available | 4 Days | 8 | M 16 x 1,5 | CN, with rest position, with Stainless Steel knob | |
24.34 € | 1 | Available | 4 Days | 10 | M 16 | BN, without rest position, with Stainless Steel knob | |
24.34 € | 1 | Available |
Same day
Stock | 10 | M 16 | CN, with rest position, with Stainless Steel knob | |
24.34 € | 1 | Available | 7 Days | 10 | M 16 x 1,5 | BN, without rest position, with Stainless Steel knob | |
24.34 € | 1 | Available |
Same day
Stock | 10 | M 16 x 1,5 | CN, with rest position, with Stainless Steel knob |
