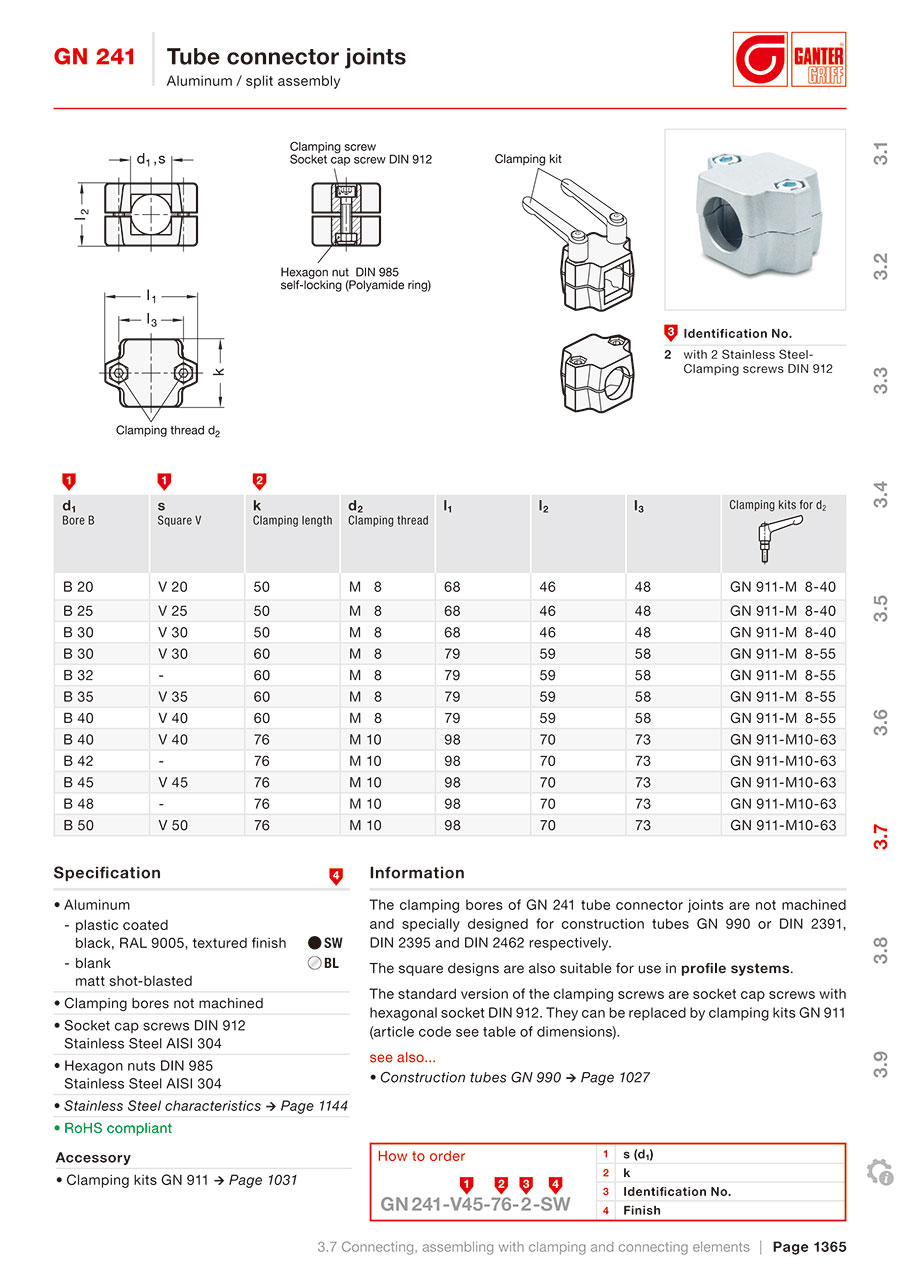

Tube connector joints, Aluminium
- Volume Discount
The standard clamping screws are socket cap screws DIN 912. They can be replaced by clamping kits GN 911 (article code see table of dimensions).
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Bore d1 (mm) | Width k | Square s1 | Finish | |
|---|---|---|---|---|---|---|---|---|
22.98 € | 1 | Available | 5 Days | 20 | 50 | - | BL | |
22.78 € | 1 | Available | 5 Days | 20 | 50 | - | SW | |
22.98 € | 1 | Available | 5 Days | 25 | 50 | - | BL | |
23.02 € | 1 | Available | 5 Days | 25 | 50 | - | SW | |
22.98 € | 1 | Available | 5 Days | 30 | 50 | - | BL | |
23.02 € | 1 | Available | 5 Days | 30 | 50 | - | SW | |
28.24 € | 1 | Available | 5 Days | 30 | 60 | - | BL | |
28.36 € | 1 | Available | 5 Days | 30 | 60 | - | SW | |
28.26 € | 1 | Available |
Same day
Stock | 32 | 60 | - | BL | |
28.36 € | 1 | Available | 5 Days | 32 | 60 | - | SW | |
28.26 € | 1 | Available | 5 Days | 35 | 60 | - | BL | |
28.36 € | 1 | Available | 5 Days | 35 | 60 | - | SW | |
28.26 € | 1 | Available | 5 Days | 40 | 60 | - | BL | |
28.24 € | 1 | Available | 5 Days | 40 | 60 | - | SW | |
30.32 € | 1 | Available | 5 Days | 40 | 76 | - | BL | |
30.06 € | 1 | Available | 5 Days | 40 | 76 | - | SW | |
30.04 € | 1 | Available | 5 Days | 42 | 76 | - | BL | |
30.06 € | 1 | Available | 5 Days | 42 | 76 | - | SW | |
30.04 € | 1 | Available | 5 Days | 45 | 76 | - | BL | |
30.06 € | 1 | Available | 5 Days | 45 | 76 | - | SW | |
30.04 € | 1 | Available | 5 Days | 48 | 76 | - | BL | |
30.06 € | 1 | Available | 5 Days | 48 | 76 | - | SW | |
29.90 € | 1 | Available | 5 Days | 50 | 76 | - | BL | |
30.06 € | 1 | Available | 5 Days | 50 | 76 | - | SW | |
22.86 € | 1 | Available | 5 Days | - | 50 | V 20 | BL | |
23.02 € | 1 | Available | 5 Days | - | 50 | V 20 | SW | |
22.98 € | 1 | Available | 5 Days | - | 50 | V 25 | BL | |
23.02 € | 1 | Available | 5 Days | - | 50 | V 25 | SW | |
22.98 € | 1 | Available | 5 Days | - | 50 | V 30 | BL | |
23.02 € | 1 | Available | 5 Days | - | 50 | V 30 | SW | |
28.26 € | 1 | Available | 5 Days | - | 60 | V 30 | BL | |
28.36 € | 1 | Available | 5 Days | - | 60 | V 30 | SW | |
28.26 € | 1 | Available | 5 Days | - | 60 | V 35 | BL | |
28.24 € | 1 | Available | 5 Days | - | 60 | V 35 | SW | |
28.26 € | 1 | Available | 5 Days | - | 60 | V 40 | BL | |
28.24 € | 1 | Available | 5 Days | - | 60 | V 40 | SW | |
30.04 € | 1 | Available | 5 Days | - | 76 | V 40 | BL | |
30.06 € | 1 | Available | 5 Days | - | 76 | V 40 | SW | |
30.20 € | 1 | Available | 5 Days | - | 76 | V 45 | BL | |
30.22 € | 1 | Available | 5 Days | - | 76 | V 45 | SW | |
30.20 € | 1 | Available | 5 Days | - | 76 | V 50 | BL | |
29.94 € | 1 | Available | 5 Days | - | 76 | V 50 | SW |
Loading...
Basic information
| Identification No. | 2, with 2 Stainless Steel-clamping screws DIN 912 |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Bore d1(mm)
-
Width k
- 50
- 60
- 76
-
Square s1
-
Finish
- BL
- SW
-
Type
- 241
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
