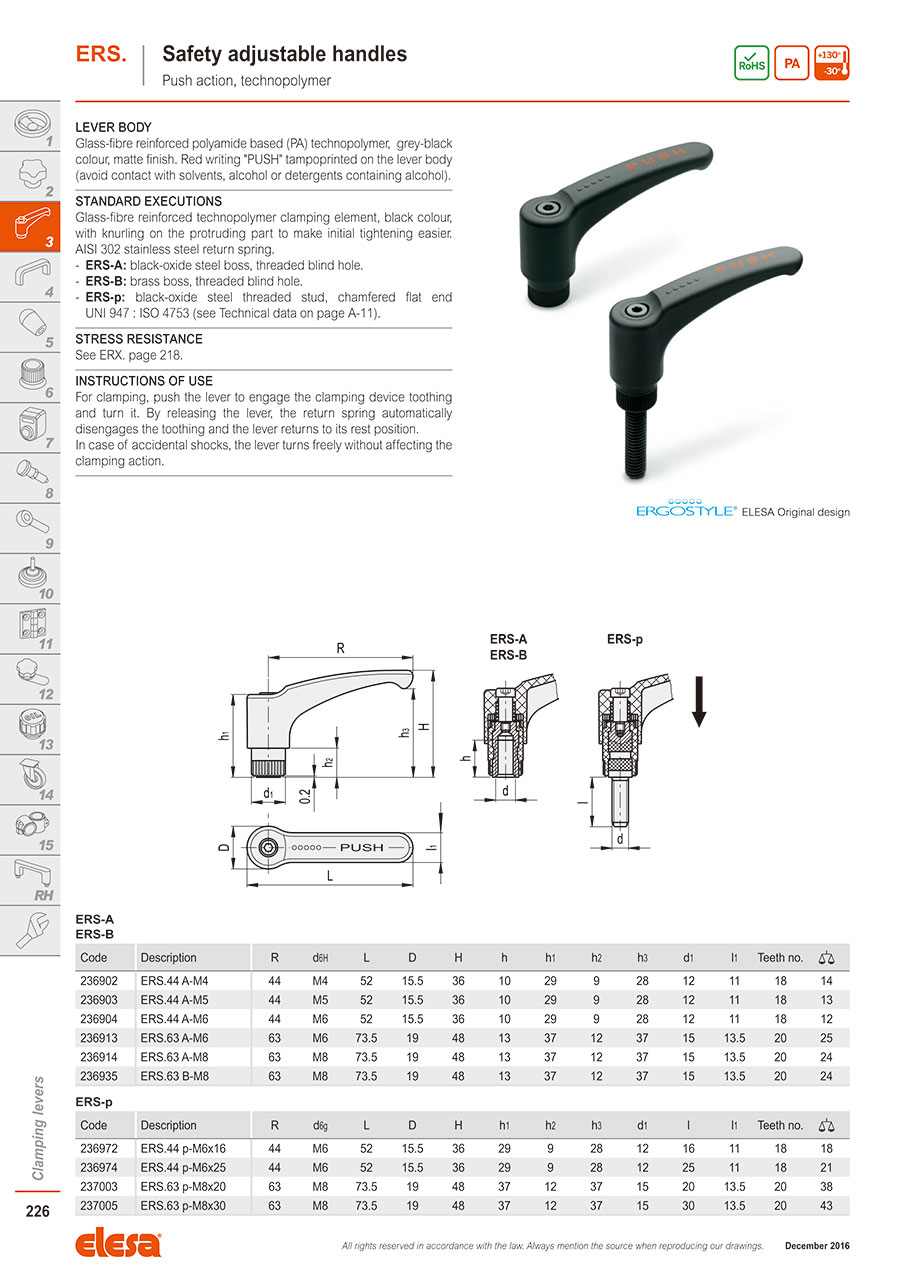

ERS. - Safety adjustable handles -Push action technopolymer
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 236902 |
| 236903 |
| 236904 |
| 236913 |
| 236914 |
| 236935 |
| 236972 |
| 236974 |
| 237003 |
| 237005 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | R (mm) | l (mm) | d (mm) | L | D | H | h1 | h2 | h3 | d1 | h | Hole | l1 | Lever length | Teeth no | Threaded screw | Sub execution | Type of assembly | Description | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5.30 € | 10 | Available | 4 Days | 44 | - | M4 | 52 | 15.5 | 36 | 29 | 9 | 28 | 12 | 10 | M4 | 11 | 45 | 18 | - | ERS-A | Blind hole | ERS.44 A-M4 | |
5.30 € | 10 | Available | 4 Days | 44 | - | M5 | 52 | 15.5 | 36 | 29 | 9 | 28 | 12 | 10 | M5 | 11 | 45 | 18 | - | ERS-A | Blind hole | ERS.44 A-M5 | |
5.26 € | 10 | Available | 4 Days | 44 | - | M6 | 52 | 15.5 | 36 | 29 | 9 | 28 | 12 | 10 | M6 | 11 | 45 | 18 | - | ERS-A | Blind hole | ERS.44 A-M6 | |
5.50 € | 10 | Available | 4 Days | 63 | - | M6 | 73.5 | 19 | 48 | 37 | 12 | 37 | 15 | 13 | M6 | 13.5 | 65 | 20 | - | ERS-A | Blind hole | ERS.63 A-M6 | |
5.50 € | 10 | Available | 4 Days | 63 | - | M8 | 73.5 | 19 | 48 | 37 | 12 | 37 | 15 | 13 | M8 | 13.5 | 65 | 20 | - | ERS-A | Blind hole | ERS.63 A-M8 | |
5.94 € | 10 | Available | 4 Days | 63 | - | M8 | 73.5 | 19 | 48 | 37 | 12 | 37 | 15 | 13 | M8 | 13.5 | 65 | 20 | - | ERS-B | Blind hole | ERS.63 B-M8 | |
5.28 € | 10 | Available | 4 Days | 44 | 16 | M6 | 52 | 15.5 | 36 | 29 | 9 | 28 | 12 | - | - | 11 | 45 | 18 | M6 | ERS-p | Threaded screw | ERS.44 p-M6x16 | |
5.37 € | 10 | Available | 4 Days | 44 | 25 | M6 | 52 | 15.5 | 36 | 29 | 9 | 28 | 12 | - | - | 11 | 45 | 18 | M6 | ERS-p | Threaded screw | ERS.44 p-M6x25 | |
5.81 € | 1 | Available |
Same day
Stock | 63 | 20 | M8 | 73.5 | 19 | 48 | 37 | 12 | 37 | 15 | - | - | 13.5 | 65 | 20 | M8 | ERS-p | Threaded screw | ERS.63 p-M8x20 | |
5.85 € | 1 | Available |
Same day
Stock | 63 | 30 | M8 | 73.5 | 19 | 48 | 37 | 12 | 37 | 15 | - | - | 13.5 | 65 | 20 | M8 | ERS-p | Threaded screw | ERS.63 p-M8x30 |
Loading...
Basic information
| Material | Technopolymer | High performing lines | Ergostyle |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
R(mm)
-
l(mm)
-
d(mm)
-
L
-
D
-
H
-
h1
-
h2
-
h3
-
d1
-
h
-
Hole
-
l1
-
Lever length
- 45
- 65
-
Teeth no
- 18
- 20
-
Threaded screw
- M6
- M8
-
Sub execution
-
Type of assembly
- Blind hole
- Threaded screw
-
Type
- 236
- 237
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
