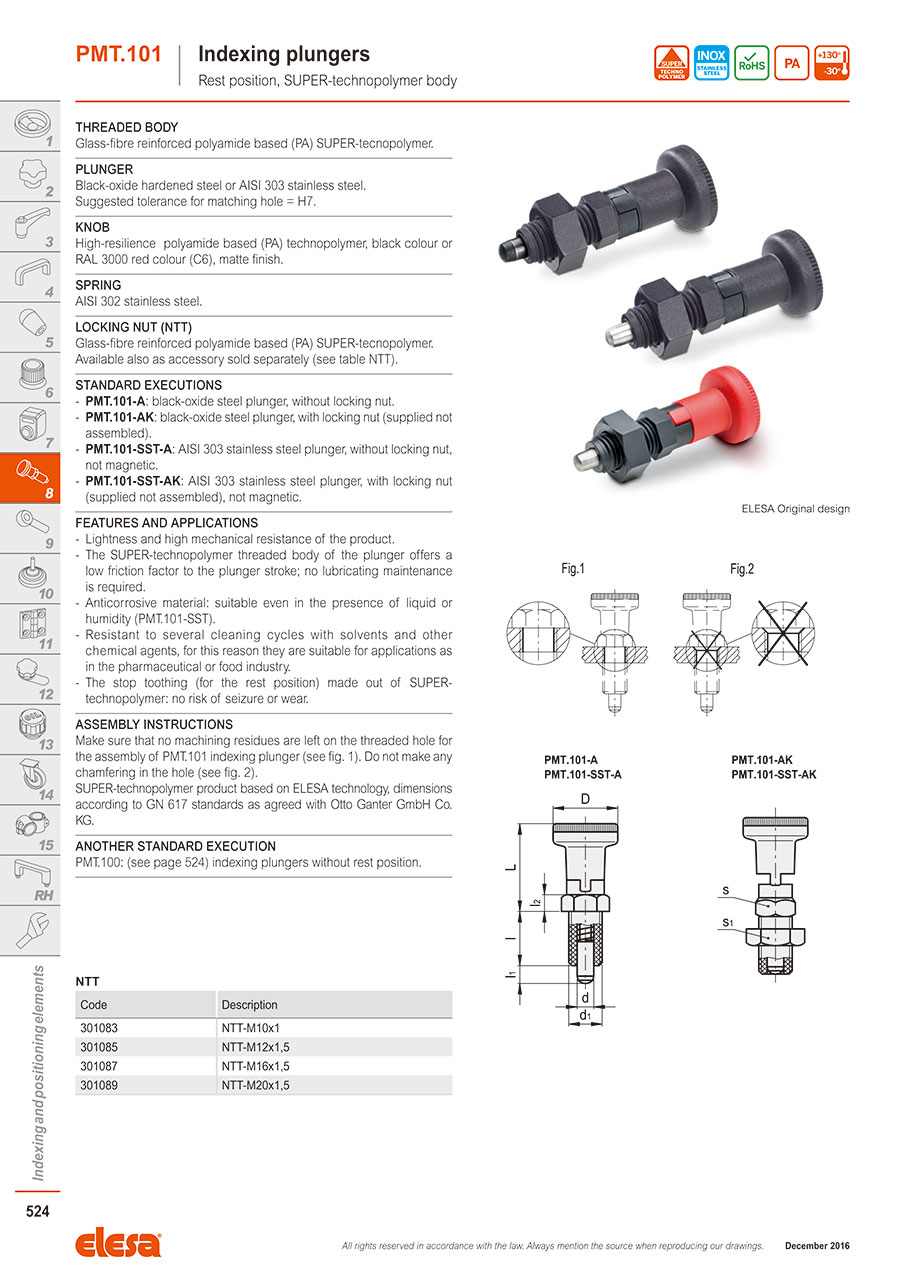

PMT.101 - Indexing plungers -Rest position SUPER-technopolymer body
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 51601-C6 |
| 51602-C6 |
| 51611-C6 |
| 51612-C6 |
| 51621-C6 |
| 51622-C6 |
| 51631-C6 |
| 51632-C6 |
| 51651-C6 |
| 51652-C6 |
| 51661-C6 |
| 51662-C6 |
| 51671-C6 |
| 51672-C6 |
| 51681-C6 |
| 51682-C6 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Material | d1 (mm) | l1 (mm) | d (Ø) | d1 Pitch | D | L | l | l2 | s | s1 | newton unit* | newton unit# | max tightening torque unit | static load at breakage F unit | Sub execution | High performing lines | Description | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5.37 € | 1 | Available |
Same day
Stock | [Polyamide] Technopolymer | M10 | 5 | 5 | 1 | 21 | 29 | 17 | 5 | 12 | - | 7 | 17 | 6 | 2300 | PMT.101 | SUPER-Technopolymer | PMT.101-5-M10x1-A-C6 | |
5.81 € | 1 | Available |
Same day
Stock | [Polyamide] Technopolymer | M12 | 6 | 6 | 1.5 | 25 | 35 | 20 | 6 | 14 | - | 9 | 24 | 10 | 3500 | PMT.101 | SUPER-Technopolymer | PMT.101-6-M12x1,5-A-C6 | |
6.93 € | 1 | Available |
Same day
Stock | [Polyamide] Technopolymer | M16 | 8 | 8 | 1.5 | 31 | 43 | 26 | 8 | 19 | - | 11 | 30 | 18 | 5900 | PMT.101 | SUPER-Technopolymer | PMT.101-8-M16x1,5-A-C6 | |
7.50 € | 1 | Available |
Same day
Stock | [Polyamide] Technopolymer | M20 | 10 | 10 | 1.5 | 31 | 48 | 33 | 10 | 22 | - | 19 | 45 | 25 | 7700 | PMT.101 | SUPER-Technopolymer | PMT.101-10-M20x1,5-A-C6 | |
5.78 € | 10 | 4 Days | [Polyamide] Technopolymer | M10 | 5 | 5 | 1 | 21 | 29 | 17 | 5 | 12 | 16 | 7 | 17 | 6 | 2300 | PMT.101 | SUPER-Technopolymer | PMT.101-5-M10x1-AK-C6 | ||
6.82 € | 1 | Available |
Same day
Stock | [Polyamide] Technopolymer | M12 | 6 | 6 | 1.5 | 25 | 35 | 20 | 6 | 14 | 19 | 9 | 24 | 10 | 3500 | PMT.101 | SUPER-Technopolymer | PMT.101-6-M12x1,5-AK-C6 | |
8.10 € | 5 | Available | 4 Days | [Polyamide] Technopolymer | M16 | 8 | 8 | 1.5 | 31 | 43 | 26 | 8 | 19 | 24 | 11 | 30 | 18 | 5900 | PMT.101 | SUPER-Technopolymer | PMT.101-8-M16x1,5-AK-C6 | |
8.80 € | 1 | Available |
Same day
Stock | [Polyamide] Technopolymer | M20 | 10 | 10 | 1.5 | 31 | 48 | 33 | 10 | 22 | 30 | 19 | 45 | 25 | 7700 | PMT.101 | SUPER-Technopolymer | PMT.101-10-M20x1,5-AK-C6 | |
6.12 € | 1 | Available |
Same day
Stock | [Polyamide] Technopolymer | M10 | 5 | 5 | 1 | 21 | 29 | 17 | 5 | 12 | - | 7 | 17 | 6 | 1800 | PMT.101-SST | SUPER-Technopolymer | PMT.101-SST-5-M10x1-A-C6 | |
7.46 € | 1 | Available |
Same day
Stock | Stainless steel | M12 | 6 | 6 | 1.5 | 25 | 35 | 20 | 6 | 14 | - | 9 | 24 | 10 | 2900 | PMT.101-SST | Inox | PMT.101-SST-6-M12x1,5-A-C6 | |
8.69 € | 1 | Available |
Same day
Stock | [Polyamide] Technopolymer | M16 | 8 | 8 | 1.5 | 31 | 43 | 26 | 8 | 19 | - | 11 | 30 | 18 | 4400 | PMT.101-SST | SUPER-Technopolymer | PMT.101-SST-8-M16x1,5-A-C6 | |
10.30 € | 5 | Available | 4 Days | [Polyamide] Technopolymer | M20 | 10 | 10 | 1.5 | 31 | 48 | 33 | 10 | 22 | - | 19 | 45 | 25 | 6800 | PMT.101-SST | Inox | PMT.101-SST-10-M20x1,5-A-C6 | |
7.04 € | 1 | Available |
Same day
Stock | [Polyamide] Technopolymer | M10 | 5 | 5 | 1 | 21 | 29 | 17 | 5 | 12 | 16 | 7 | 17 | 6 | 1800 | PMT.101-SST | SUPER-Technopolymer | PMT.101-SST-5-M10x1-AK-C6 | |
8.38 € | 5 | Available | 4 Days | Stainless steel | M12 | 6 | 6 | 1.5 | 25 | 35 | 20 | 6 | 14 | 19 | 9 | 24 | 10 | 2900 | PMT.101-SST | SUPER-Technopolymer | PMT.101-SST-6-M12x1,5-AK-C6 | |
9.88 € | 1 | Available |
Same day
Stock | [Polyamide] Technopolymer | M16 | 8 | 8 | 1.5 | 31 | 43 | 26 | 8 | 19 | 24 | 11 | 30 | 18 | 4400 | PMT.101-SST | SUPER-Technopolymer | PMT.101-SST-8-M16x1,5-AK-C6 | |
11.57 € | 1 | Available |
Same day
Stock | Stainless steel | M20 | 10 | 10 | 1.5 | 31 | 48 | 33 | 10 | 22 | 30 | 19 | 45 | 25 | 6800 | PMT.101-SST | SUPER-Technopolymer | PMT.101-SST-10-M20x1,5-AK-C6 |
Loading...
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Material
- Stainless steel
- Polyamide
-
d1(mm)
-
l1(mm)
-
d(Ø)
-
d1 Pitch
- 1
- 1.5
-
D
- 21
- 25
- 31
-
L
-
l
- 17
- 20
- 26
- 33
-
l2
- 5
- 6
- 8
- 10
-
s
- 12
- 14
- 19
- 22
-
s1
- 16
- 19
- 24
- 30
-
newton unit*
- 7
- 9
- 11
- 19
-
newton unit#
- 17
- 24
- 30
- 45
-
max tightening torque unit
- 6
- 10
- 18
- 25
-
static load at breakage F unit
- 1800
- 2300
- 2900
- 3500
- 4400
- 5900
- 6800
- 7700
-
Sub execution
- PMT.101
- PMT.101-SST
-
High performing lines
- Inox
- SUPER-Technopolymer
-
Type
- 516
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
