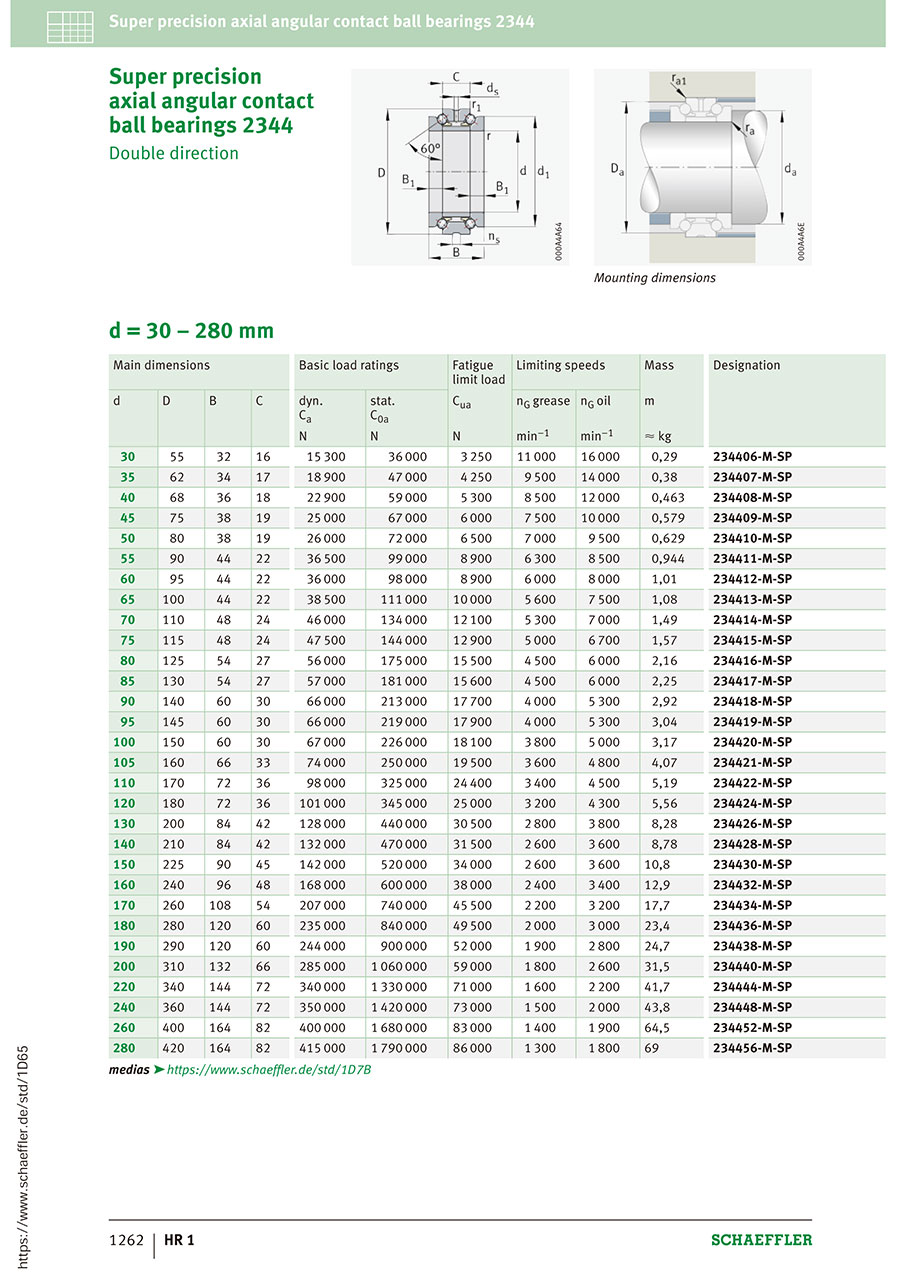

Angular contact ball bearings / close tolerances / contact angle 60° / 2344 / FAG
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Inner Diameter d (φ) | Outer Diameter D (φ) | Width B (or T) (mm) | Load Direction | Basic Load Rating Dynamic Rating (Ca) (N) | Basic Load Rating Static Rating(Coa) (N) | RoHS Certificate | REACH Certificate | Customs tariff — weight | Customs tariff — weight unit | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
538.00 € | 1 | Available | 3 Days | 35 | 62 | 34 | Thrust | 19100 | 46500 | - | - | - | - | ||
538.00 € | 1 | Available | 3 Days | 40 | 68 | 36 | Thrust | 22800 | 58000 | - | - | - | - | ||
742.62 € | 1 | Available | 5 Days | 45 | 75 | 38 | Thrust | 25000 | 67000 | - | - | - | - | ||
578.97 € | 1 | Available | 3 Days | 50 | 80 | 38 | Thrust | 27500 | 79000 | - | - | - | - | ||
659.20 € | 1 | Available | 3 Days | 55 | 90 | 44 | Thrust | 37500 | 102000 | - | - | - | - | ||
722.41 € | 1 | 17 Days | 60 | 95 | 44 | Thrust | 37000 | 102000 | - | - | - | - | |||
686.23 € | 1 | Available | 3 Days | 65 | 100 | 44 | Thrust | 39500 | 115000 | - | - | - | - | ||
700.18 € | 1 | Available | 3 Days | 70 | 110 | 48 | Thrust | 45500 | 133000 | - | - | - | - | ||
962.34 € | 1 | Available | 5 Days | 75 | 115 | 48 | Thrust | 47500 | 144000 | - | - | - | - | ||
730.71 € | 1 | Available | 11 Days | 80 | 125 | 54 | Thrust | 57000 | 173000 | - | - | - | - | ||
842.18 € | 1 | 17 Days | 85 | 130 | 54 | Thrust | 57000 | 179000 | - | - | - | - | |||
1,088.07 € | 1 | Available | 5 Days | 90 | 140 | 60 | Thrust | 66000 | 213000 | - | - | - | - | ||
888.52 € | 1 | Available | 3 Days | 95 | 145 | 60 | Thrust | 67000 | 222000 | - | - | - | - | ||
896.35 € | 1 | Available | 3 Days | 100 | 150 | 60 | Thrust | 68000 | 229000 | - | - | - | - | ||
1,594.50 € | 1 | Available | 5 Days | 105 | 160 | 66 | Thrust | 74000 | 250000 | - | - | - | - | ||
1,326.25 € | 1 | Available | 3 Days | 130 | 200 | 84 | Thrust | 128000 | 440000 | - | - | - | - | ||
| - | 1,782.28 € | 1 | Available | 3 Days | 140 | 210 | 84 | - | - | - | - | - | - | - | |
3,984.46 € | 1 | Available | 5 Days | 150 | 225 | 90 | Thrust | 143000 | 510000 | - | - | - | - | ||
| - | 3,704.94 € | 1 | Available | 3 Days | 160 | 240 | 96 | - | - | - | - | - | - | - | |
5,954.97 € | 1 | Available | 5 Days | 170 | 260 | 108 | Thrust | 213000 | 770000 | - | - | - | - | ||
- | 1 | 4 Days | 180 | 280 | 120 | Thrust | 237000 | 880000 | Available | Available | 23.4 | kg | |||
- | 1 | 4 Days | 190 | 290 | 120 | Thrust | 246000 | 940000 | Available | Available | 24.7 | kg |
Loading...
Configure
Basic Attributes
-
Inner Diameter d(φ)
-
Outer Diameter D(φ)
-
Width B (or T)(mm)
-
Load Direction
- Thrust
-
RoHS Certificate
- Available
-
REACH Certificate
- Available
-
Customs tariff — weight
-
Customs tariff — weight unit
- kg
-
Type
- 2344
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 3 Days or Less
- 4 Days or Less
- 5 Days or Less
- 11 Days or Less
- 17 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
