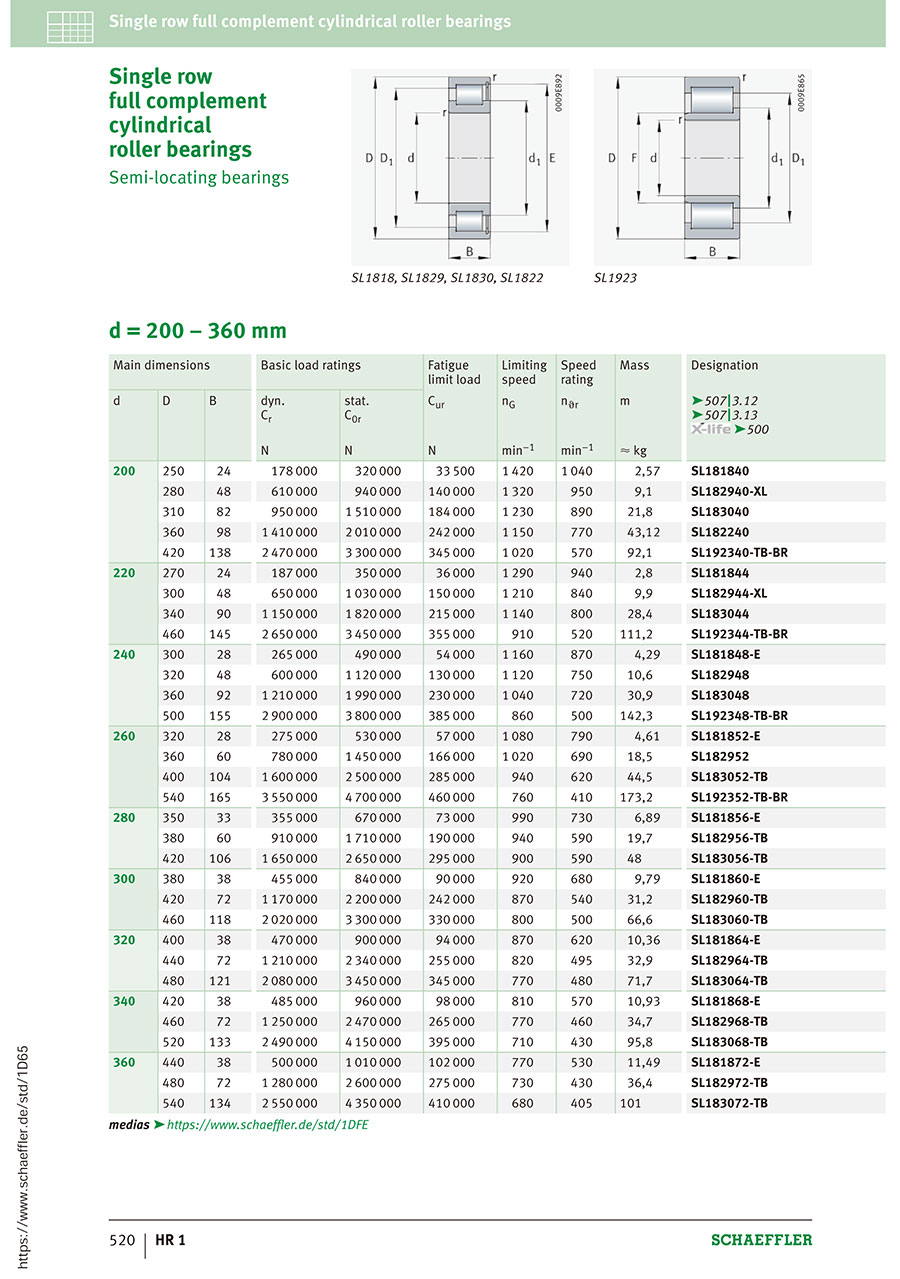

Cylindrical roller bearings SL1818, semi-locating bearing, full complement cylindrical roller set, dimension series 18
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Internal Diameter (mm) | Outer Diameter (mm) | Width (mm) | Allowable Rotational Speed (1/min) | Basic Load Rating, Dynamic Rating (N) | Basic Load Rating, Static Rating (N) | RoHS Certificate | REACH Certificate | Customs tariff — weight | Customs tariff — weight unit | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 725.87 € | 1 | 17 Days | 200 | 250 | 24 | - | - | - | - | - | - | - | ||
| - | 892.47 € | 1 | Available | 5 Days | 200 | 250 | 24 | - | - | - | - | - | - | - | |
| - | 811.71 € | 1 | Available | 5 Days | 200 | 250 | 24 | - | - | - | - | - | - | - | |
| - | 842.98 € | 1 | Available | 5 Days | 220 | 270 | 24 | - | - | - | - | - | - | - | |
| - | 1,103.68 € | 1 | Available | 5 Days | 220 | 270 | 24 | - | - | - | - | - | - | - | |
| - | 1,001.95 € | 1 | Available | 5 Days | 220 | 270 | 24 | - | - | - | - | - | - | - | |
989.98 € | 1 | Available | 3 Days | 240 | 300 | 28 | 1160 | 265000 | 490000 | - | - | - | - | ||
| - | 1,295.00 € | 1 | Available | 5 Days | 240 | 300 | 28 | - | - | - | - | - | - | - | |
| - | 1,052.22 € | 1 | 17 Days | 240 | 300 | 28 | - | - | - | - | - | - | - | ||
1,269.78 € | 1 | 17 Days | 260 | 320 | 28 | 1080 | 275000 | 530000 | - | - | - | - | |||
| - | 1,561.53 € | 1 | Available | 5 Days | 260 | 320 | 28 | - | - | - | - | - | - | - | |
| - | 1,269.78 € | 1 | 17 Days | 260 | 320 | 28 | - | - | - | - | - | - | - | ||
1,512.89 € | 1 | Available | 3 Days | 280 | 350 | 33 | 990 | 355000 | 670000 | - | - | - | - | ||
| - | 1,978.45 € | 1 | Available | 5 Days | 280 | 350 | 33 | - | - | - | - | - | - | - | |
| - | 1,512.89 € | 1 | Available | 3 Days | 280 | 350 | 33 | - | - | - | - | - | - | - | |
2,059.08 € | 1 | Available | 3 Days | 300 | 380 | 38 | 920 | 455000 | 840000 | - | - | - | - | ||
| - | 2,692.87 € | 1 | Available | 5 Days | 300 | 380 | 38 | - | - | - | - | - | - | - | |
| - | 2,447.35 € | 1 | Available | 5 Days | 300 | 380 | 38 | - | - | - | - | - | - | - | |
2,515.83 € | 1 | 17 Days | 320 | 400 | 38 | 870 | 470000 | 900000 | - | - | - | - | |||
| - | 3,094.28 € | 1 | Available | 5 Days | 320 | 400 | 38 | - | - | - | - | - | - | - | |
| - | 2,515.83 € | 1 | 17 Days | 320 | 400 | 38 | - | - | - | - | - | - | - | ||
3,076.97 € | 1 | Available | 3 Days | 340 | 420 | 38 | 810 | 485000 | 960000 | - | - | - | - | ||
| - | 3,384.94 € | 1 | Available | 3 Days | 340 | 420 | 38 | - | - | - | - | - | - | - | |
| - | 3,270.39 € | 1 | 17 Days | 340 | 420 | 38 | - | - | - | - | - | - | - | ||
3,467.19 € | 1 | 17 Days | 360 | 440 | 38 | 770 | 500000 | 1010000 | - | - | - | - | |||
| - | 3,813.31 € | 1 | 17 Days | 360 | 440 | 38 | - | - | - | - | - | - | - | ||
| - | 3,877.27 € | 1 | Available | 5 Days | 360 | 440 | 38 | - | - | - | - | - | - | - | |
4,020.99 € | 1 | 17 Days | 380 | 480 | 46 | 710 | 650000 | 1290000 | - | - | - | - | |||
| - | 4,945.57 € | 1 | Available | 5 Days | 380 | 480 | 46 | - | - | - | - | - | - | - | |
4,401.91 € | 1 | Available | 3 Days | 400 | 500 | 46 | 680 | 660000 | 1340000 | - | - | - | - | ||
| - | 5,755.07 € | 1 | Available | 5 Days | 400 | 500 | 46 | - | - | - | - | - | - | - | |
| - | 5,231.98 € | 1 | Available | 5 Days | 400 | 500 | 46 | - | - | - | - | - | - | - | |
| - | 6,941.70 € | 1 | Available | 5 Days | 420 | 520 | 46 | - | - | - | - | - | - | - | |
| - | 6,310.23 € | 1 | Available | 5 Days | 420 | 520 | 46 | - | - | - | - | - | - | - | |
5,726.86 € | 1 | Available | 3 Days | 440 | 540 | 46 | 620 | 700000 | 1470000 | - | - | - | - | ||
| - | 7,488.02 € | 1 | Available | 5 Days | 440 | 540 | 46 | - | - | - | - | - | - | - | |
| - | 7,343.17 € | 1 | Available | 5 Days | 460 | 580 | 56 | - | - | - | - | - | - | - | |
| - | - | 1 | 4 Days | 460 | 580 | 56 | - | - | - | Available | Available | 32 | kg | ||
| - | 6,795.94 € | 1 | Available | 3 Days | 460 | 580 | 56 | - | - | - | - | - | - | - | |
| - | - | 1 | 4 Days | 460 | 580 | 56 | - | - | - | - | - | - | - | ||
| - | - | 1 | 4 Days | 480 | 600 | 56 | - | - | - | - | - | - | - | ||
| - | 8,701.19 € | 1 | Available | 5 Days | 480 | 600 | 56 | - | - | - | - | - | - | - |
Loading...
Configure
Basic Attributes
-
Internal Diameter(mm)
-
Outer Diameter(mm)
-
Width(mm)
-
RoHS Certificate
- Available
-
REACH Certificate
- Available
-
Customs tariff — weight
-
Customs tariff — weight unit
- kg
-
Type
- SL
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 3 Days or Less
- 4 Days or Less
- 5 Days or Less
- 17 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
