Housing units RATY, two-bolt flanged housing units, sheet steel, grub screws in inner ring, P seals
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|

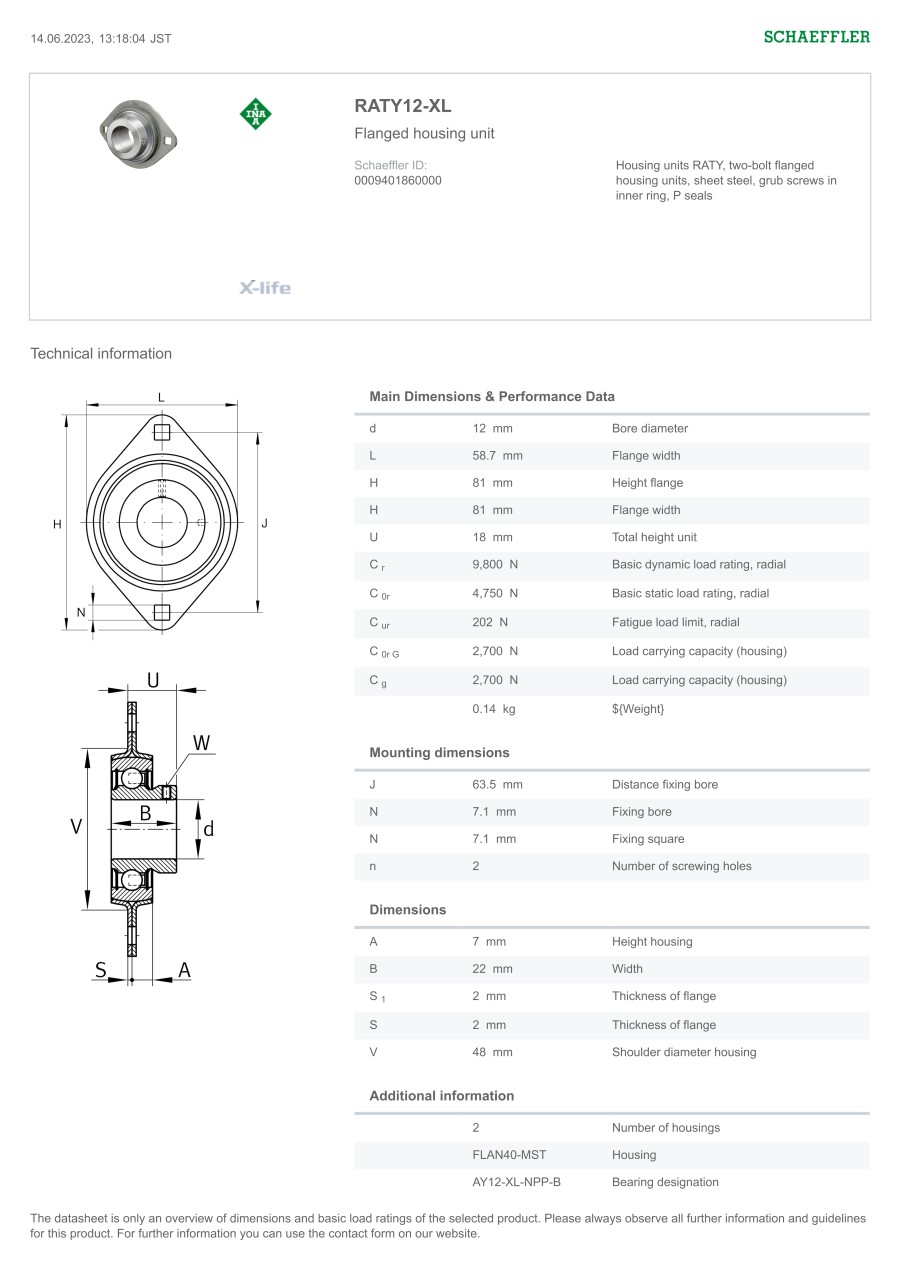

| RATY12-XL |
| RATY15-XL |
| RATY17-XL |
| RATY20-XL |
| RATY25-XL |
| RATY30-XL |
| RATY35-XL |
| RATY40-XL |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Shaft Bore Dia. d (mm) | Basic Load Rating, Dynamic Rating (N) | Basic Load Rating, Static Rating (N) | Width (mm) | H (mm) | Housing | |
|---|---|---|---|---|---|---|---|---|---|---|---|
22.80 € | 1 | Available | 5 Days | 12 | 9800 | 4750 | 18 | - | FLAN40-MST | ||
23.20 € | 1 | Available | 5 Days | 15 | 10100 | 4750 | 18 | - | FLAN40-MST | ||
17.38 € | 1 | Available | 3 Days | 17 | 9800 | 4750 | 18 | - | FLAN40-MST | ||
18.11 € | 1 | Available | 3 Days | 20 | 12800 | 6600 | 20 | - | FLAN47-MST | ||
19.68 € | 1 | Available | 3 Days | 25 | 14000 | 7800 | 27 | - | FLAN52-MST | ||
23.57 € | 1 | Available | 3 Days | 30 | 19500 | 11300 | 23.5 | 112.7 | FLAN62-MST | ||
28.74 € | 1 | Available | 3 Days | 35 | 27500 | 15300 | 28 | 123 | FLAN72-MST | ||
34.58 € | 1 | Available | 3 Days | 40 | 32500 | 19800 | 32.5 | 151 | FLAN80-MST |
Loading...
Configure
Basic Attributes
-
Shaft Bore Dia. d(mm)
-
Width(mm)
-
H(mm)
-
Housing
-
Type
- RATY
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 3 Days or Less
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
