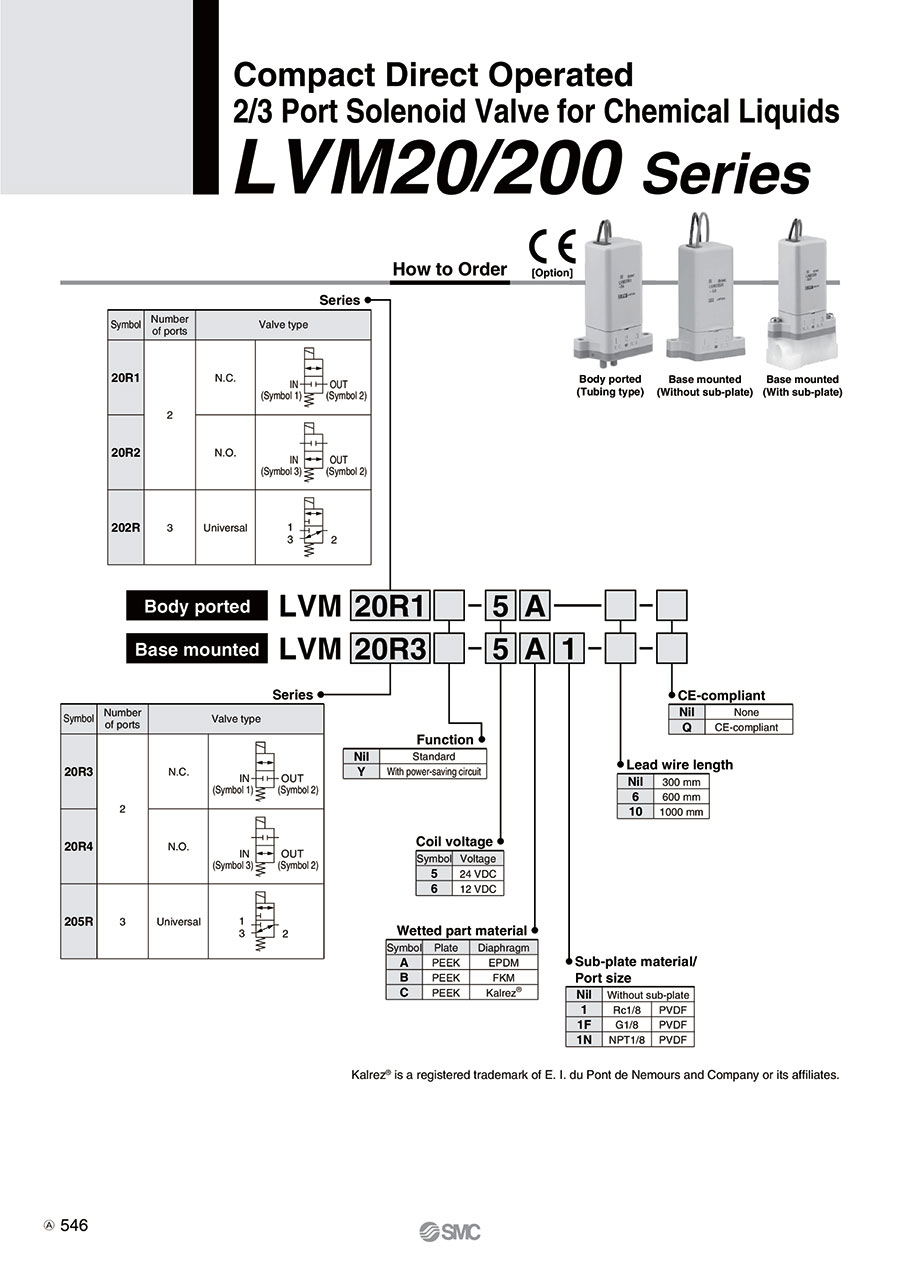

LVM20 / 200, 2 / 3 Port Solenoid Valve for Chemicals

LVM20 / 200, 2 / 3 Port Solenoid Valve for Chemicals

SMC

SMC

· A series of valves with a maximum change in volume of just 0.01 μL when opened or closed.
[Features]
· Body ported types and base mounted types.
· A compact direct operated 2/3 port solenoid valve for chemical liquids.
· Optional power-saving circuit.
· Space saving.
[Applications]
· Various types of analytic and testing devices.

(i)Remark

  • Webpages for products currently without individual pages on this site will be released on an ad-hoc basis.
  • Refer to the manufacturer's catalog for specification and material details.
  • Product images may be representative images. Refer to the manufacturer's catalog for shape details.​

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
  2. 2
  3. Next >>
Part Number
LVM20R1-5A-Q
LVM20R1-5B-Q
LVM20R1-5C-Q
LVM20R3-5A1-Q
LVM20R3-5A1F-10-Q
LVM20R3-5A1F-Q
LVM20R3-5A1N-Q
LVM20R3-5A-6-Q
LVM20R3-5A-10-Q
LVM20R3-5A-Q
LVM20R3-5B1-10-Q
LVM20R3-5B1-Q
LVM20R3-5B1F-Q
LVM20R3-5B1N-Q
LVM20R3-5B-6-Q
LVM20R3-5B-10-Q
LVM20R3-5B-Q
LVM20R3-5C1-6-Q
LVM20R3-5C1-Q
LVM20R3-5C1F-Q
LVM20R3-5C-6-Q
LVM20R3-5C-10-Q
LVM20R3-5C-Q
LVM20R3-6A-6-Q
LVM20R3-6A-Q
LVM20R3-6B-10-Q
LVM20R3-6B-Q
LVM20R3-6C-Q
LVM20R3Y-5A1-Q
LVM20R3Y-5A-6-Q
LVM20R3Y-5A-10-Q
LVM20R3Y-5A-Q
LVM20R3Y-5B1-Q
LVM20R3Y-5B-6-Q
LVM20R3Y-5B-10-Q
LVM20R3Y-5B-Q
LVM20R3Y-5C1-Q
LVM20R3Y-5C-6-Q
LVM20R3Y-5C-10-Q
LVM20R3Y-5C-Q
LVM20R3Y-6A-Q
LVM20R4-5A1F-Q
LVM20R4-5A-Q
LVM20R4-5B1-10-Q
LVM20R4-5B-Q
LVM20R4-5C1F-Q
LVM20R4-5C-6-Q
LVM20R4-5C-Q
LVM20R4-6A-Q
LVM20R4-6C-Q
LVM20R4Y-5A-6-Q
LVM20R4Y-5B-Q
LVM20R4Y-5C-Q
LVM202R-5A-6-Q
LVM202R-5A-Q
LVM202R-5C-Q
LVM202RY-6B-Q
LVM205R-5A1-Q
LVM205R-5A1F-6-Q
LVM205R-5A1F-10-Q
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Switching Type Connection Type Tube Diameter Orifice Diameter
(mm) 		Pipe opening type (details) Voltage Power consumption
(W) 		Lead wire length
(mm) 		Liquid-contacting parts material Functions Subplate specifications CE compliant Number of ports

63.31 €

1 26 Days Normally ClosedTube ConnectionØ3.42Body Ported Type24 V DC2.5300Plate: PEEK / Diaphragm: EPDMStandard TypeWithout sub-plateCE compliant-

71.92 €

1 26 Days Normally ClosedTube ConnectionØ3.42Body Ported Type24 V DC2.5300Plate: PEEK / Diaphragm: FKMStandard TypeWithout sub-plateCE compliant-

122.03 €

1 26 Days Normally ClosedTube ConnectionØ3.4-Body Ported Type-2.5300Plate: PEEK, Diaphragm: Kalrez (R)Standard TypeWithout sub-plateCE-compliant product2

92.06 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: EPDMStandard TypeMaterial: PVDF / Diameter: Rc 1/8CE compliant-

94.81 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.51,000Plate: PEEK / Diaphragm: EPDMStandard TypeMaterial: PVDF / Diameter: G1/8CE compliant-

92.06 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: EPDMStandard TypeMaterial: PVDF / Diameter: G1/8CE compliant-

92.06 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: EPDMStandard TypeMaterial: PVDF / Diameter: NPT 1/8CE compliant-

65.19 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5600Plate: PEEK / Diaphragm: EPDMStandard TypeWithout sub-plateCE compliant-

66.02 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.51,000Plate: PEEK / Diaphragm: EPDMStandard TypeWithout sub-plateCE compliant-

63.31 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: EPDMStandard TypeWithout sub-plateCE compliant-

103.42 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.51,000Plate: PEEK / Diaphragm: FKMStandard TypeMaterial: PVDF / Diameter: Rc 1/8CE compliant-

100.69 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: FKMStandard TypeMaterial: PVDF / Diameter: Rc 1/8CE compliant-

100.69 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: FKMStandard TypeMaterial: PVDF / Diameter: G1/8CE compliant-

100.69 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: FKMStandard TypeMaterial: PVDF / Diameter: NPT 1/8CE compliant-

73.82 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5600Plate: PEEK / Diaphragm: FKMStandard TypeWithout sub-plateCE compliant-

74.63 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.51,000Plate: PEEK / Diaphragm: FKMStandard TypeWithout sub-plateCE compliant-

71.92 €

1 Quote Normally ClosedOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: FKMStandard TypeWithout sub-plateCE compliant-

152.73 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5600Plate: PEEK / Diaphragm: KalrezStandard TypeMaterial: PVDF / Diameter: Rc 1/8CE compliant-

150.81 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: KalrezStandard TypeMaterial: PVDF / Diameter: Rc 1/8CE compliant-

150.81 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: KalrezStandard TypeMaterial: PVDF / Diameter: G1/8CE compliant-

123.94 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5600Plate: PEEK / Diaphragm: KalrezStandard TypeWithout sub-plateCE compliant-

124.74 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.51,000Plate: PEEK / Diaphragm: KalrezStandard TypeWithout sub-plateCE compliant-

122.02 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: KalrezStandard TypeWithout sub-plateCE compliant-

65.19 €

1 26 Days Normally ClosedOthers-2Base Mounted Type12 V DC2.5600Plate: PEEK / Diaphragm: EPDMStandard TypeWithout sub-plateCE compliant-

63.31 €

1 26 Days Normally ClosedOthers-2Base Mounted Type12 V DC2.5300Plate: PEEK / Diaphragm: EPDMStandard TypeWithout sub-plateCE compliant-

74.63 €

1 26 Days Normally ClosedOthers-2Base Mounted Type12 V DC2.51,000Plate: PEEK / Diaphragm: FKMStandard TypeWithout sub-plateCE compliant-

71.92 €

1 26 Days Normally ClosedOthers-2Base Mounted Type12 V DC2.5300Plate: PEEK / Diaphragm: FKMStandard TypeWithout sub-plateCE compliant-

122.02 €

1 26 Days Normally ClosedOthers-2Base Mounted Type12 V DC2.5300Plate: PEEK / Diaphragm: KalrezStandard TypeWithout sub-plateCE compliant-

103.60 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DCInrush: 4 / Holding: 0.6300Plate: PEEK / Diaphragm: EPDMWith power-saving circuitMaterial: PVDF / Diameter: Rc 1/8CE compliant-

76.73 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DCInrush: 4 / Holding: 0.6600Plate: PEEK / Diaphragm: EPDMWith power-saving circuitWithout sub-plateCE compliant-

77.53 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DCInrush: 4 / Holding: 0.61,000Plate: PEEK / Diaphragm: EPDMWith power-saving circuitWithout sub-plateCE compliant-

74.82 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DCInrush: 4 / Holding: 0.6300Plate: PEEK / Diaphragm: EPDMWith power-saving circuitWithout sub-plateCE compliant-

112.23 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DCInrush: 4 / Holding: 0.6300Plate: PEEK / Diaphragm: FKMWith power-saving circuitMaterial: PVDF / Diameter: Rc 1/8CE compliant-

85.34 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DCInrush: 4 / Holding: 0.6600Plate: PEEK / Diaphragm: FKMWith power-saving circuitWithout sub-plateCE compliant-

86.15 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DCInrush: 4 / Holding: 0.61,000Plate: PEEK / Diaphragm: FKMWith power-saving circuitWithout sub-plateCE compliant-

83.44 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DCInrush: 4 / Holding: 0.6300Plate: PEEK / Diaphragm: FKMWith power-saving circuitWithout sub-plateCE compliant-

162.32 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DCInrush: 4 / Holding: 0.6300Plate: PEEK / Diaphragm: KalrezWith power-saving circuitMaterial: PVDF / Diameter: Rc 1/8CE compliant-

135.47 €

1 26 Days Normally ClosedOthers--Base Mounted Type-Inrush: 4/Holding: 0.6600Plate: PEEK, Diaphragm: Kalrez (R)With power-saving circuitWithout sub-plateCE-compliant product2

136.26 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DCInrush: 4 / Holding: 0.61,000Plate: PEEK / Diaphragm: KalrezWith power-saving circuitWithout sub-plateCE compliant-

133.53 €

1 26 Days Normally ClosedOthers-2Base Mounted Type24 V DCInrush: 4 / Holding: 0.6300Plate: PEEK / Diaphragm: KalrezWith power-saving circuitWithout sub-plateCE compliant-

74.82 €

1 26 Days Normally ClosedOthers-2Base Mounted Type12 V DCInrush: 4 / Holding: 0.6300Plate: PEEK / Diaphragm: EPDMWith power-saving circuitWithout sub-plateCE compliant-

92.08 €

1 26 Days Normally OpenOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: EPDMStandard TypeMaterial: PVDF / Diameter: G1/8CE compliant-

63.31 €

1 26 Days Normally OpenOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: EPDMStandard TypeWithout sub-plateCE compliant-

103.40 €

1 26 Days Normally OpenOthers-2Base Mounted Type24 V DC2.51,000Plate: PEEK / Diaphragm: FKMStandard TypeMaterial: PVDF / Diameter: Rc 1/8CE compliant-

71.92 €

1 26 Days Normally OpenOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: FKMStandard TypeWithout sub-plateCE compliant-

150.81 €

1 26 Days Normally OpenOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: KalrezStandard TypeMaterial: PVDF / Diameter: G1/8CE compliant-

123.94 €

1 26 Days Normally OpenOthers-2Base Mounted Type24 V DC2.5600Plate: PEEK / Diaphragm: KalrezStandard TypeWithout sub-plateCE compliant-

122.02 €

1 26 Days Normally OpenOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: KalrezStandard TypeWithout sub-plateCE compliant-

63.31 €

1 26 Days Normally OpenOthers-2Base Mounted Type12 V DC2.5300Plate: PEEK / Diaphragm: EPDMStandard TypeWithout sub-plateCE compliant-

122.03 €

1 26 Days Normally OpenOthers-2Base Mounted Type12 V DC2.5300Plate: PEEK / Diaphragm: KalrezStandard TypeWithout sub-plateCE compliant-

76.73 €

1 26 Days Normally OpenOthers--Base Mounted Type-Inrush: 4/Holding: 0.6600Plate: PEEK, Diaphragm: EPDMWith power-saving circuitWithout sub-plateCE-compliant product2

83.44 €

1 26 Days Normally OpenOthers-2Base Mounted Type24 V DCInrush: 4 / Holding: 0.6300Plate: PEEK / Diaphragm: FKMWith power-saving circuitWithout sub-plateCE compliant-

133.53 €

1 26 Days Normally OpenOthers-2Base Mounted Type24 V DCInrush: 4 / Holding: 0.6300Plate: PEEK / Diaphragm: KalrezWith power-saving circuitWithout sub-plateCE compliant-

65.19 €

1 26 Days UniversalTube ConnectionØ3.42Body Ported Type24 V DC2.5600Plate: PEEK / Diaphragm: EPDMStandard TypeWithout sub-plateCE compliant-

63.31 €

1 26 Days UniversalTube ConnectionØ3.42Body Ported Type24 V DC2.5300Plate: PEEK / Diaphragm: EPDMStandard TypeWithout sub-plateCE compliant-

122.03 €

1 26 Days UniversalTube ConnectionØ3.42Body Ported Type24 V DC2.5300Plate: PEEK / Diaphragm: KalrezStandard TypeWithout sub-plateCE compliant-

83.45 €

1 26 Days UniversalTube ConnectionØ3.4-Body Ported Type12 V DCInrush: 4/Holding: 0.6300Plate: PEEK, Diaphragm: FKMWith power-saving circuitWithout sub-plateCE-compliant product3

92.06 €

1 26 Days UniversalOthers-2Base Mounted Type24 V DC2.5300Plate: PEEK / Diaphragm: EPDMStandard TypeMaterial: PVDF / Diameter: Rc 1/8CE compliant-

94.00 €

1 26 Days UniversalOthers-2Base Mounted Type24 V DC2.5600Plate: PEEK / Diaphragm: EPDMStandard TypeMaterial: PVDF / Diameter: G1/8CE compliant-

94.81 €

1 26 Days UniversalOthers-2Base Mounted Type24 V DC2.51,000Plate: PEEK / Diaphragm: EPDMStandard TypeMaterial: PVDF / Diameter: G1/8CE compliant-

Loading...

  1. 1
  2. 2
  3. Next >>

Basic information

Type Electromagnetic Type Applicable Fluid Air / Water / Chemical Operating Environment Standard
Driving Type Linear Motion Type Operating Temperature Range(℃) 0::50 Body Material Resin
Insulation Class B

Configure

Clear all

97Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Switching Type

    • Normally Closed
    • Normally Open
    • Universal

    Clear

  • Connection Type

    • Tube Connection
    • Others

    Clear

  • Tube Diameter

    • Ø3.4

    Clear

  • Orifice Diameter(mm)

    • 2

    Clear

  • Pipe opening type (details)

    • Base Mounted Type
    • Body Ported Type

    Clear

  • Voltage

    • 12 V DC
    • 24 V DC

    Clear

  • Power consumption(W)

    • 2.5
    • Inrush: 4 / Holding: 0.6
    • Inrush: 4/Holding: 0.6

    Clear

  • Lead wire length(mm)

    • 1,000
    • 300
    • 600

    Clear

  • Liquid-contacting parts material

    • Plate: PEEK / Diaphragm: EPDM
    • Plate: PEEK / Diaphragm: FKM
    • Plate: PEEK / Diaphragm: Kalrez
    • Plate: PEEK, Diaphragm: EPDM
    • Plate: PEEK, Diaphragm: FKM
    • Plate: PEEK, Diaphragm: Kalrez (R)

    Clear

  • Functions

    • Standard Type
    • With power-saving circuit

    Clear

  • Subplate specifications

    • Material: PVDF / Diameter: G1/8
    • Material: PVDF / Diameter: NPT 1/8
    • Material: PVDF / Diameter: Rc 1/8
    • Without sub-plate

    Clear

  • CE compliant

    • CE-compliant product
    • CE compliant

    Clear

  • Number of ports

    • 2
    • 3

    Clear

  • Type

    • LVM202R
    • LVM205R
    • LVM20R1
    • LVM20R3
    • LVM20R4

    Clear

Filter by standard shipping days

    • All
    • 4 Days or Less
    • 26 Days or Less
    • 39 Days or Less
    • 86 Days or Less
