4.5-Stage Bellows Pad ZP2 Series

4.5-Stage Bellows Pad ZP2 Series

SMC

SMC

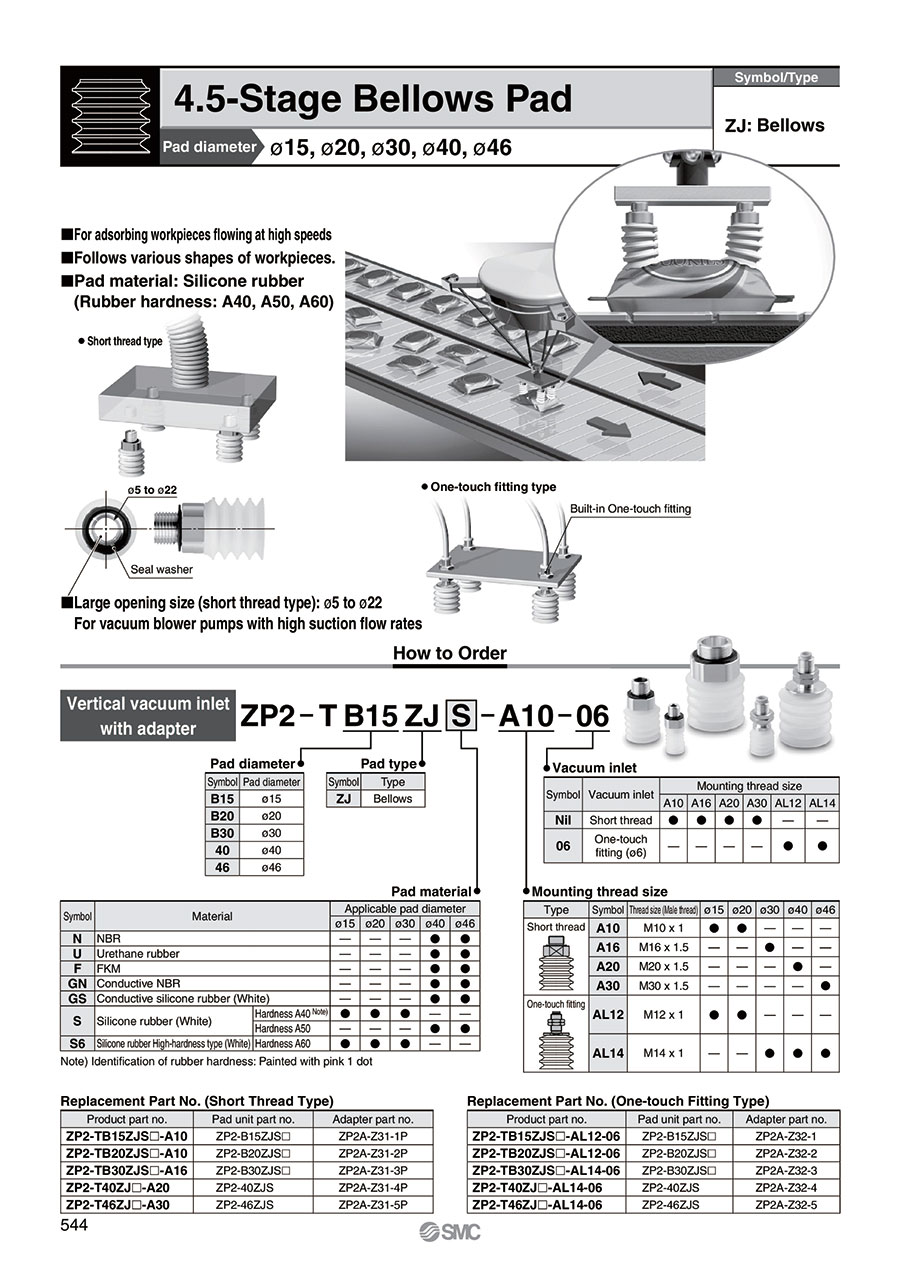

[Features]
· Suitable for suction of workpieces flowing at high speed
· Suitable for workpieces of various shapes
· Pad materials: silicone rubber (hardness: A40, A50 and A60)
· Large opening size (short thread type) of ø5 to ø22, suitable for vacuum blower pumps with high suction flow rates.

(i)Remark

  • The product images may be representative images only. Please refer to the manufacturer's catalog for details of the types available

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
ZP2-40ZJF
ZP2-40ZJGN
ZP2-40ZJGS
ZP2-40ZJN
ZP2-40ZJS
ZP2-40ZJU
ZP2-46ZJF
ZP2-46ZJGS
ZP2-46ZJN
ZP2-46ZJS
ZP2-46ZJU
ZP2-B15ZJS
ZP2-B15ZJS6
ZP2-B20ZJS
ZP2-B20ZJS6
ZP2-B30ZJS
ZP2-B30ZJS6
ZP2-T40ZJGN-A20
ZP2-T40ZJN-A20
ZP2-T40ZJN-AL14-06
ZP2-T40ZJS-A20
ZP2-T40ZJS-AL14-06
ZP2-T46ZJS-A30
ZP2-T46ZJS-AL14-06
ZP2-T46ZJU-AL14-06
ZP2-TB15ZJS6-A10
ZP2-TB15ZJS6-AL12-06
ZP2-TB15ZJS-A10
ZP2-TB15ZJS-AL12-06
ZP2-TB20ZJS6-A10
ZP2-TB20ZJS6-AL12-06
ZP2-TB20ZJS-A10
ZP2-TB20ZJS-AL12-06
ZP2-TB30ZJS6-A16
ZP2-TB30ZJS6-AL14-06
ZP2-TB30ZJS-A16
ZP2-TB30ZJS-AL14-06
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Pad type Rubber Group Material Vacuum Outlet Port Usage Environment Pad diameter
(ø) 		Vacuum entry port thread diameter Mounting connection screw Type

25.85 €

1 26 Days Standard / Pad OnlyFluororubber-Standard / Heat Resistant / Chemical Resistant40--Pad unit

13.79 €

1 26 Days Standard / Pad Only[Nitrile Rubber] Conductive NBR-Standard / Static Diffusion / Oil Resistant40--Pad unit

14.84 €

1 26 Days Standard / Pad Only[Silicone Rubber] Conductive Silicone Rubber-Standard / Static Diffusion / Cold Resistant / Heat Resistant40--Pad unit

12.74 €

1 4 Days Standard / Pad Only[Nitrile Rubber] NBR-Standard / Oil Resistant40--Pad unit

13.35 €

1 39 Days Standard / Pad Only[Silicone Rubber] Silicone Rubber-Standard / Cold Resistant / Heat Resistant40--Pad unit

14.60 €

1 26 Days Standard / Pad OnlyUrethane Rubber-Standard40--Pad unit

25.85 €

1 26 Days Standard / Pad OnlyFluororubber-Standard / Heat Resistant / Chemical Resistant46--Pad unit

14.84 €

1 26 Days Standard / Pad Only[Silicone Rubber] Conductive Silicone Rubber-Standard / Static Diffusion / Cold Resistant / Heat Resistant46--Pad unit

12.74 €

1 4 Days Standard / Pad Only[Nitrile Rubber] NBR-Standard / Oil Resistant46--Pad unit

13.35 €

1 39 Days Standard / Pad Only[Silicone Rubber] Silicone Rubber-Standard / Cold Resistant / Heat Resistant46--Pad unit

14.60 €

1 26 Days Standard / Pad OnlyUrethane Rubber-Standard46--Pad unit

8.55 €

1 26 Days Standard / Pad Only[Silicone Rubber] Silicone Rubber-Standard / Cold Resistant / Heat Resistant15--Pad unit

8.55 €

1 26 Days Standard / Pad Only[Silicone Rubber] Silicone Gum, High Hardness-Standard / Cold Resistant / Heat Resistant15--Pad unit

8.55 €

1 26 Days Standard / Pad Only[Silicone Rubber] Silicone Rubber-Standard / Cold Resistant / Heat Resistant20--Pad unit

8.55 €

1 26 Days Standard / Pad Only[Silicone Rubber] Silicone Gum, High Hardness-Standard / Cold Resistant / Heat Resistant20--Pad unit

10.85 €

1 26 Days Standard / Pad Only[Silicone Rubber] Silicone Rubber-Standard / Cold Resistant / Heat Resistant30--Pad unit

10.85 €

1 26 Days Standard / Pad Only[Silicone Rubber] Silicone Gum, High Hardness-Standard / Cold Resistant / Heat Resistant30--Pad unit

26.53 €

1 26 Days Standard / Holder Set[Nitrile Rubber] Conductive NBRThreadsStandard / Static Diffusion / Oil Resistant40M20Male thread M20 × 1.5With adapter

29.18 €

1 26 Days Standard / Holder Set[Nitrile Rubber] NBRThreadsStandard / Oil Resistant40M20Male thread M20 × 1.5With adapter

30.73 €

1 26 Days Standard / Holder Set[Nitrile Rubber] NBRSingle-Action CouplingStandard / Oil Resistant40ø6Male thread M14 × 1With adapter

29.84 €

1 4 Days Standard / Holder Set[Silicone Rubber] Silicone RubberThreadsStandard / Cold Resistant / Heat Resistant40M20Male thread M20 × 1.5With adapter

31.39 €

1 4 Days Standard / Holder Set[Silicone Rubber] Silicone RubberSingle-Action CouplingStandard / Cold Resistant / Heat Resistant40ø6Male thread M14 × 1With adapter

32.85 €

1 4 Days Standard / Holder Set[Silicone Rubber] Silicone RubberThreadsStandard / Cold Resistant / Heat Resistant46M30Male thread M30 × 1.5With adapter

34.39 €

1 4 Days Standard / Holder Set[Silicone Rubber] Silicone RubberSingle-Action CouplingStandard / Cold Resistant / Heat Resistant46ø6Male thread M14 × 1With adapter

35.85 €

1 26 Days Standard / Holder SetUrethane RubberSingle-Action CouplingStandard46ø6Male thread M14 × 1With adapter

20.53 €

1 26 Days Standard / Holder Set[Silicone Rubber] Silicone Gum, High HardnessThreadsStandard / Cold Resistant / Heat Resistant15M10Male thread M10 × 1With adapter

22.06 €

1 26 Days Standard / Holder Set[Silicone Rubber] Silicone Gum, High HardnessSingle-Action CouplingStandard / Cold Resistant / Heat Resistant15ø6Male thread M12 × 1With adapter

20.53 €

1 4 Days Standard / Holder Set[Silicone Rubber] Silicone RubberThreadsStandard / Cold Resistant / Heat Resistant15M10Male thread M10 × 1With adapter

22.06 €

1 4 Days Standard / Holder Set[Silicone Rubber] Silicone RubberSingle-Action CouplingStandard / Cold Resistant / Heat Resistant15ø6Male thread M12 × 1With adapter

20.53 €

1 26 Days Standard / Holder Set[Silicone Rubber] Silicone Gum, High HardnessThreadsStandard / Cold Resistant / Heat Resistant20M10Male thread M10 × 1With adapter

22.06 €

1 26 Days Standard / Holder Set[Silicone Rubber] Silicone Gum, High HardnessSingle-Action CouplingStandard / Cold Resistant / Heat Resistant20ø6Male thread M12 × 1With adapter

20.53 €

1 4 Days Standard / Holder Set[Silicone Rubber] Silicone RubberThreadsStandard / Cold Resistant / Heat Resistant20M10Male thread M10 × 1With adapter

22.06 €

1 4 Days Standard / Holder Set[Silicone Rubber] Silicone RubberSingle-Action CouplingStandard / Cold Resistant / Heat Resistant20ø6Male thread M12 × 1With adapter

24.39 €

1 26 Days Standard / Holder Set[Silicone Rubber] Silicone Gum, High HardnessThreadsStandard / Cold Resistant / Heat Resistant30M16Male thread M16 × 1.5With adapter

25.85 €

1 26 Days Standard / Holder Set[Silicone Rubber] Silicone Gum, High HardnessSingle-Action CouplingStandard / Cold Resistant / Heat Resistant30ø6Male thread M14 × 1With adapter

24.39 €

1 4 Days Standard / Holder Set[Silicone Rubber] Silicone RubberThreadsStandard / Cold Resistant / Heat Resistant30M16Male thread M16 × 1.5With adapter

25.85 €

1 4 Days Standard / Holder Set[Silicone Rubber] Silicone RubberSingle-Action CouplingStandard / Cold Resistant / Heat Resistant30ø6Male thread M14 × 1With adapter
