XM and XY, High Vacuum Valves, Stainless Steel, Angle and In-line Types
[Features]
· Bellows type is particulate-free and cleaned.
· Low actuation torque (0.5 N·m or less).
· Spring provides a standard sealing load.
· Handle height remains the same regardless of whether valve is open or closed.
· Equipped as standard with an indicator for confirming if the valve is open or closed.
· Body material: SCS13 (SUS304 equivalent).
· Precision-cast single-piece structure which helps prevent gas accumulation.
· The XM Series is interchangeable with XL Series aluminum high vacuum angle valves.
(i)Remark
- ■ SMC Product Line
Webpages for products currently without individual pages on this site will be released on an ad-hoc basis.
■ Products Planned for Online Release
Air cylinder-related product pages will be released on this site on an ad-hoc basis.
CQ2/MG types, etc., are already available.
*Vacuum equipment, FRLs, solenoid valves, etc., will also be released on dedicated pages on this site on an ad-hoc basis.
*The information above is correct as of December 2018. - The product images may be representative images only. Refer to the manufacturer's catalog for shape details.

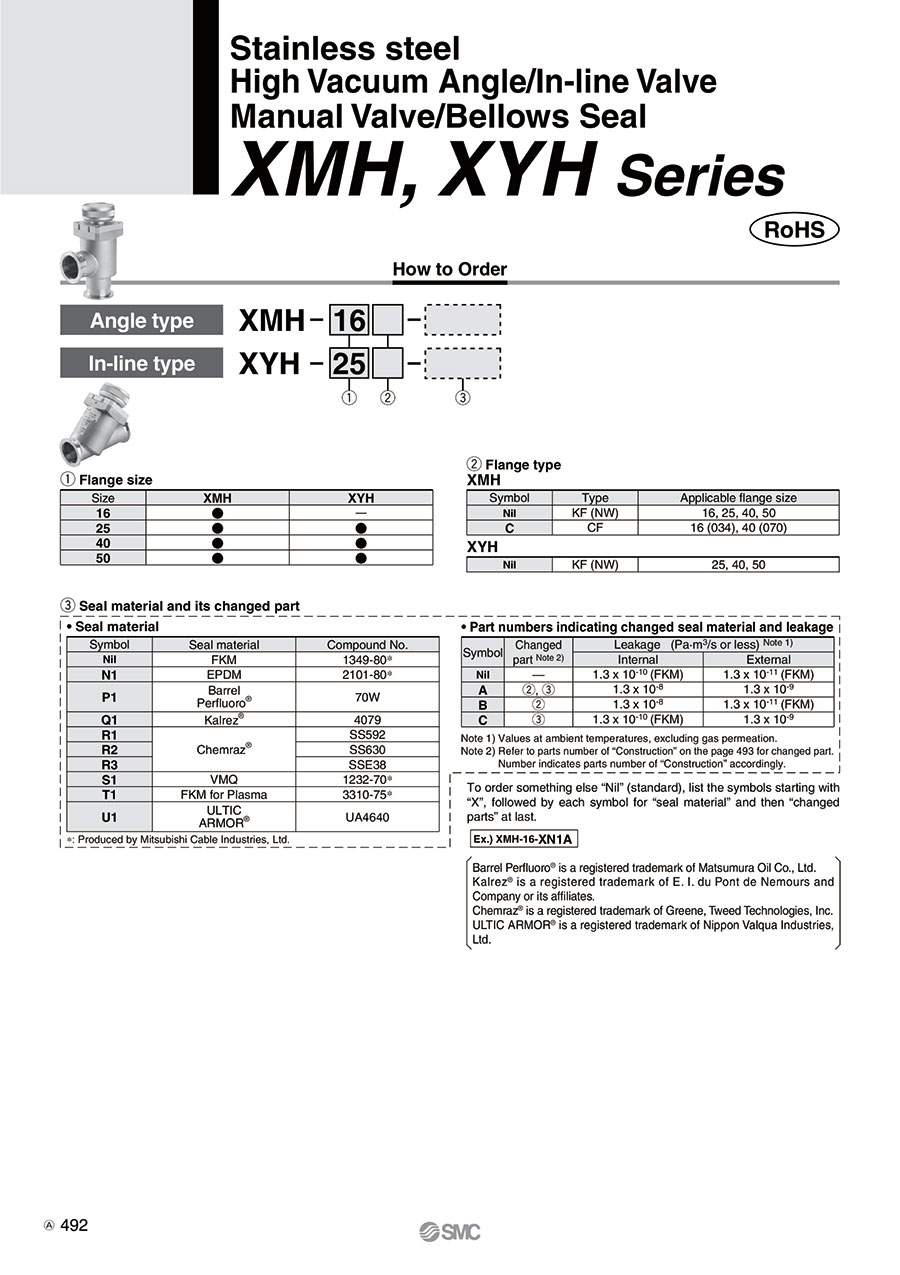

Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| XMH-16-XN1A |
| XMH-16-XQ1A |
| XMH-16C-XQ1A |
| XMH-25-XN1A |
| XMH-25-XQ1A |
| XMH-25-XT1A |
| XMH-40 |
| XMH-40-XN1A |
| XMH-40-XT1A |
| XMH-40C-XN1A |
| XYH-25 |
| XYH-25-XN1A |
| XYH-40-XQ1A |
| XYH-50-XQ1A |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Flange Type | Flange Calls | Sonic Conductance | Valve Type | Seal material | Amount of leakage (Pa·m3/s) | Seal Change Location | |
|---|---|---|---|---|---|---|---|---|---|---|---|
545.09 € | 1 | 26 Days | KF | 16 | 5 | Angle type | EPDM 2101-80 | Internal: 1.3 × 10-8, External: 1.3 × 10-9 | Valve seal / external seal | ||
687.29 € | 1 | 26 Days | KF | 16 | 5 | Angle type | Kalrez 4079 | Internal: 1.3 × 10-8, External: 1.3 × 10-9 | Valve seal / external seal | ||
754.74 € | 1 | 26 Days | CF | 16 | 5 | Angle type | Kalrez 4079 | Internal: 1.3 × 10-8, External: 1.3 × 10-9 | Valve seal / external seal | ||
582.99 € | 1 | 26 Days | KF | 25 | 14 | Angle type | EPDM 2101-80 | Internal: 1.3 × 10-8, External: 1.3 × 10-9 | Valve seal / external seal | ||
806.14 € | 1 | 26 Days | KF | 25 | 14 | Angle type | Kalrez 4079 | Internal: 1.3 × 10-8, External: 1.3 × 10-9 | Valve seal / external seal | ||
652.27 € | 1 | 26 Days | KF | 25 | 14 | Angle type | FKM for Plasma 3310-75 | Internal: 1.3 × 10-8, External: 1.3 × 10-9 | Valve seal / external seal | ||
898.19 € | 1 | 4 Days | KF | 40 | 45 | Angle type | FKM 1349-80 | Internal: 1.3 × 10-10, External: 1.3 × 10-11 | None | ||
900.06 € | 1 | 26 Days | KF | 40 | 45 | Angle type | EPDM 2101-80 | Internal: 1.3 × 10-8, External: 1.3 × 10-9 | Valve seal / external seal | ||
976.04 € | 1 | 26 Days | KF | 40 | 45 | Angle type | FKM for Plasma 3310-75 | Internal: 1.3 × 10-8, External: 1.3 × 10-9 | Valve seal / external seal | ||
968.14 € | 1 | 26 Days | CF | 40 | 45 | Angle type | EPDM 2101-80 | Internal: 1.3 × 10-8, External: 1.3 × 10-9 | Valve seal / external seal | ||
691.24 € | 1 | 4 Days | KF | 25 | 14 | In-line type | FKM 1349-80 | Internal: 1.3 × 10-10, External: 1.3 × 10-11 | None | ||
691.79 € | 1 | 26 Days | KF | 25 | 14 | In-line type | EPDM 2101-80 | Internal: 1.3 × 10-8, External: 1.3 × 10-9 | Valve seal / external seal | ||
1,274.31 € | 1 | 26 Days | KF | 40 | 45 | In-line type | Kalrez 4079 | Internal: 1.3 × 10-8, External: 1.3 × 10-9 | Valve seal / external seal | ||
1,655.66 € | 1 | 26 Days | KF | 50 | 80 | In-line type | Kalrez 4079 | Internal: 1.3 × 10-8, External: 1.3 × 10-9 | Valve seal / external seal |
Loading...
Basic information
| Type | Manual vacuum valve | Application | Single Item Operating | Installation method | Direct |
|---|---|---|---|---|---|
| Number of Ports | 2-port valve | Switching Type | 2-position Normally Closed | Pipe Port Type | Flange |
| Seal Type | Bellows seal |
Configure
Basic Attributes
-
Flange Type
- KF
- CF
-
Flange Calls
- 16
- 25
- 40
- 50
-
Sonic Conductance
-
Valve Type
- Angle type
- In-line type
-
Seal material
-
Amount of leakage(Pa·m3/s)
- Internal: 1.3 × 10-10, External: 1.3 × 10-11
- Internal: 1.3 × 10-8, External: 1.3 × 10-9
-
Seal Change Location
-
Type
- XMH
- XYH
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
- 26 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
