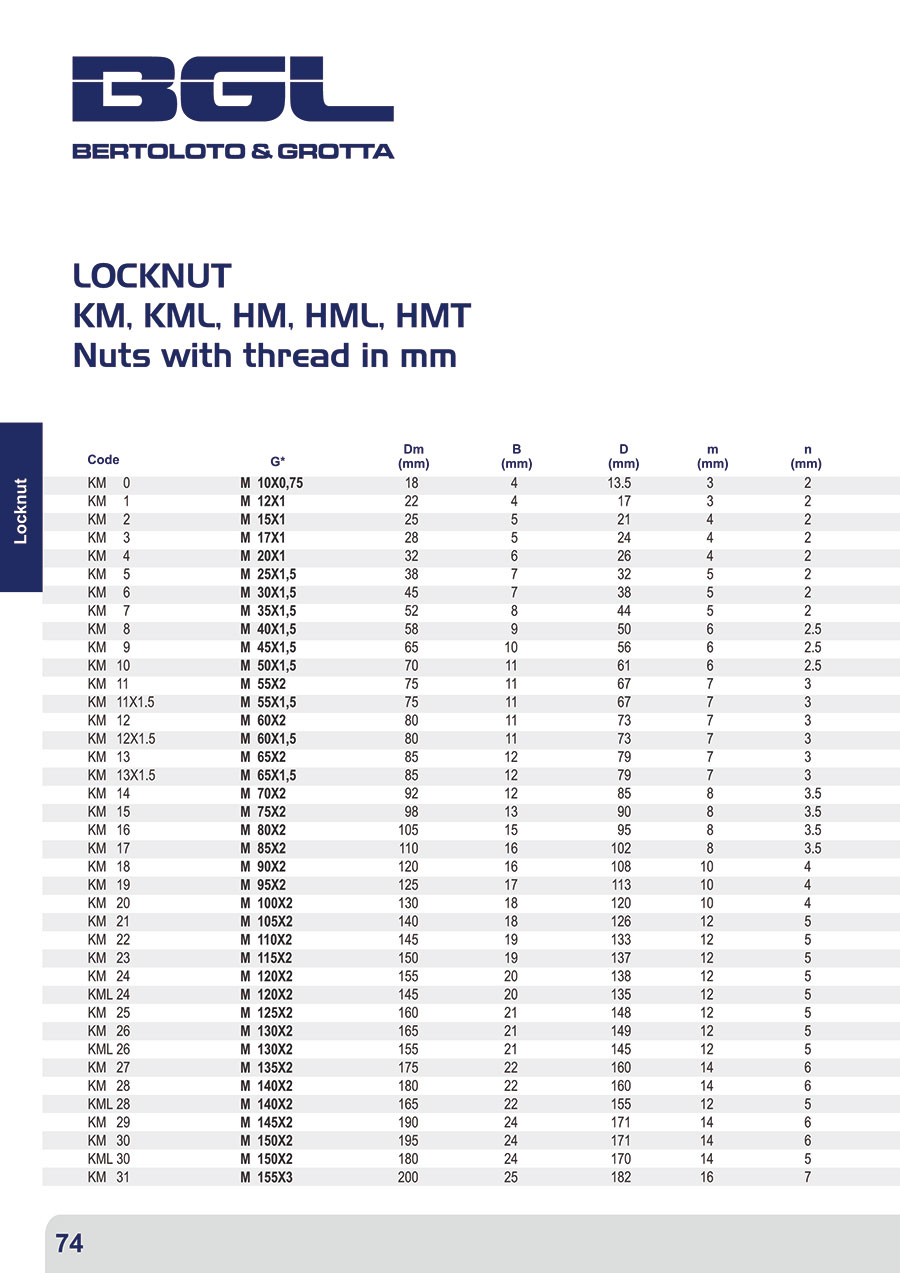

Lock Nuts - Series KML
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| KML24 |
| KML26 |
| KML28 |
| KML30 |
| KML32 |
| KML34 |
| KML36 |
| KML38 |
| KML40 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Thread Nominal M | Outer Diameter Dm (mm) | Thickness B (mm) | D (mm) | m (mm) | n (mm) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
32.93 € | 1 | 21 Days | M120x2 | 145 | 20 | 135 | 12 | 5 | 0.685 | ||
36.85 € | 1 | 21 Days | M130x2 | 155 | 21 | 145 | 12 | 5 | 0.776 | ||
52.18 € | 1 | 21 Days | M140x2 | 165 | 22 | 155 | 12 | 5 | 0.875 | ||
57.85 € | 1 | 21 Days | M150x2 | 180 | 24 | 170 | 14 | 5 | 1.25 | ||
78.25 € | 1 | 21 Days | M160x3 | 190 | 25 | 180 | 14 | 5 | 1.408 | ||
86.18 € | 1 | 21 Days | M170x3 | 200 | 26 | 190 | 16 | 5 | 1.554 | ||
97.53 € | 1 | 4 Days | M180x3 | 210 | 27 | 200 | 16 | 5 | 1.682 | ||
107.15 € | 1 | 21 Days | M190x3 | 220 | 28 | 210 | 16 | 5 | 1.848 | ||
118.53 € | 1 | 21 Days | M200x3 | 240 | 29 | 222 | 18 | 8 | 2.654 |
Loading...
Basic information
| Type | Lock Nuts | Shape | Round Shape | Surface Treatment | None |
|---|
Configure
Basic Attributes
-
Thread Nominal M
-
Outer Diameter Dm(mm)
-
Thickness B(mm)
-
D(mm)
-
m(mm)
-
n(mm)
-
Mass(kg)
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
- 21 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
